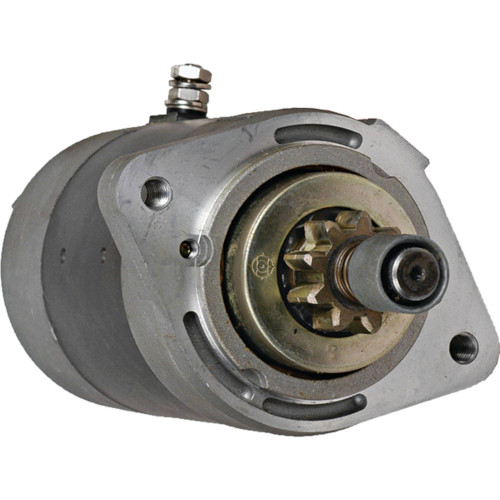

NEW Starter for SUZUKI Engine – Marine Outboard; 410-44068, S114-436, 31100-94702; LESTER 19705
$109.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Direct Drive (DD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
1.138″ |
| GEAR OD |
28.900mm |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE ID 2 |
M8x1.25 |
| MOUNT HOLE 2 TYPE |
Threaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
S114-436, SHI0162 |
| EMP |
4-6429 |
| HITACHI |
S114-436 |
| J&N |
410-44068 |
| LESTER |
19705 |
| MERCURY MARINE |
8M6007395 |
| SIERRA MARINE |
18-6429 |
| SUZUKI |
31100-94702 |
Applications
| Make |
Model |
Engine |
Years |
| Suzuki |
DT55CHL |
54CI |
1986 – 1987 |
| Suzuki |
DT55CRL |
54CI |
1986 – 1990 |
| Suzuki |
DT55CRS |
54CI |
1986 – 1987 |
| Suzuki |
DT55ECL |
54CI |
1985 |
| Suzuki |
DT55HT |
54CI |
1988 – 1990 |
| Suzuki |
DT55TCL |
54CI |
1987 – 1997 |
| Suzuki |
DT55TCS |
54CI |
1987 |
| Suzuki |
DT65CL |
54CI |
1985 |
| Suzuki |
DT65CRL |
54CI |
1986 – 1990 |
| Suzuki |
DT65CRS |
54CI |
1986 – 1987 |
| Suzuki |
DT65HTCL |
54CI |
1989 – 1990 |
| Suzuki |
DT65TCL |
54CI |
1986 – 1997 |
| Suzuki |
DT65TCS |
54CI |
1986 – 1987 |
