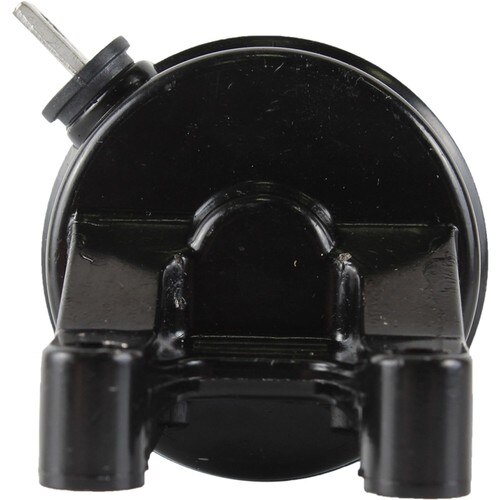

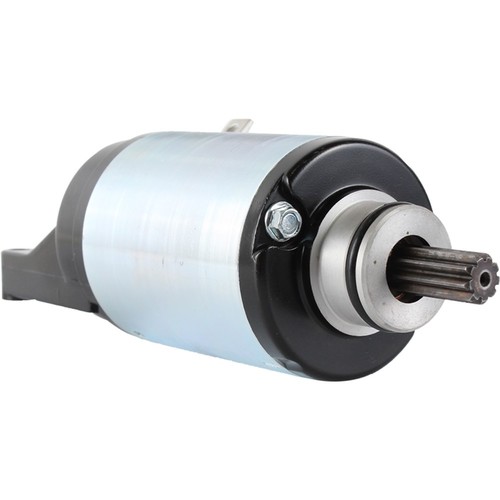

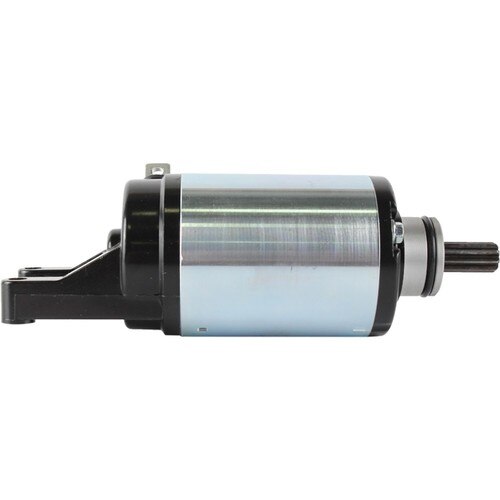

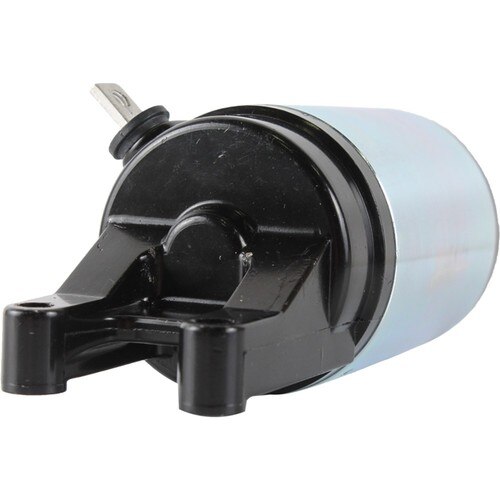

NEW Starter for SUZUKI GSF400, GSF600 & GSX750 Motorcycles; 410-52451, 31100-08F00, 31100-10D00, 31100-32C11; LESTER 18743, 18744, 18781
$159.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| POWER |
0.500 kw |
| HP |
0.671 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.453″ |
| GEAR OD |
11.500mm |
| MOUNT HOLE ID 1 |
7mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0249, SND0232 |
| J & N |
410-52451 |
| LESTER |
8743, 18744, 18781 |
| DENSO |
128000-679, 128000-6790, 128000-6791, 128000-759, 128000-7590, 228000-705, 228000-7050 |
| EMS |
SS-26 |
| HI LEVEL |
219516 |
| MINNPAR |
57-3155 |
| STOCKERS STARTERS |
SS-26 |
| SUZUKI |
31100-08F00, 31100-10D00, 31100-32C11 |
| WAI |
18743N |
Applications
| Make |
Model |
Engine |
Years |
| Suzuki |
GSF400 Bandit |
398cc |
1991 – 1993 |
| Suzuki |
GSF600S Bandit |
599cc |
1996 – 2003 |
| Suzuki |
GSX600F Katana |
599cc |
1998 – 2006 |
| Suzuki |
GSX750F Katana |
748cc |
1998 – 2005 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 1996 - 1999 |
SUZUKI |
GSF600S Bandit |
599cc |
| 1998 - 2000 |
SUZUKI |
GSX600F Katana |
599cc |
