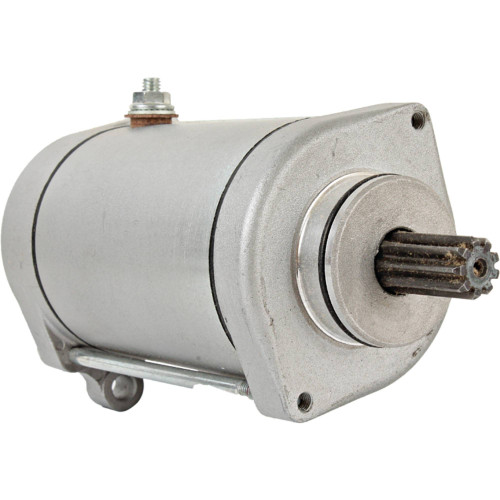

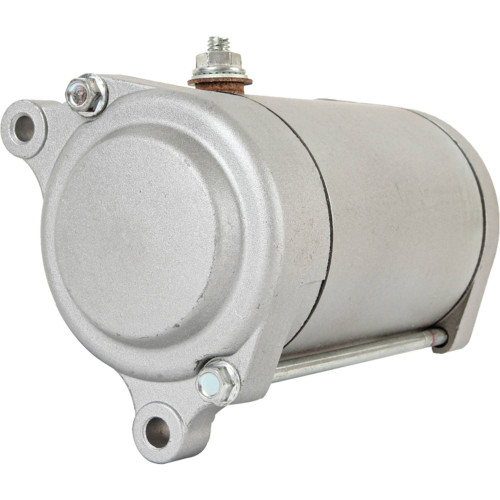

NEW Starter for SUZUKI VL1500 & VS1400 GLP Motorcycles; 410-54201, SM13203, 31100-10F00, 31100-38B00, 31100-38B01, 31100-38B02; LESTER 18786
$144.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| GEAR OD | 0.535″ |
| GEAR OD | 13.600mm |
| LENGTH | 135 mm |
| LENGTH | 5.315″ |
| MOUNT HOLE ID 1 | 6.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 3.173″ |
| MOUNTING EAR DISTANCE 1 | 80.600mm |
| REGISTRY OD | 1.567″ |
| REGISTRY OD | 39.800mm |
| WARRANTY | 1 Year |
| M6-1.0 B+ Stud |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SMU0187 |
| LESTER | 18786 |
| MITSUBA | SM13203 |
| SUZUKI | 31100-10F00, 31100-38B00, 31100-38B01, 31100-38B02 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| SUZUKI | VL1500 C90 Boulevard Cruiser | 1462cc | 2005 – 2009 |
| SUZUKI | VL1500 Intruder | 1462cc | 1998 – 2004 |
| SUZUKI | VL1500T C90T Boulevard Touring | 1462cc | 2005 – 2009 |
| SUZUKI | VS1400GLP Intruder | 1360cc | 1987 – 2004 |
| SUZUKI | VS1400GLP S83 Boulevard Cruiser | 1360cc | 2005 – 2009 |
