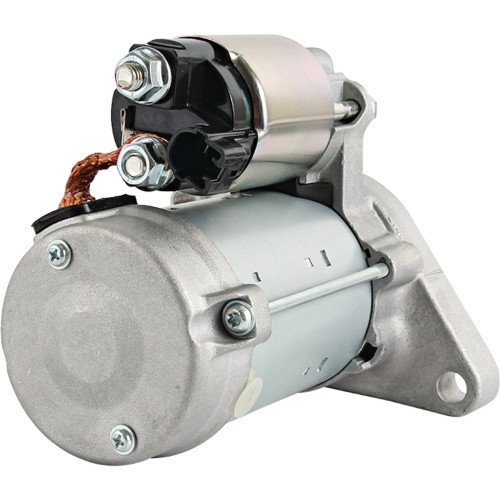

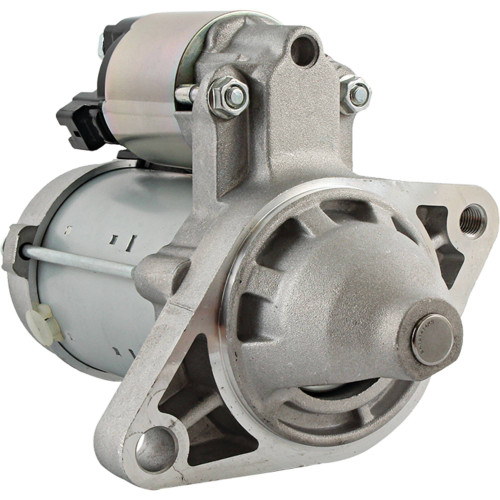

NEW Starter for TOYOTA Corolla & OTH Applications; 410-52518, 428000-4300, 428000-4590, 428000-9820, 428000-9830; LESTER 19049, 19313
$174.99
Specifications
| UNIT/PART TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Gear Reduction (PMGR) |
| VOLT | 12 |
| POWER | 1.500 kw |
| HP | 2.012 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 9 |
| LENGTH | 149.500 mm |
| LENGTH | 5.886″ |
| MOUNT HOLE ID 1 | M10x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR DISTANCE 1 | 122mm |
| MOUNTING EAR DISTANCE 1 | 4.803″ |
| REGISTRY OD | 2.913″ |
| REGISTRY OD | 74mm |
| WARRANTY | 1 Year |
| M8 B+ & Motor Studs, Blade S Terminal Inside Plug |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SND0655 |
| DENSO | 428000-4300, 428000-4590, 428000-9820, 428000-9830 |
| GENERAL MOTORS | 88975514 |
| J&N ELECTRICAL PRODUCTS | 410-52518 |
| LESTER | 19049, 19313 |
| TOYOTA | 28100-0T050, 28100-0T051, 28100-37050, 28100-37051, 28100-37052 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| Pontiac | VIBE | 1.8 | 2009 |
| Pontiac | Vibe | 1795cc, 1.8L L4 | 2009 |
| Pontiac | Vibe | 1798cc, 1.8L L4 | 2009, 2010 |
| Toyota | COROLLA | 1.8 | 2009, 2010, 2011 |
| Toyota | COROLLA | 1.8 | 2009, 2010, 2011, 2012, 2013 |
| Toyota | Corolla | 1794cc, 1.8L L4 1ZZFE | 2009 |
| Toyota | Corolla | 1794cc, 1.8L L4 | 2009 |
| Toyota | Corolla | 1794cc, 1.8L L4 | 2009, 2009, 2010, 2010, 2011, 2011 |
| Toyota | Corolla | 1794cc, 1.8L L4 | 2010, 2011 |
| Toyota | Corolla | 1798cc, 1.8L L4 2ZRFE | 2009, 2010 |
| Toyota | Corolla | 1798cc, 1.8L L4 | 2011 |
| Toyota | Corolla | 1798cc, 1.8L L4 | 2011, 2012 |
| Toyota | MATRIX | 1.8 | 2009, 2010, 2011, 2012 |
| Toyota | Matrix | 1795cc, 1.8L L4 | 2009, 2010, 2011 |
| Toyota | Matrix | 1798cc, 1.8L L4 2ZRFE | 2009, 2010, 2011 |
