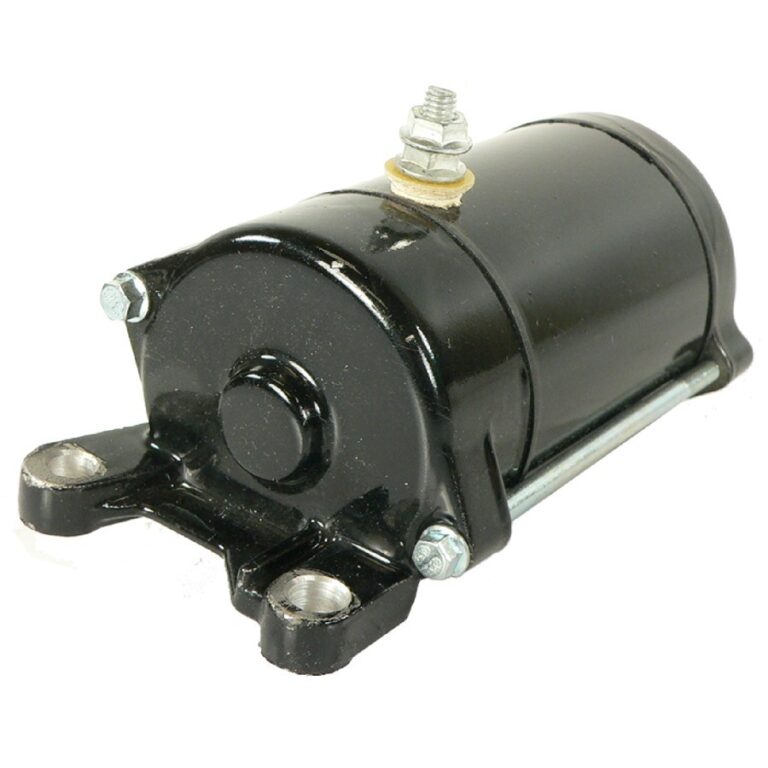

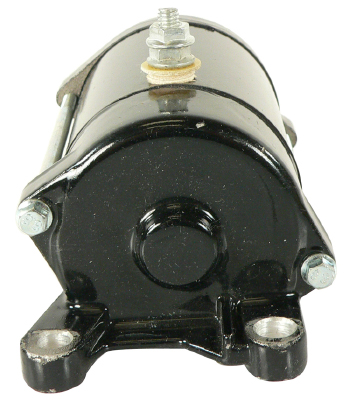

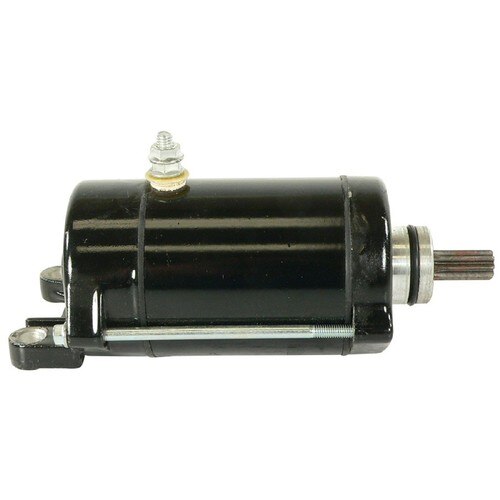

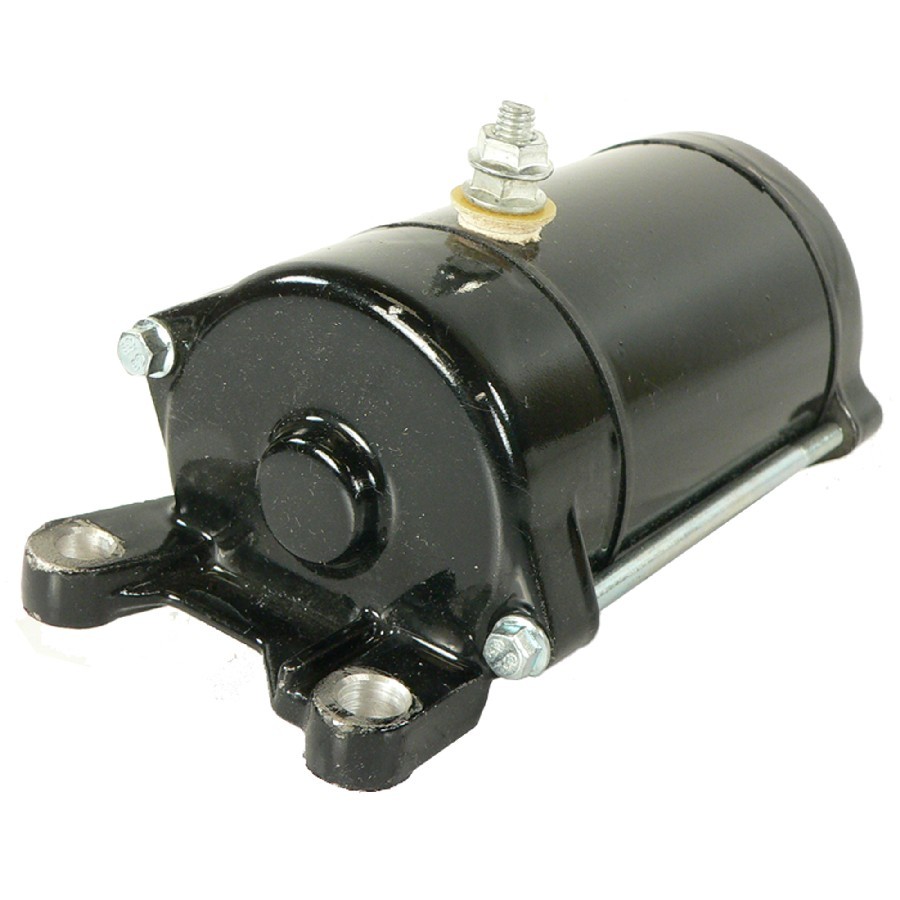

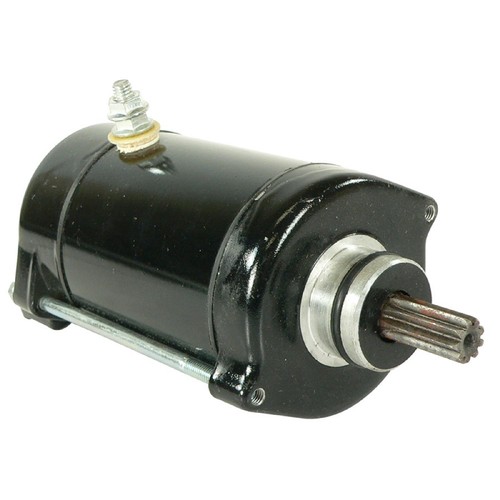

August 1, 2020NEW Starter for YAMAHA EXS 1200 Exciter, GP 1200 Wave Runner, XRT 1200 XR 1800 & OTH Models; 410-54002, 63M81800, 63M81800-00, 63M81800-00-00, SM13453; LESTER 18421
$139.99
Specifications
UNIT TYPE | Starter |
CRITICAL NOTE | May Encounter Installation Issues with 2000-2004 Yamaha WaveRunner using the 784cc Engine |
ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
FAMILY | Mitsuba SM13 |
VOLT | 12 |
ROTATION DIRECTION | Clockwise |
NUMBER OF TEETH | 9 |
GEAR OD | 0.453″ |
GEAR OD | 11.500mm |
MOUNT HOLE ID 1 | 8.600mm |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE ID 2 | 8.600mm |
MOUNT HOLE 2 TYPE | Unthreaded |
REGISTRY OD | 1.180″ |
REGISTRY OD | 30mm |
WARRANTY | 1 Year |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | SMU0035 |
EMP | 4-6908 |
J&N ELECTRICAL PRODUCTS | 410-54002 |
LESTER | 18421 |
MITSUBA | SM13453 |
WAI | 92805 |
WAI (OLD) | 92805 |
WILSON | 91-26-2032 |
WILSON SMALL ENGINE | 71-26-18421 |
YAMAHA | 63M81800, 63M81800-00, 63M81800-00-00 |
Applications
Part fit
MAKE | MODEL | ENGINE | YEAR |
Yamaha | EXS 1200 Exciter | 1998, 1999 | |
Yamaha | EXS1200 Exciter | 1998, 1999 | |
Yamaha | EXT 1100 | 1996, 1997, 1998, 1999 | |
Yamaha | EXT 1200 Exciter | 1998, 1999 | |
Yamaha | EXT1100 Exciter | 1996, 1997, 1998 | |
Yamaha | EXT1100 Exciter | 1996, 1998 | |
Yamaha | EXT1200 Exciter | 1998, 1999 | |
Yamaha | GP 1200 Wave Runner | 1997, 1998, 1999, 2000, 2001, 2002 | |
Yamaha | GP 1300 Wave Runner | 2003, 2004, 2005 | |
Yamaha | GP 1300 Wave Runner | 2003, 2004, 2005, 2006, 2007, 2008 | |
Yamaha | GP 800 Wave Runner | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 | |
Yamaha | LST 1200 AR210 | 2003, 2004, 2005 | |
Yamaha | LST 1200 LS 2000 | 2000, 2001, 2002, 2003, 2004, 2005 | |
Yamaha | LST 1200 LX 210 | 2003, 2004, 2005 | |
Yamaha | LST1200 AR210 | 135HP 3-Cyl 2-Stroke, Water Coole | 1999, 2000, 2001, 2002, 2003, 2004, 2005 |
Yamaha | RA 1100 Wave Raider | 1995, 1996 | |
Yamaha | SUV 1200 Wave Runner | 1999, 2000, 2001, 2002, 2003, 2004 | |
Yamaha | SV 1200 Wave Runner | 1999, 2000, 2001, 2002, 2003, 2004 | |
Yamaha | WVT 1100 Wave Venture | 1996, 1997 | |
Yamaha | XA 1200A Wave Runner XLT1200 | 2001, 2002, 2003, 2004, 2005 | |
Yamaha | XA 800 Wave Runner | 2000, 2001 | |
Yamaha | XA 800A Wave Runner | 2002, 2003, 2004 | |
Yamaha | XL 1200 Wave Runner | 1998, 1999, 2000 | |
Yamaha | XL 800 Wave Runner | 2000, 2001 | |
Yamaha | XLT 1200 Wave Runner | 2001, 2002, 2003, 2004, 2005 | |
Yamaha | XLT 800 Wave Runner | 2002, 2003, 2004 | |
Yamaha | XRT 1200 XR 1800 | 2000, 2001 | |
Yamaha | XRT1200 | 2000, 2001 |
