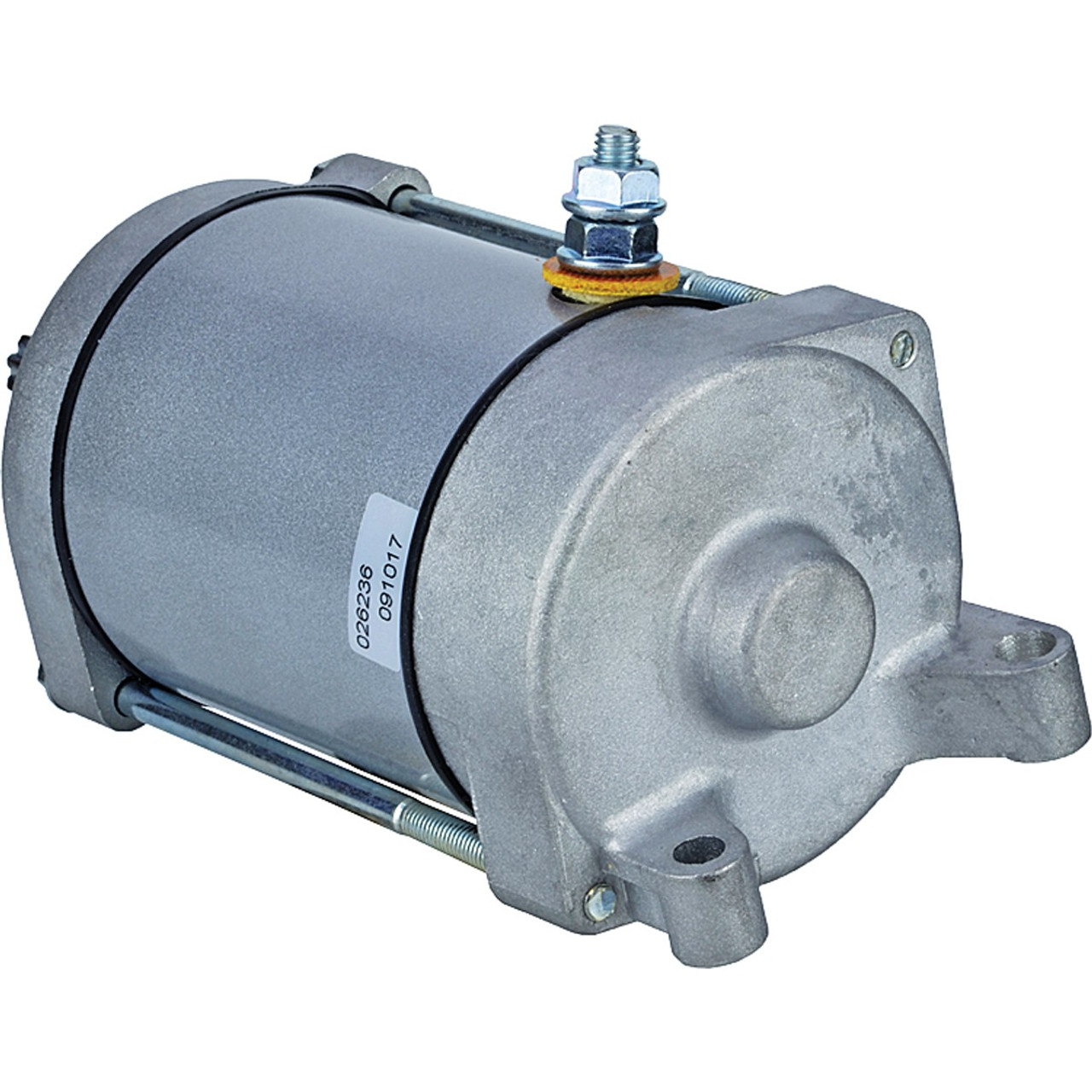

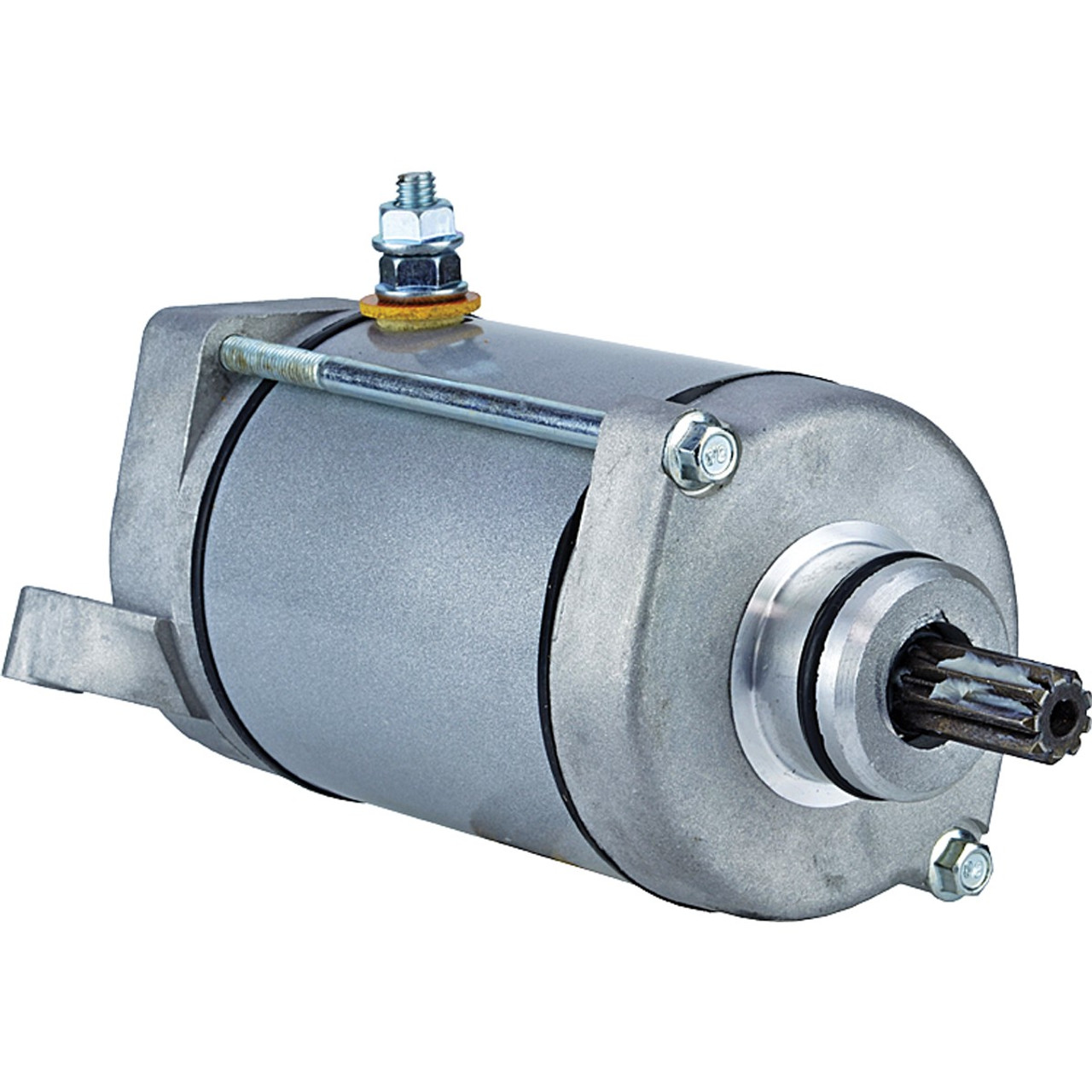

NEW Starter for YAMAHA FZ 1, FZS 1 S & YZF-R1 Motorcycles; 410-54213, 4XV81800-00-00, 4XV81890-00-00; LESTER 18764, 18770
$109.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| VOLT |
12 |
| ROTATION DIRECTION |
Counter Clockwise |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.469″ |
| GEAR OD |
11.900mm |
| LENGTH |
170 mm |
| LENGTH |
6.693″ |
| MOUNT HOLE ID 1 |
6.300mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| REGISTRY OD |
1.181″ |
| REGISTRY OD |
30mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0308, SMU0360 |
| J&N |
410-54213 |
| LESTER |
18764, 18770 |
| YAMAHA |
4XV81800-00-00, 4XV81890-00-00 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| 1998 - 1999 |
YAMAHA |
YZF-R1 |
998cc |
| 2001 - 2005 |
YAMAHA |
FZ 1 |
998cc |
| 2004 |
YAMAHA |
FZS 1 S |
998cc |
