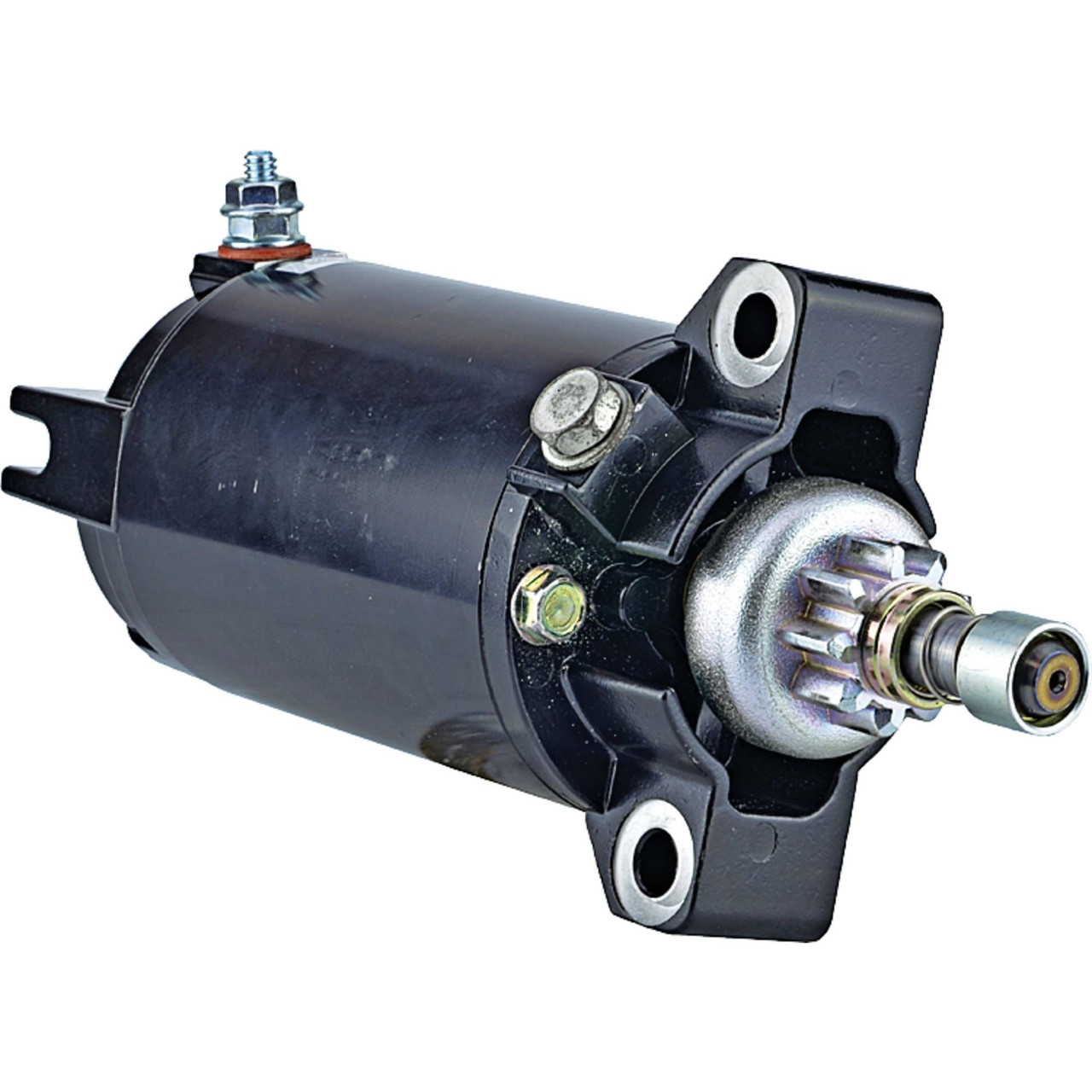

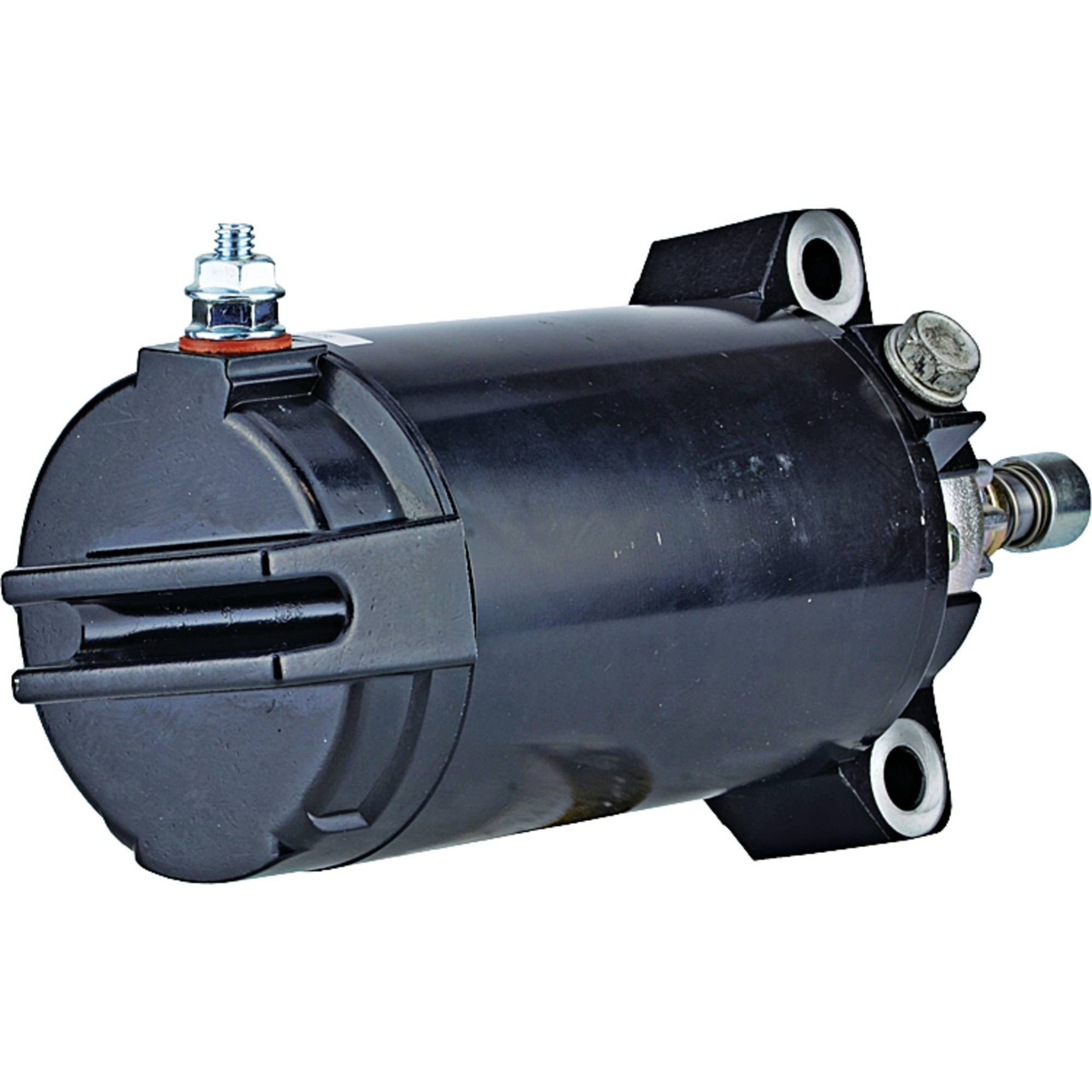

NEW Starter for YAMAHA Marine Applications; 410-21103, 66T81800-00-00, 66T81800-02-00, 66T81800-03-00
$169.99
Specifications
| UNIT TYPE | Starter |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION | Counter Clockwise |
| VOLT | 12 |
| NUMBER OF TEETH | 9 |
| GEAR OD | 1.122″ |
| GEAR OD | 28.500mm |
| LENGTH | 170.300 mm |
| LENGTH | 6.705″ |
| MOUNT HOLE ID 1 | 9mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| REGISTRY OD | 2.268″ |
| REGISTRY OD | 57.600mm |
| WARRANTY | 1 Year |
| 1/4-20 B+ Stud, 82mm Mounting Hole Center To Center |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SAB0132 |
| J&N | 410-21103 |
| YAMAHA | 66T81800-00-00, 66T81800-02-00, 66T81800-03-00 |
