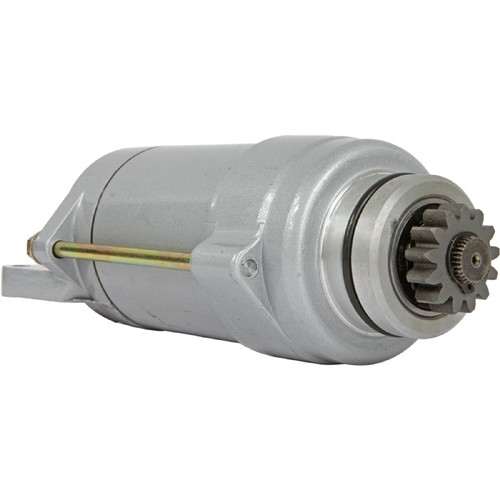

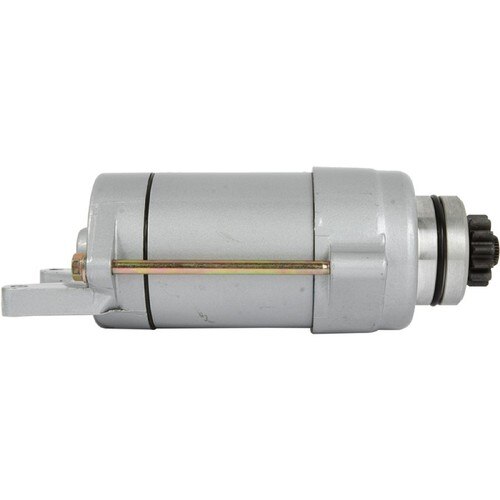

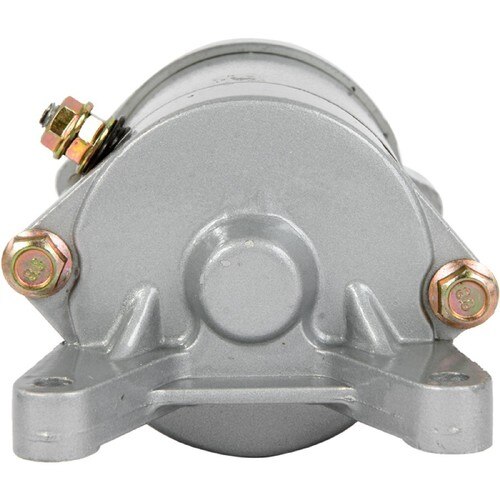

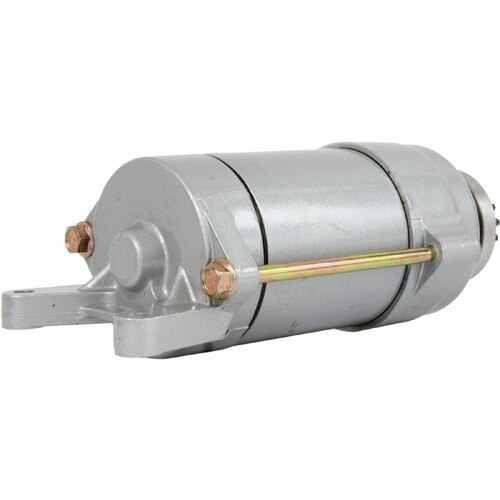

NEW Starter for YAMAHA V-Star & Virgo XV1100 Motorcycles; 410-54125, 5EL81890-00-00, 5EL81890-01-00; LESTER 18748
$154.99
SEARCH: 486123 (SAME)
Specifications
| UNIT TYPE | Starter |
| VOLT | 12 |
| ROTATION DIRECTION | Clockwise |
| ELECTRIC STARTER TYPE | Permanent Magnet Direct Drive (PMDD) |
| NUMBER OF TEETH | 13 |
| GEAR OD | 1.240″ |
| GEAR OD | 31.500mm |
| MOUNT HOLE ID 1 | 7mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| SMU0305 | ARROWHEAD |
| 410-54125 | J & N |
| 18748 | LESTER |
| 22-18748 | BBB SMALL MOTOR |
| YS-34N | EMS |
| YS-34 | EMS |
| STY0305 | HI LEVEL |
| 57-3184 | MINNPAR |
| P293N | MPA SMALL MOTOR |
| RS41249 | REMY SMALL MOTOR |
| YS-34 | STOCKERS STARTERS |
| 464156 | TUCKER ROCKY |
| 71-26-18748 | WILSON SMALL ENGINE |
| 5EL-81890-00-00 | YAMAHA |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1999 | YAMAHA | Virago XV1100 | 1063cc |
| 1999 - 2002 | YAMAHA | V-Star 1100 Classic XVS1100 | 1063cc |
| 1999 - 2002 | YAMAHA | V-Star 1100 Custom XVS1100 | 1063cc |
