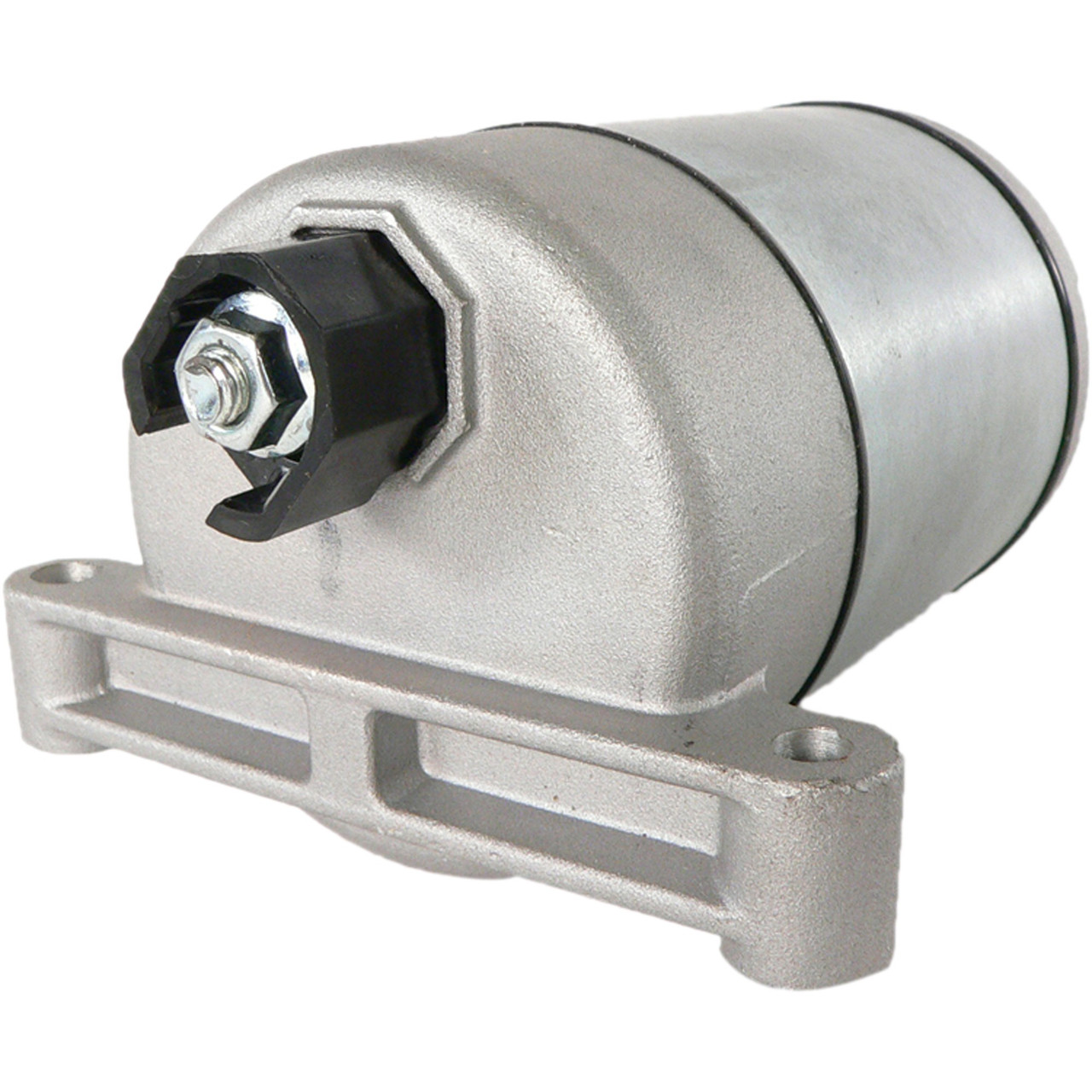

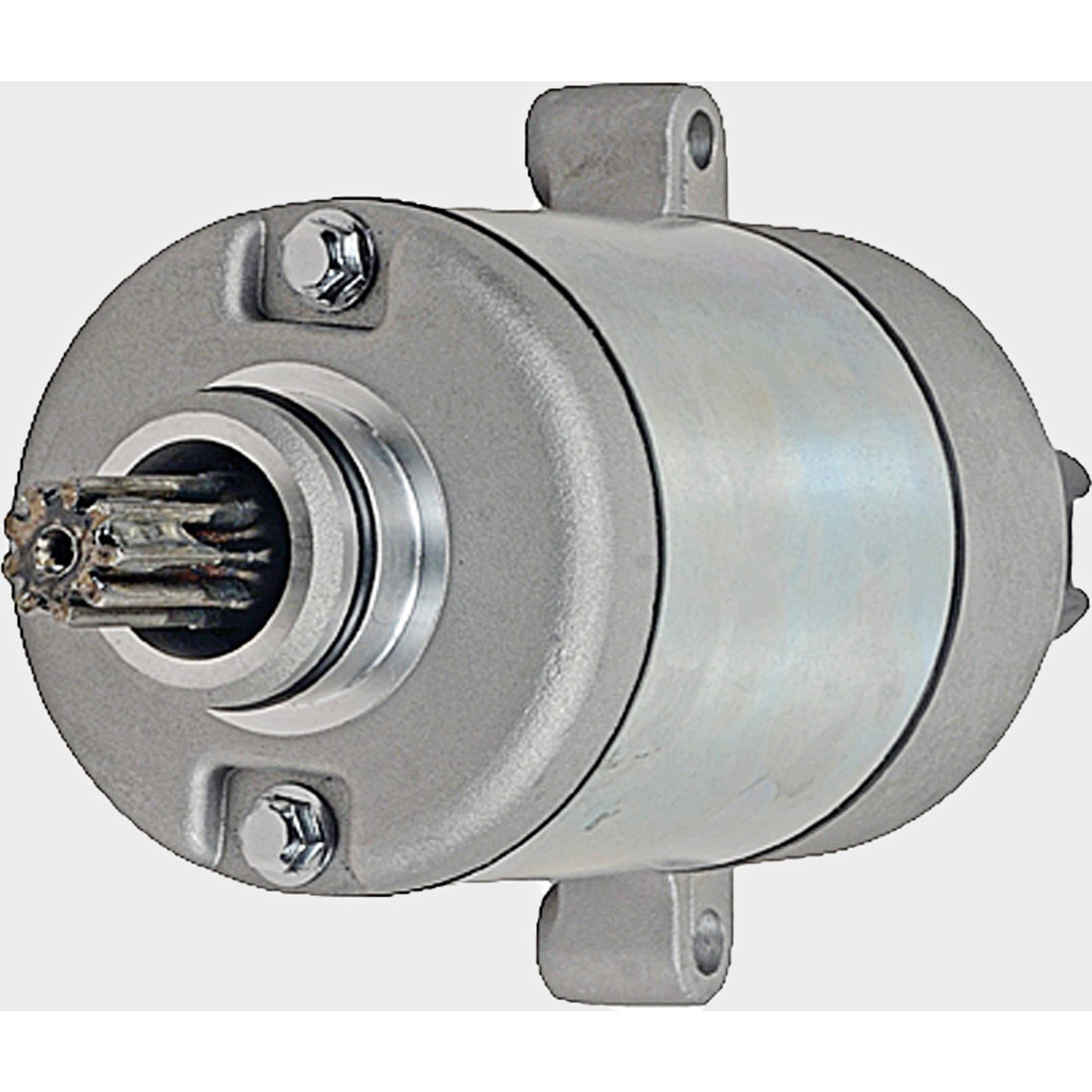

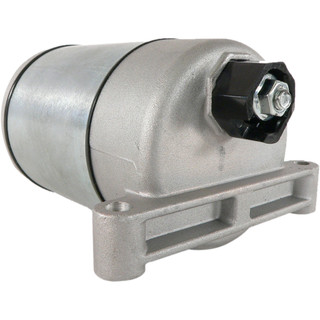

NEW Starter for YAMAHA YFM 550 DE Grizzly, YFM 700 D Grizzly & OTH Models; 410-58036, 28P81890-00-00, SM17; LESTER 19500

$129.99



Email
Categories: ,

Specifications

PART TYPE Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Clockwise
NUMBER OF TEETH 9
GEAR OD 0.571″
GEAR OD 14.500mm
MOUNT HOLE ID 1 6mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
WARRANTY 1 Year

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD SMU0512
HI LEVEL STY0512
J&N ELECTRICAL PRODUCTS 410-58036
LESTER 19500
MITSUBA SM17
YAMAHA 28P81890-00-00

Applications

MAKE MODEL ENGINE YEAR
Yamaha YFM 550 DE Grizzly 4×4 2014
Yamaha YFM 550 DH Grizzly 4×4 Hunter 2014
Yamaha YFM 550 FG Grizzly 4×4 2009, 2010, 2011, 2012, 2013
Yamaha YFM 550 FGH Grizzly 4×4 Hunter 2009, 2010, 2011, 2012, 2013
Yamaha YFM 550 FGP Grizzly EPS 4×4 2009, 2010, 2011, 2012, 2013
Yamaha YFM 550 FGPH Grizzly EPS 4×4 Hunter 2009, 2010, 2011, 2012, 2013
Yamaha YFM 550 FGPSE Grizzly 4×4 EPS SE 2009
Yamaha YFM 550 PE Grizzly EPS 4×4 2014
Yamaha YFM 550 PH Grizzly EPS 4×4 Hunter 2014
Yamaha YFM 700 D Grizzly 4×4 2014, 2015, 2016, 2017
Yamaha YFM 700 DH Grizzly 4×4 Hunter 2014, 2016, 2017
Yamaha YFM 700 FG Grizzly 4×4 2009, 2010, 2011, 2012, 2013
Yamaha YFM 700 FGH Grizzly 4×4 Hunter 2009, 2010, 2011, 2012, 2013
Yamaha YFM 700 FGP Grizzly EPS 4×4 2008, 2009, 2010, 2011, 2012, 2013
Yamaha YFM 700 FGPDU Grizzly 4×4 Ducks 2009
Yamaha YFM 700 FGPH Grizzly EPS 4×4 Hunter 2013
Yamaha YFM 700 FGPSE Grizzly EPS 4×4 SE 2009, 2010, 2011, 2012, 2013
Yamaha YFM 700 GP Grizzly EPS 4×4 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Yamaha YFM 700 GPH Grizzly EPS 4×4 Hunter 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Yamaha YFM 700 GPL Grizzly EPS 4×4 LE 2016, 2017, 2018
Yamaha YFM 700 GPL Grizzly EPS 4×4 SE 2019
Yamaha YFM 700 GPS Grizzly EPS 4×4 SE 2017, 2018, 2020, 2021, 2022, 2023
Yamaha YFM 700 GPS Grizzly EPS 4×4 XT-R 2020, 2021
Yamaha YFM 700 GPZ Grizzly EPS 4×4 XT-R 2022, 2023
Yamaha YFM 700 Grizzly EPS Graphite 2018
Yamaha YFM 700 KD Kodiak 4×4 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Yamaha YFM 700 KDH Kodiak 4×4 Hunter 2016, 2017, 2018, 2019, 2020, 2021
Yamaha YFM 700 KP Kodiak EPS 4×4 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Yamaha YFM 700 KPH Kodiak EPS 4×4 Hunter 2016, 2017, 2018, 2019, 2020, 2022, 2023
Yamaha YFM 700 KPS Kodiak EPS 4×4 SE 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Yamaha YFM 700 PE Grizzly EPS 4×4 2014
Yamaha YFM 700 PF Grizzly EPS 4×4 2015
Yamaha YFM 700 PH Grizzly EPS 4×4 Hunter 2009, 2010, 2011, 2012, 2014, 2015, 2017, 2018
Yamaha YFM 700 PS Grizzly EPS 4×4 SE 2014, 2015
