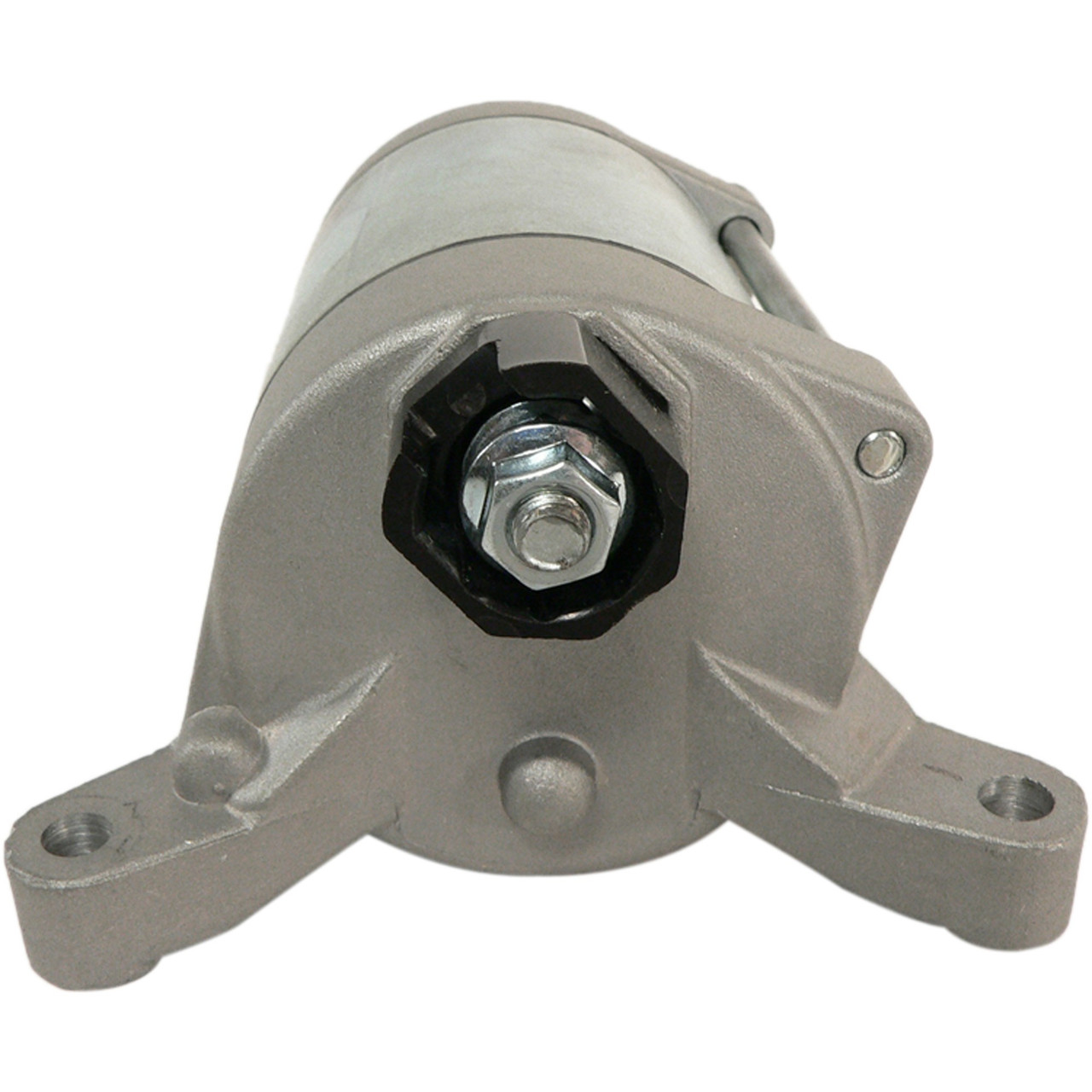

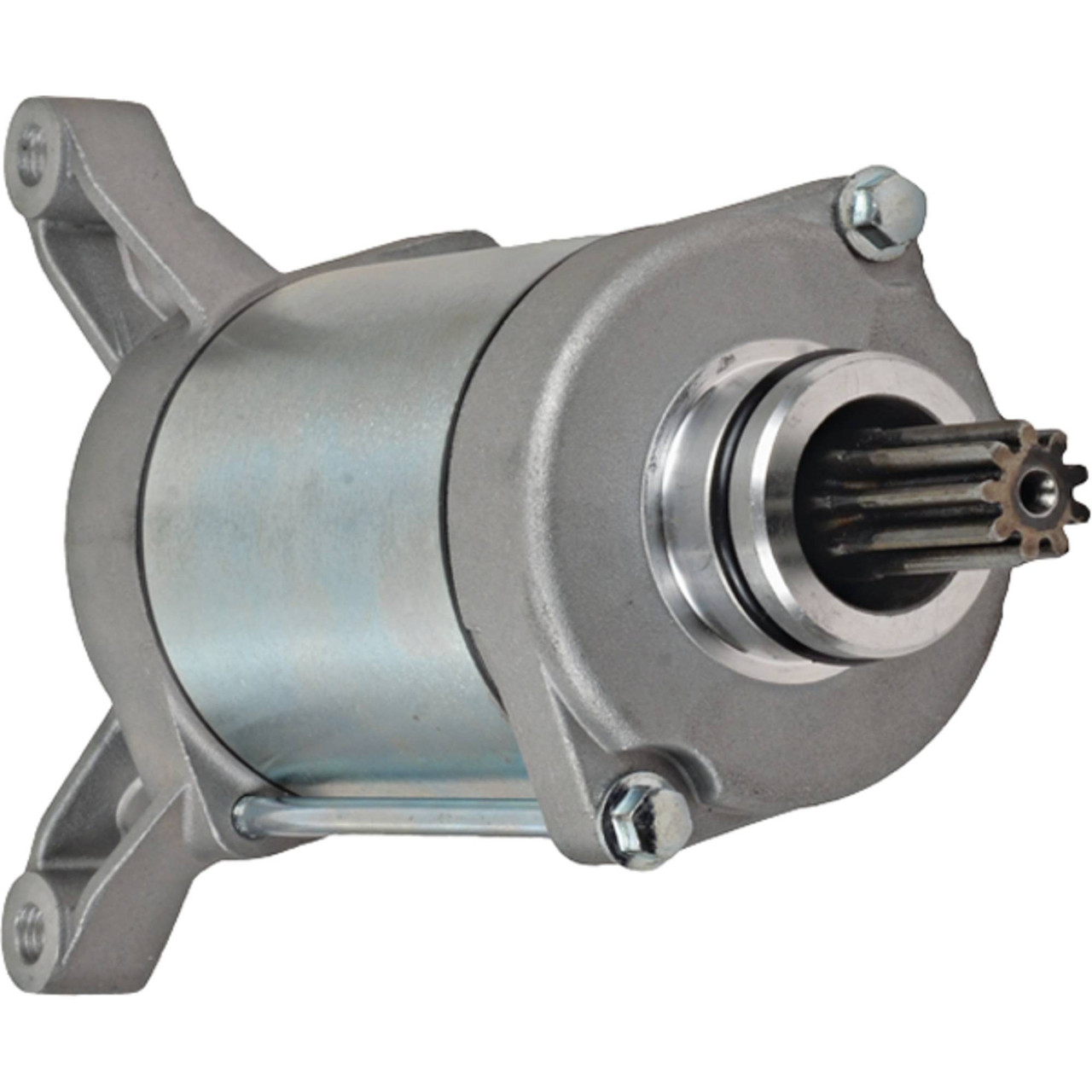

NEW Starter for YFM 450 DAE Grizzly, YFM 450 FGH Grizzly & OTH Models; 410-54148, 1CT81890-00-00, STY0516; LESTER 19499
$209.99
Specifications
| PART TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Permanent Magnet Direct Drive (PMDD) |
| ROTATION DIRECTION |
Counter Clockwise |
| VOLT |
12 |
| NUMBER OF TEETH |
9 |
| GEAR OD |
0.551″ |
| GEAR OD |
14mm |
| LENGTH |
153.500 mm |
| LENGTH |
6.043″ |
| MOUNT HOLE ID 1 |
6.300mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
3.378″ |
| MOUNTING EAR DISTANCE 1 |
85.800mm |
| REGISTRY OD |
1.130″ |
| REGISTRY OD |
28.700mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SMU0516 |
| HI LEVEL |
STY0516 |
| J&N ELECTRICAL PRODUCTS |
410-54148 |
| LESTER |
19499 |
| YAMAHA |
1CT81890-00-00 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
YFM 450 DAE Grizzly 4×4 Hunter |
|
2014 |
| Yamaha |
YFM 450 DE Grizzly IRS 4×4 |
|
2014 |
| Yamaha |
YFM 450 FG Grizzly IRS 4×4 |
|
2011, 2012, 2013 |
| Yamaha |
YFM 450 FGH Grizzly 4×4 Hunter |
|
2011, 2012, 2013 |
| Yamaha |
YFM 450 FGP Grizzly EPS 4×4 |
|
2011, 2012, 2013 |
| Yamaha |
YFM 450 PE Grizzly EPS 4×4 |
|
2014 |
| Yamaha |
YFM 450 PH Grizzly EPS 4×4 Hunter |
|
2011, 2012, 2013, 2014 |
