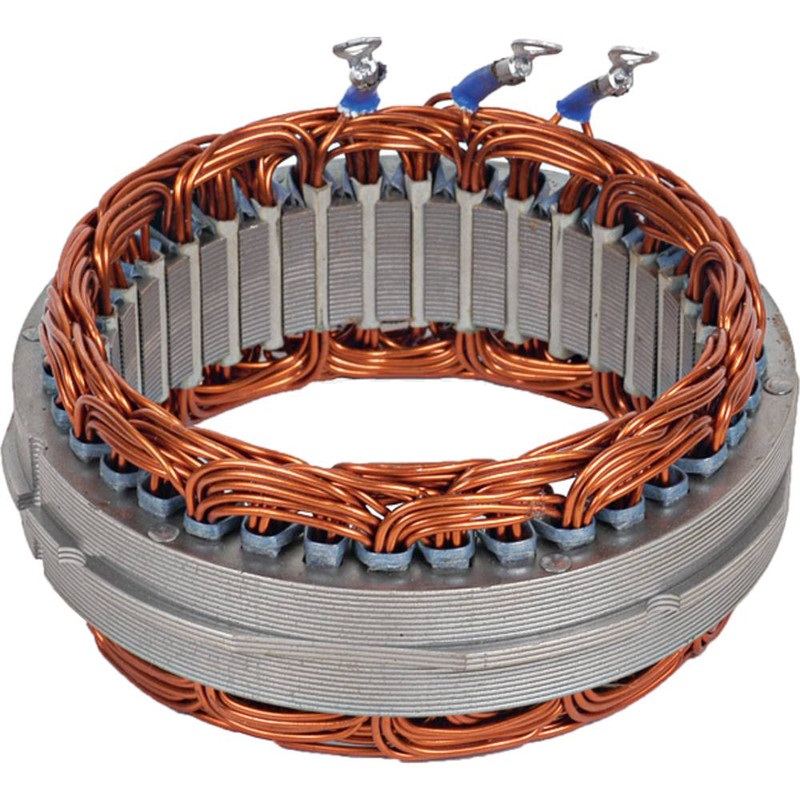

NEW Stator Coil for Delco Alternators; 340-12006, 1979722, 1985625; LESTER 7290, RST7290
$79.99
Search: 573582 (2004-05 Applications)
Specifications
| UNIT TYPE | 17SI 12V 108A Stator |
| VOLT | 12 |
| LOW AMPS | 108 |
| HIGH AMPS | 108 |
| LAM STACK ID | 108.400mm |
| LAM STACK ID | 4.268″ |
| LAM STACK OD | 149.900mm |
| LAM STACK OD | 5.902″ |
| LAM STACK THICKNESS | 1.110″ |
| LAM STACK THICKNESS | 28.200mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 340-12006, ADR4041 |
| DELCO | 1979722, 1985625 |
| J&N ELECTRICAL PRODUCTS | 340-12006-12, 340-12006R, 340-12080 |
| LESTER | 7290, RST7290 |
