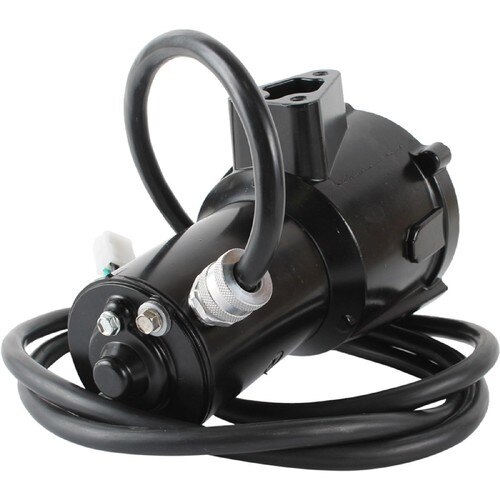

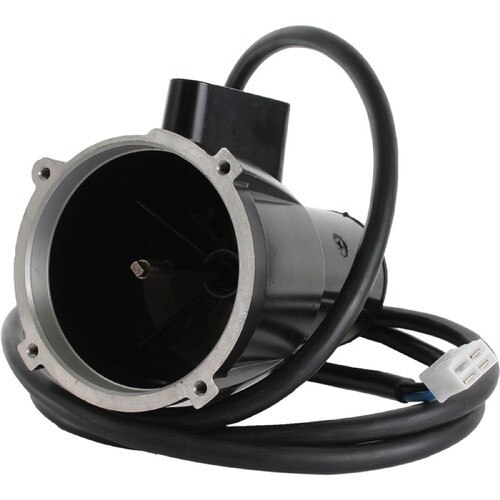

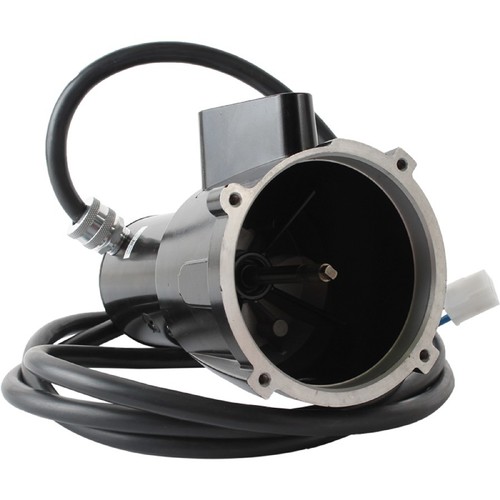

NEW Tilt & Trim Motor for OMC Marine Applications; 430-20008, 0172655, 0172847, 0172850, 0173596, 172655, 172847, 172850, 173596, 802511; LESTER 10801
$351.46
Categories: Motor, Tilt/ Trim Motor
Additional information
| Weight | 2.65 kg |
|---|---|
| Dimensions | 27 × 17 × 12 cm |
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 2.803″ |
| OD | 71.200 mm |
| SHAFT OD | 0.311″ |
| SHAFT OD | 7.900mm |
| LENGTH | 201.100 mm |
| LENGTH | 7.917″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| TERMINAL 4 SIZE | Wire |
| SHAFT | Tanged Shaft |
| WARRANTY | 1 Year |
| Includes 6 Foot Long 3-Wire Harness With 3 Blade Plug and Reservoir |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0016 |
| EMP | 4-6767-1 |
| J&N ELECTRICAL PRODUCTS | 430-20008 |
| LESTER | 10801 |
| MERCURY MARINE | 802511 |
| OMC OUTBOARD MARINE CORP | 0172655, 0172847, 0172850, 0173596, 172655, 172847, 172850, 173596 |
| PRESTOLITE | 40-312, 40-355, 40-374, 40-379, ESQ4006, ESQ4007-1, ESQ4009S, HYB5001, HYB6005 |
Application
| MAKE | MODEL | ENGINE | YEAR |
| Evinrude Johnson | 115E | 115H | 1976, 1977 |
| Evinrude Johnson | 135E | 135H | 1974, 1975 |
| Evinrude Johnson | 85E | 85H | 1976, 1977 |
| Evinrude Johnson | E100 | 100H | 1979 |
| Evinrude Johnson | E100ML | 100H | 1980 |
| Evinrude Johnson | E100STL | 100H | 1988 |
| Evinrude Johnson | E100TL | 100H | 1980 |
| Evinrude Johnson | E100TX | 100H | 1980 |
| Evinrude Johnson | E100WML | 100H | 1984, 1985, 1986 |
| Evinrude Johnson | E100WTL | 100H | 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | E100WTX | 100H | 1986, 1987, 1988 |
| Evinrude Johnson | E110ML | 110H | 1986, 1987, 1988 |
| Evinrude Johnson | E110TL | 110H | 1986, 1987, 1988 |
| Evinrude Johnson | E110TX | 110H | 1989 |
| Evinrude Johnson | E115 | 115H | 1973, 1974 |
| Evinrude Johnson | E115 | 115H | 1975, 1976, 1977 |
| Evinrude Johnson | E115 | 115H | 1978, 1979 |
| Evinrude Johnson | E115ML | 115H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E115TL | 115H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E115TX | 115H | 1980, 1981, 1982, 1983, 1984 |
| Evinrude Johnson | E135 | 135H | 1973, 1974 |
| Evinrude Johnson | E135 | 135H | 1975, 1976 |
| Evinrude Johnson | E140 | 140H | 1978, 1979 |
| Evinrude Johnson | E140ML | 140H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | E140TL | 140H | 1984 |
| Evinrude Johnson | E140TRL | 140H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | E140TRX | 140H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | E140TX | 140H | 1984 |
| Evinrude Johnson | E35AE | 35H | 1986 |
| Evinrude Johnson | E35AE | 35H | 1987 |
| Evinrude Johnson | E35AR | 35H | 1986 |
| Evinrude Johnson | E35AR | 35H | 1987 |
| Evinrude Johnson | E35RC | 35H | 1986 |
| Evinrude Johnson | E35RL | 35H | 1986 |
| Evinrude Johnson | E40AEL | 40H | 1988 |
| Evinrude Johnson | E40ARL | 40H | 1988 |
| Evinrude Johnson | E40ATL | 40H | 1988 |
| Evinrude Johnson | E40EC | 40H | 1985 |
| Evinrude Johnson | E40EC | 40H | 1986 |
| Evinrude Johnson | E40EC | 40H | 1987, 1988 |
| Evinrude Johnson | E40EL | 40H | 1985 |
| Evinrude Johnson | E40EL | 40H | 1986 |
| Evinrude Johnson | E40EL | 40H | 1987, 1988 |
| Evinrude Johnson | E40RC | 40H | 1986 |
| Evinrude Johnson | E40RC | 40H | 1987, 1988 |
| Evinrude Johnson | E40RL | 40H | 1986 |
| Evinrude Johnson | E40RL | 40H | 1987, 1988 |
| Evinrude Johnson | E40TEC | 40H | 1985 |
| Evinrude Johnson | E40TEC | 40H | 1986 |
| Evinrude Johnson | E40TEC | 40H | 1987, 1988 |
| Evinrude Johnson | E40TEL | 40H | 1985 |
| Evinrude Johnson | E40TEL | 40H | 1986 |
| Evinrude Johnson | E40TEL | 40H | 1988 |
| Evinrude Johnson | E40TLC | 40H | 1986 |
| Evinrude Johnson | E40TLC | 40H | 1987, 1988 |
| Evinrude Johnson | E40TTL | 40H | 1988 |
| Evinrude Johnson | E45RC | 45H | 1989 |
| Evinrude Johnson | E45WM | 45H | 1989 |
| Evinrude Johnson | E48ESL | 48H | 1987, 1988 |
| Evinrude Johnson | E50 | 50H | 1974, 1975, 1979 |
| Evinrude Johnson | E50BEC | 50H | 1981, 1987, 1988 |
| Evinrude Johnson | E50BEC | 50H | 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E50BEC | 50H | 1986 |
| Evinrude Johnson | E50BEL | 50H | 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E50BEL | 50H | 1986 |
| Evinrude Johnson | E50BEL | 50H | 1987, 1988 |
| Evinrude Johnson | E50TEL | 50H | 1983, 1984, 1985 |
| Evinrude Johnson | E50TEL | 50H | 1986 |
| Evinrude Johnson | E50TEL | 50H | 1987, 1988 |
| Evinrude Johnson | E50TLC | 50H | 1984, 1985 |
| Evinrude Johnson | E50TLC | 50H | 1986 |
| Evinrude Johnson | E50TLC | 50H | 1987, 1988 |
| Evinrude Johnson | E55 | 55H | 1976, 1977, 1978, 1979 |
| Evinrude Johnson | E55R | 55H | 1981, 1989 |
| Evinrude Johnson | E55TL | 55H | 1981 |
| Evinrude Johnson | E60EC | 60H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | E60EL | 60H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E60EL | 60H | 1986, 1987, 1988 |
| Evinrude Johnson | E60TL | 60H | 1981 |
| Evinrude Johnson | E60TL | 60H | 1982, 1983, 1984, 1985 |
| Evinrude Johnson | E60TL | 60H | 1986, 1987, 1988 |
| Evinrude Johnson | E60TTL | 60H | 1988 |
| Evinrude Johnson | E65 | 65H | 1973 |
| Evinrude Johnson | E65RWL | 65H | 1984, 1985, 1986 |
| Evinrude Johnson | E65TEL | 65H | 1984, 1985, 1986 |
| Evinrude Johnson | E65WML | 65H | 1985, 1986, 1987, 1988 |
| Evinrude Johnson | E65WTL | 65H | 1984, 1985 |
| Evinrude Johnson | E70 | 70H | 1974, 1975, 1976 |
| Evinrude Johnson | E70 | 70H | 1977 |
| Evinrude Johnson | E70 | 70H | 1978, 1979 |
| Evinrude Johnson | E70EL | 70H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | E70TL | 70H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | E75 | 75H | 1975, 1976 |
| Evinrude Johnson | E75 | 75H | 1977 |
| Evinrude Johnson | E75 | 75H | 1978, 1979 |
| Evinrude Johnson | E75E | 75H | 1984, 1985, 1987, 1988 |
| Evinrude Johnson | E75E | 75H | 1986 |
| Evinrude Johnson | E75ER | 75H | 1981, 1982, 1983 |
| Evinrude Johnson | E75ERL | 75H | 1980 |
| Evinrude Johnson | E75TL | 75H | 1984 |
| Evinrude Johnson | E75TRL | 75H | 1981, 1982, 1983 |
| Evinrude Johnson | E85 | 85H | 1973 |
| Evinrude Johnson | E85 | 85H | 1974, 1975, 1976, 1977 |
| Evinrude Johnson | E85 | 85H | 1978, 1979 |
| Evinrude Johnson | E85ML | 85H | 1980 |
| Evinrude Johnson | E85TL | 85H | 1980 |
| Evinrude Johnson | E85TX | 85H | 1980 |
| Evinrude Johnson | E88MSL | 88H | 1987, 1988 |
| Evinrude Johnson | E90ML | 90H | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Evinrude Johnson | E90TL | 90H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | E90TX | 90H | 1981, 1982, 1983, 1984, 1985, 1986 |
| Evinrude Johnson | J100ML | 100H | 1980 |
| Evinrude Johnson | J100STL | 100H | 1988 |
| Evinrude Johnson | J100TRL | 100H | 1980 |
| Evinrude Johnson | J100TRX | 100H | 1980 |
| Evinrude Johnson | J100WML | 100H | 1984, 1985, 1986 |
| Evinrude Johnson | J100WTL | 100H | 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J100WTX | 100H | 1986, 1987, 1988 |
| Evinrude Johnson | J110ML | 110H | 1986, 1987, 1988 |
| Evinrude Johnson | J110TL | 110H | 1986, 1987, 1988 |
| Evinrude Johnson | J110TX | 110H | 1987, 1988 |
| Evinrude Johnson | J115ML | 115H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J115TL | 115H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J115TX | 115H | 1980, 1981, 1982, 1983, 1984 |
| Evinrude Johnson | J140ML | 140H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | J140TL | 140H | 1980, 1981, 1982, 1983, 1984 |
| Evinrude Johnson | J140TX | 140H | 1980, 1981, 1982, 1983, 1984 |
| Evinrude Johnson | J35AE | 35H | 1986 |
| Evinrude Johnson | J35AE | 35H | 1987 |
| Evinrude Johnson | J35AR | 35H | 1986 |
| Evinrude Johnson | J35AR | 35H | 1987 |
| Evinrude Johnson | J35RC | 35H | 1986 |
| Evinrude Johnson | J35RL | 35H | 1986 |
| Evinrude Johnson | J40AEL | 40H | 1988 |
| Evinrude Johnson | J40ARL | 40H | 1988 |
| Evinrude Johnson | J40ATL | 40H | 1988 |
| Evinrude Johnson | J40EC | 40H | 1984, 1985 |
| Evinrude Johnson | J40EC | 40H | 1986 |
| Evinrude Johnson | J40EC | 40H | 1987, 1988 |
| Evinrude Johnson | J40EL | 40H | 1984, 1985 |
| Evinrude Johnson | J40EL | 40H | 1986 |
| Evinrude Johnson | J40EL | 40H | 1987, 1988 |
| Evinrude Johnson | J40RC | 40H | 1984, 1985 |
| Evinrude Johnson | J40RC | 40H | 1986 |
| Evinrude Johnson | J40RC | 40H | 1987, 1988 |
| Evinrude Johnson | J40RL | 40H | 1984, 1985 |
| Evinrude Johnson | J40RL | 40H | 1986 |
| Evinrude Johnson | J40RL | 40H | 1987, 1988 |
| Evinrude Johnson | J40TEC | 40H | 1984, 1985 |
| Evinrude Johnson | J40TEC | 40H | 1986 |
| Evinrude Johnson | J40TEC | 40H | 1987, 1988 |
| Evinrude Johnson | J40TEL | 40H | 1984, 1985 |
| Evinrude Johnson | J40TEL | 40H | 1986 |
| Evinrude Johnson | J40TEL | 40H | 1988 |
| Evinrude Johnson | J40TLC | 40H | 1986 |
| Evinrude Johnson | J40TLC | 40H | 1987, 1988 |
| Evinrude Johnson | J40TTL | 40H | 1988 |
| Evinrude Johnson | J45RC | 45H | 1989 |
| Evinrude Johnson | J45WM | 45H | 1989 |
| Evinrude Johnson | J48ESL | 48H | 1987, 1988 |
| Evinrude Johnson | J50BEC | 50H | 1981, 1987, 1988 |
| Evinrude Johnson | J50BEC | 50H | 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J50BEC | 50H | 1986 |
| Evinrude Johnson | J50BEL | 50H | 1981, 1987, 1988 |
| Evinrude Johnson | J50BEL | 50H | 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J50BEL | 50H | 1986 |
| Evinrude Johnson | J50TEL | 50H | 1983, 1984, 1985 |
| Evinrude Johnson | J50TEL | 50H | 1986 |
| Evinrude Johnson | J50TEL | 50H | 1987, 1988 |
| Evinrude Johnson | J50TLC | 50H | 1984, 1985 |
| Evinrude Johnson | J50TLC | 50H | 1986 |
| Evinrude Johnson | J50TLC | 50H | 1987, 1988 |
| Evinrude Johnson | J55R | 55H | 1981, 1989 |
| Evinrude Johnson | J60EC | 60H | 1980, 1981, 1982, 1983 |
| Evinrude Johnson | J60EL | 60H | 1980, 1981, 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J60EL | 60H | 1986, 1987, 1988 |
| Evinrude Johnson | J60TL | 60H | 1981 |
| Evinrude Johnson | J60TL | 60H | 1982, 1983, 1984, 1985 |
| Evinrude Johnson | J60TL | 60H | 1986, 1987, 1988 |
| Evinrude Johnson | J60TTL | 60H | 1988 |
| Evinrude Johnson | J65RWL | 65H | 1984, 1985, 1986 |
| Evinrude Johnson | J65TEL | 65H | 1984, 1985, 1986 |
| Evinrude Johnson | J65WML | 65H | 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J65WTL | 65H | 1984, 1985 |
| Evinrude Johnson | J70EL | 70H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J70TL | 70H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J75EC | 75H | 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J75EL | 75H | 1982, 1983, 1984 |
| Evinrude Johnson | J75ER | 75H | 1981 |
| Evinrude Johnson | J75ERL | 75H | 1980 |
| Evinrude Johnson | J75TL | 75H | 1982, 1983, 1984 |
| Evinrude Johnson | J75TRL | 75H | 1981 |
| Evinrude Johnson | J85ML | 85H | 1980 |
| Evinrude Johnson | J85TL | 85H | 1980 |
| Evinrude Johnson | J85TX | 85H | 1980 |
| Evinrude Johnson | J88MSL | 88H | 1987, 1988 |
| Evinrude Johnson | J90ML | 90H | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Evinrude Johnson | J90TL | 90H | 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 |
| Evinrude Johnson | J90TX | 90H | 1981, 1982, 1983, 1984, 1985, 1986 |
| Evinrude Johnson | VE48ESL | 48H | 1988 |
| Evinrude Johnson | VJ48ESL | 48H | 1988 |
