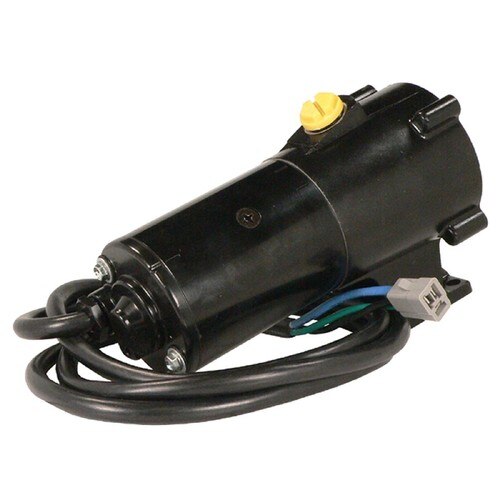

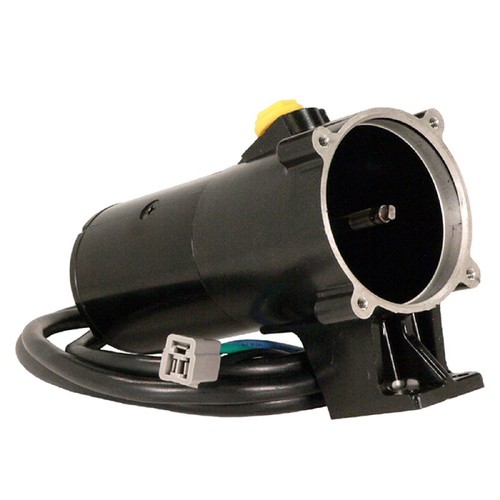

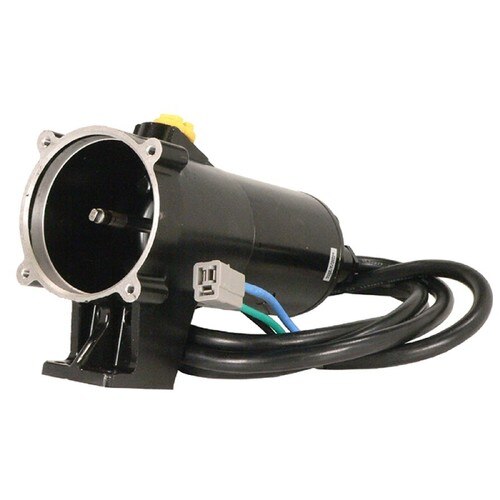

June 6, 2020NEW Tilt & Trim Motor for JOHNSON, EVINRUDE, CHRYSLER & FORCE MARINE Applications; 430-20024, F17556, F17563, F17564, F17568, F654541, FK654541; LESTER 10806
$294.99
Specifications
UNIT TYPE | Tilt/Trim Motor |
CURRENT TYPE | DC |
ROTATION DIRECTION | Reversible |
VOLT | 12 |
OD | 3.031″ |
OD | 77 mm |
SHAFT OD | 0.291″ |
SHAFT OD | 7.400mm |
LENGTH | 220 mm |
LENGTH | 8.661″ |
TERMINAL 2 SIZE | Wire |
TERMINAL 3 SIZE | Wire |
TERMINAL 4 SIZE | Wire |
SHAFT | 3.5mm Drive Tang |
WARRANTY | 1 Year |
Includes Reservoir@ 3-Wire Configuration |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | TRM0012 |
J & N | 430-20024 |
LESTER | 10806 |
API MARINE | PT112N |
API MARINE | PT112 |
ARCO MARINE | 6216 |
BARSANCO | 540-10806 |
BBB SMALL MOTOR | 22-10806 |
CHRYSLER MARINE | 45-5541 |
CHRYSLER MARINE | 44-9541-1 |
CHRYSLER MARINE | F17563 |
EMP PARTS | 4-6762 |
EMS | 49-6216 |
FORCE | F17568 |
FORCE | F654541 |
FORCE | F17556 |
FORCE | F17563 |
FORCE | F17564 |
FORCE | FK654541 |
MES MOTORCYCLE & MARINE | T1161M |
MINNPAR | 67-1768 |
MP PARTS | 4-1256 |
MPA SMALL MOTOR | P496N |
NAPA SMALL MOTOR | RN10806 |
OMC | 172543 |
OMC | 172543 |
OMC | 382715 |
OMC | 382715 |
PRESTOLITE | ESZ4009 |
PRESTOLITE | ESZ4012 |
PRESTOLITE | ETX4001 |
PRESTOLITE | ESZ4014 |
REMY SMALL MOTOR | RT05008 |
SIERRA MARINE | 18-6762 |
WAI | 10806N |
WAI | 82-6899-1 |
WAI (OLD) | 82-6899-1 |
WILSON SMALL ENGINE | 74-06-10806 |
Part fit
Year | Make | Model | Engine |
---|---|---|---|
Year | Make | Model | Engine |
All | CHRYSLER | Various Models | 75-135 HP |
All | EVINRUDE | All Models | 75-135 HP |
All | JOHNSON | All Models | 75-135 HP |
All | OMC | All Models | 75-135 HP |
All | US | All Models | 75-135 HP |
