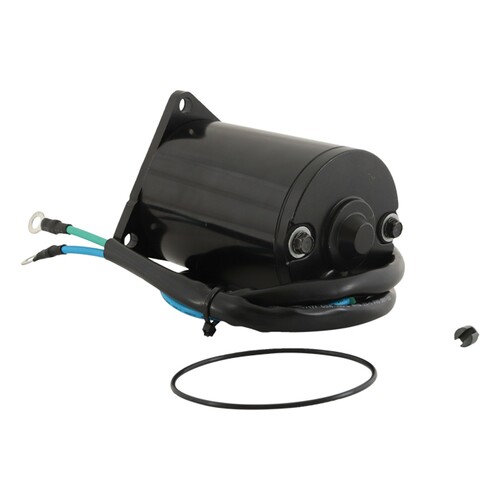

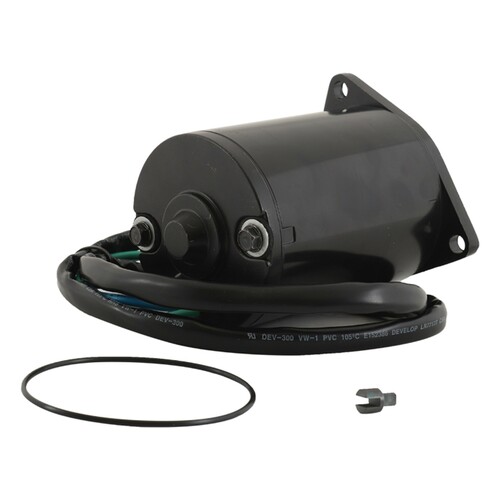

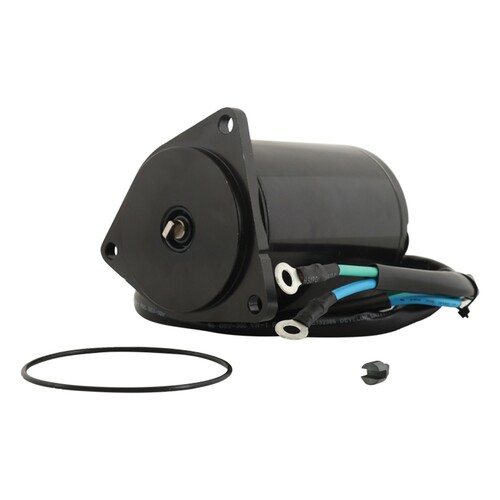

NEW Tilt & Trim Motor for YAMAHA 115-200 HP Outboard Engines; 430-22029, 4-6760, 6G5-43880-00, 6G5-43880-01, 6G5-43880-02; LESTER 10824, 10849
$174.38 $197.05
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 2.520″ |
| OD | 64 mm |
| SHAFT OD | 0.315″ |
| SHAFT OD | 8mm |
| LENGTH | 130 mm |
| LENGTH | 5.118″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | 2.5mm Drive Tang |
| WARRANTY | 1 Year |
| Includes O-Rings and Shaft Adaptor, 2-Wire Configuration, Ring Terminals, (3) 6mm Unthreaded Mounting Holes |
