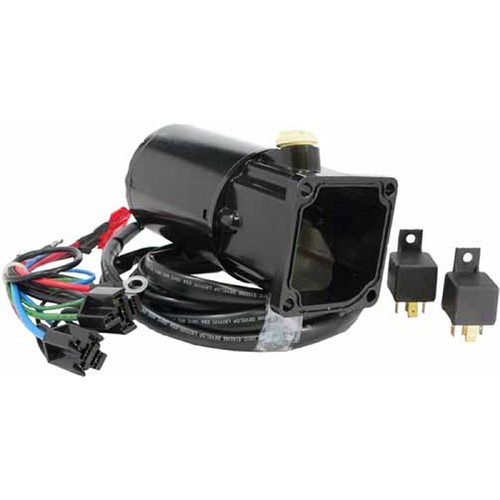

NEW Tilt & Trim Motor for FORCE, MARINER & MERCURY MARINE Applications; 430-22037, 824051, 18-6775 (MOTOR), 18-6784 (KIT); LESTER 10821
$294.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 3.071″ |
| OD | 78 mm |
| LENGTH | 160 mm |
| LENGTH | 6.299″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | Female 4mm Hex |
| WARRANTY | 1 Year |
| INFO: 2-WIRE CONNECTION INFO: REPLACES OE 3-WIRE MOTOR (4-BOLT MTG) |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0035 |
| J & N | 430-22037 |
| LESTER | 10821 |
| API MARINE | PT495NK-3 |
| API MARINE | PT495NK |
| ARCO MARINE | 6274 |
| BBB SMALL MOTOR | 22-10821 |
| EMP PARTS | 4-6784 |
| EMS | 107-121N |
| FORCE | 824051 |
| MALLORY | 9-18202 |
| MERCURY MARINE | 824051 |
| MES MOTORCYCLE & MARINE | T1163M |
| MINNPAR | 67-1750 |
| MP PARTS | 4-6775 |
| MPA SMALL MOTOR | P497N |
| NAPA SMALL MOTOR | RN10821 |
| REMY SMALL MOTOR | RT05022 |
| SIERRA MARINE | 18-6784 (KIT) |
| SIERRA MARINE | 18-6775 (MOTOR) |
| WAI | 10821N |
| WAI | 82-68104 |
| WAI (OLD) | 82-68104 |
| WILSON SMALL ENGINE | 74-35-10821 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| All | FORCE | All Models | Assy 824051 |
| All | MERCURY | All Models | Assy 824051 |
| 1995 | FORCE | 90EL | 90HP |
