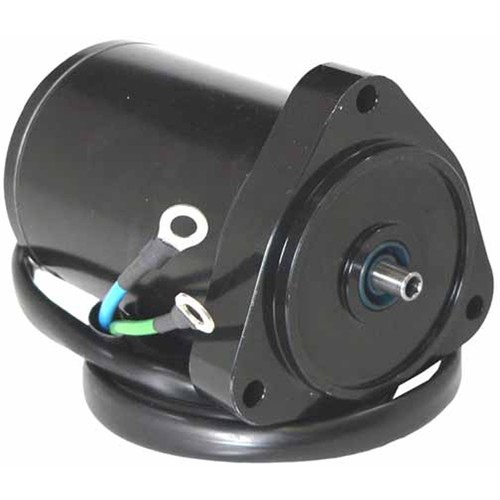

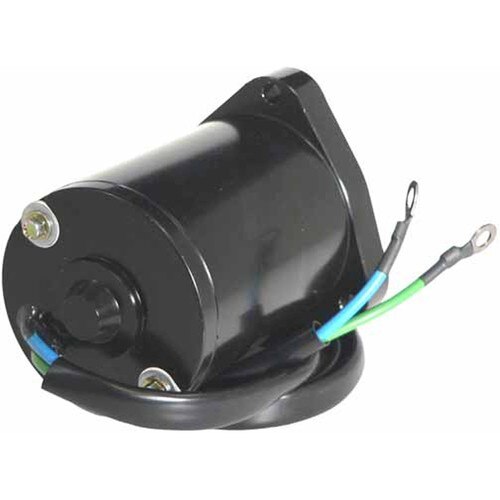

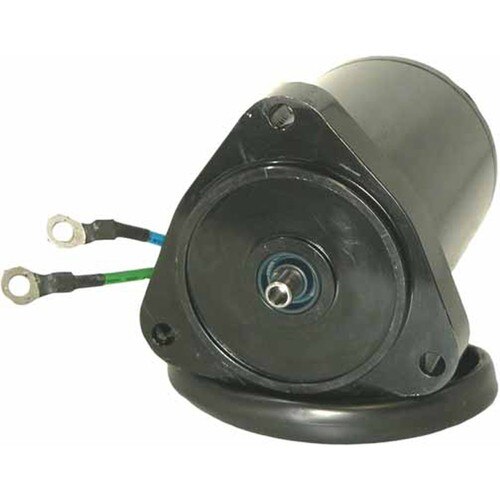

NEW Tilt & Trim Motor for SUZUKI & TOHATSU Applications; 430-22089, 38100-87D10-0ED, 38100-87D10OED, 38100-87E20-0ED, 38100-87E20OED, 38100-92E00-0ED, 38100-92E00OED; LESTER 10838, 10846
$149.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| OD | 3.583″ |
| OD | 91 mm |
| SHAFT OD | 0.315″ |
| SHAFT OD | 8mm |
| LENGTH | 141.100 mm |
| LENGTH | 5.555″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | Hex |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0063 |
| J & N | 430-22089 |
| ARROWHEAD (OLD) | TRM0054 |
| LESTER | 10838 |
| API MARINE | PT651NM-2 |
| ARCO MARINE | 6268 |
| BBB SMALL MOTOR | 22-10846 |
| EMP PARTS | 4-6786 |
| MALLORY | 9-18301 |
| MES MOTORCYCLE & MARINE | T1154M |
| MINNPAR | 67-3330 |
| MP PARTS | 4-6786 |
| MPA SMALL MOTOR | P389N |
| REMY SMALL MOTOR | RT05037 |
| SIERRA MARINE | 18-6786 |
| SUZUKI | 38100-87D10-OED |
| SUZUKI | 38100-92E00-0ED |
| SUZUKI | 38100-87E20-0ED |
| SUZUKI | 38100-92E00-OED |
| SUZUKI | 38100-87D10-0ED |
| SUZUKI | 38100-87E20-OED |
| WAI | 82-6896 |
| WAI | 10838N |
| WAI (OLD) | 82-6896 |
| WILSON SMALL ENGINE | 74-35-10846 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1990 - 2003 | SUZUKI | DT Series | V4 |
| 1990 - 2003 | SUZUKI | DT Series | V6 |
| 1990 - 2003 | TOHATSU | All Models | V4 |
| 1990 - 2003 | TOHATSU | All Models | V6 |
