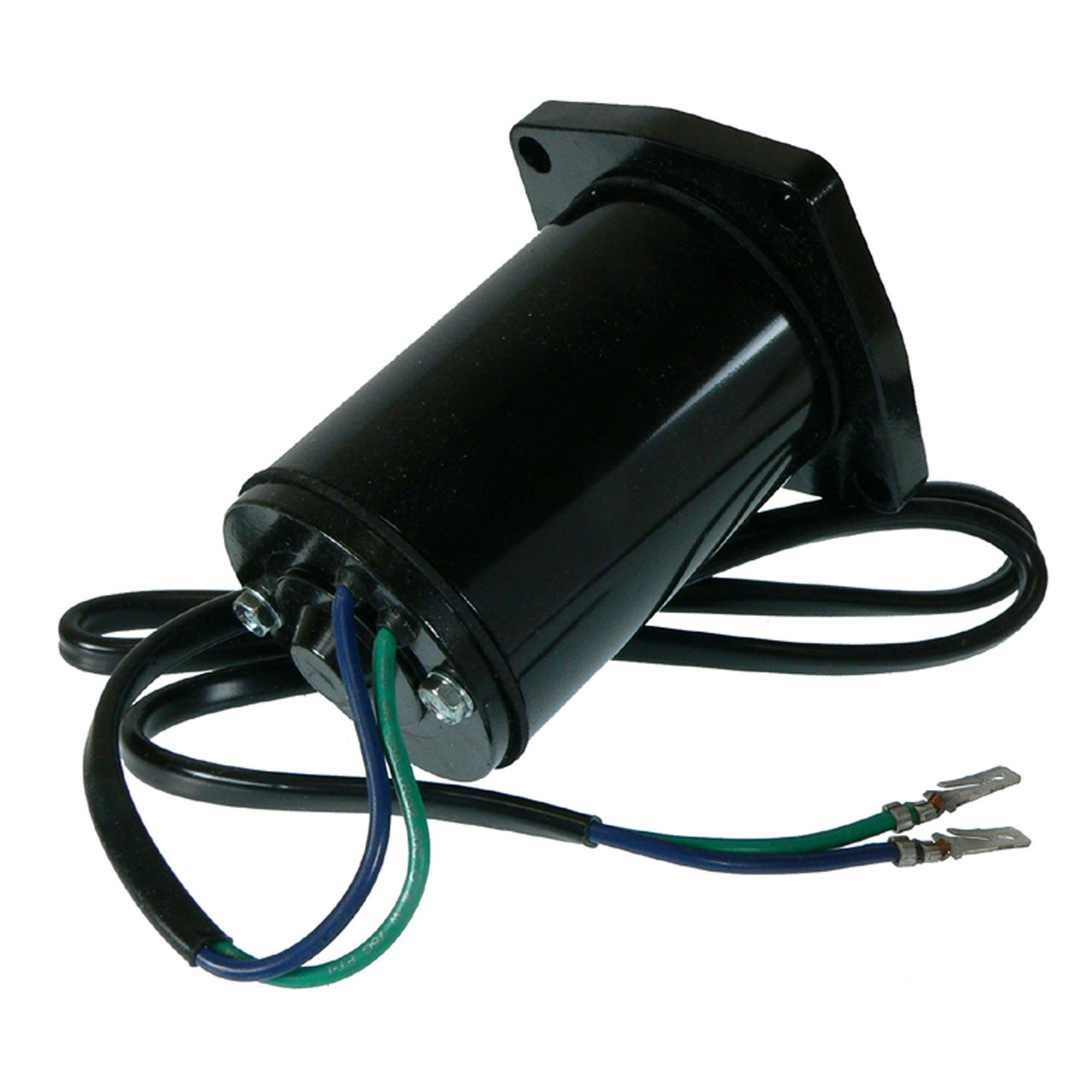

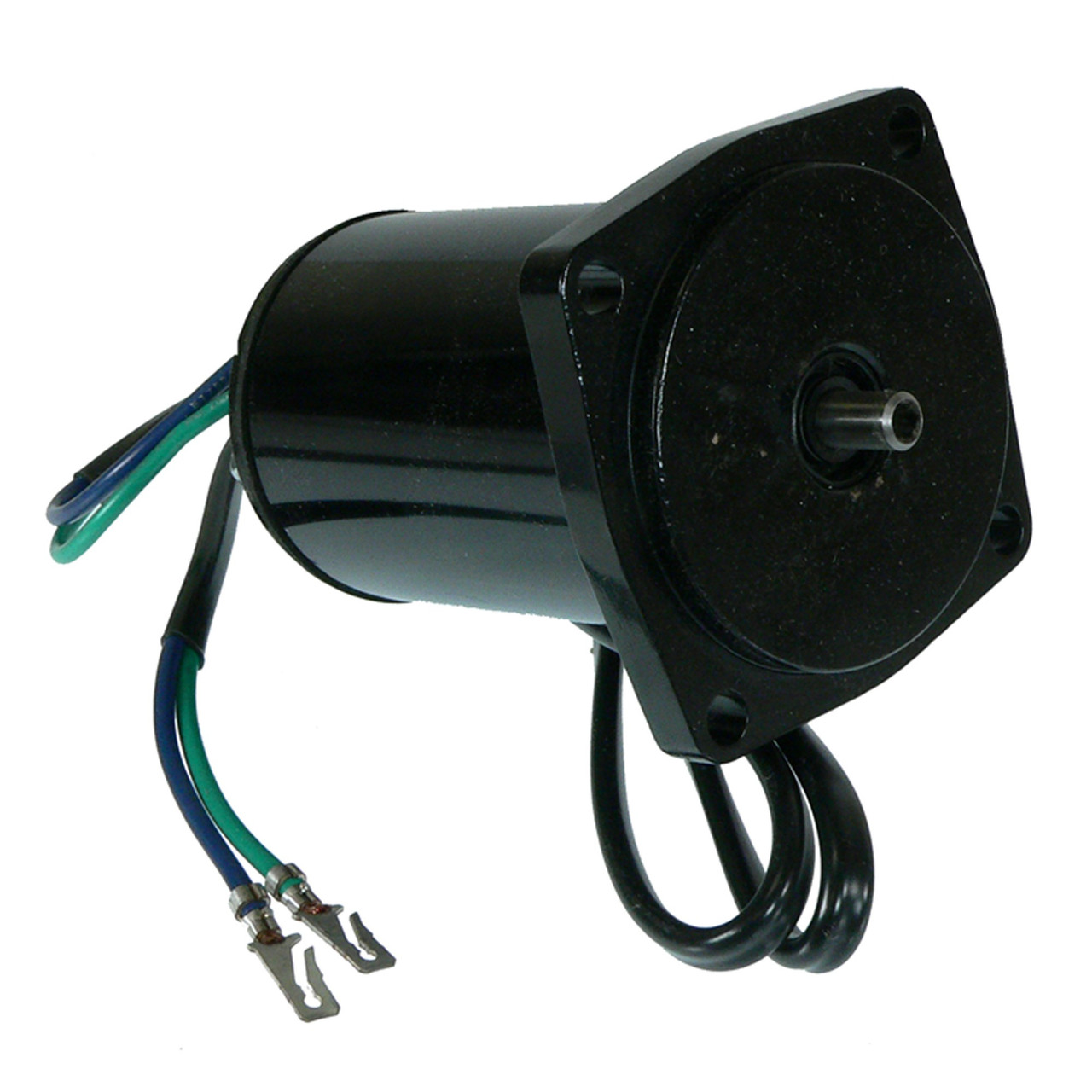

NEW Tilt/Trim Motor for EVINRUDE JOHNSON 35 – 50 HP Outboard Engines; 430-22027, 4-6285, 0433226, 433226, 18-6285; LESTER 10811A
$149.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.504″ |
| OD |
63.600 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
124 mm |
| LENGTH |
4.882″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
5mm Female Hex |
| WARRANTY |
1 Year |
|
2-Wire Configuration, Male Spade Terminals, (4) 7mm Unthreaded Mounting Holes |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0070 |
| EMP |
4-6285 |
| J&N ELECTRICAL PRODUCTS |
430-22027 |
| LESTER |
10811A |
| OMC OUTBOARD MARINE CORP |
0433226, 433226 |
| SIERRA MARINE |
18-6285 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Evinrude Johnson |
E40EC |
40HP |
1989 |
| Evinrude Johnson |
E40EE |
40HP |
1990, 1991 |
| Evinrude Johnson |
E40EE |
40HP |
1992 |
| Evinrude Johnson |
E40EL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E40EL |
40HP |
1992 |
| Evinrude Johnson |
E40RC |
40HP |
1989 |
| Evinrude Johnson |
E40RE |
40HP |
1990, 1991 |
| Evinrude Johnson |
E40RE |
40HP |
1992 |
| Evinrude Johnson |
E40RL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E40RL |
40HP |
1992 |
| Evinrude Johnson |
E40TEC |
40HP |
1989 |
| Evinrude Johnson |
E40TEE |
40HP |
1990, 1991 |
| Evinrude Johnson |
E40TEE |
40HP |
1992 |
| Evinrude Johnson |
E40TEL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E40TEL |
40HP |
1992 |
| Evinrude Johnson |
E40TLC |
40HP |
1989 |
| Evinrude Johnson |
E40TLE |
40HP |
1990, 1991 |
| Evinrude Johnson |
E40TLE |
40HP |
1992 |
| Evinrude Johnson |
E40TTL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E40TTL |
40HP |
1992 |
| Evinrude Johnson |
E48ESL |
48HP |
1989 |
| Evinrude Johnson |
E50BEC |
50HP |
1989 |
| Evinrude Johnson |
E50BEE |
50HP |
1990, 1991 |
| Evinrude Johnson |
E50BEE |
50HP |
1992 |
| Evinrude Johnson |
E50BEL |
50HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E50BEL |
50HP |
1992 |
| Evinrude Johnson |
E50J Jet |
35HP |
1991 |
| Evinrude Johnson |
E50J Jet |
35HP |
1992 |
| Evinrude Johnson |
E50TEL |
50HP |
1989, 1990, 1991 |
| Evinrude Johnson |
E50TEL |
50HP |
1992 |
| Evinrude Johnson |
E50TLC |
50HP |
1989 |
| Evinrude Johnson |
E50TLE |
50HP |
1990, 1991 |
| Evinrude Johnson |
E50TLE |
50HP |
1992 |
| Evinrude Johnson |
J40EC |
40HP |
1989 |
| Evinrude Johnson |
J40EE |
40HP |
1990, 1991 |
| Evinrude Johnson |
J40EE |
40HP |
1992 |
| Evinrude Johnson |
J40EL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J40EL |
40HP |
1992 |
| Evinrude Johnson |
J40RC |
40HP |
1989 |
| Evinrude Johnson |
J40RE |
40HP |
1990, 1991 |
| Evinrude Johnson |
J40RE |
40HP |
1992 |
| Evinrude Johnson |
J40RL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J40RL |
40HP |
1992 |
| Evinrude Johnson |
J40TEC |
40HP |
1989 |
| Evinrude Johnson |
J40TEE |
40HP |
1990, 1991 |
| Evinrude Johnson |
J40TEE |
40HP |
1992 |
| Evinrude Johnson |
J40TEL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J40TEL |
40HP |
1992 |
| Evinrude Johnson |
J40TLC |
40HP |
1989 |
| Evinrude Johnson |
J40TLE |
40HP |
1990, 1991 |
| Evinrude Johnson |
J40TLE |
40HP |
1992 |
| Evinrude Johnson |
J40TTL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J40TTL |
40HP |
1992 |
| Evinrude Johnson |
J50BEC |
50HP |
1989 |
| Evinrude Johnson |
J50BEE |
50HP |
1990, 1991 |
| Evinrude Johnson |
J50BEE |
50HP |
1992 |
| Evinrude Johnson |
J50BEL |
50HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J50BEL |
50HP |
1992 |
| Evinrude Johnson |
J50J Jet |
35HP |
1991 |
| Evinrude Johnson |
J50J Jet |
35HP |
1992 |
| Evinrude Johnson |
J50TEL |
50HP |
1989, 1990, 1991 |
| Evinrude Johnson |
J50TEL |
50HP |
1992 |
| Evinrude Johnson |
J50TLC |
50HP |
1989 |
| Evinrude Johnson |
J50TLE |
50HP |
1990, 1991 |
| Evinrude Johnson |
J50TLE |
50HP |
1992 |
| Evinrude Johnson |
TE40EL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
TE40EL |
40HP |
1992 |
| Evinrude Johnson |
TE40TEL |
40HP |
1990 |
| Evinrude Johnson |
TE50TLC |
50HP |
1989 |
| Evinrude Johnson |
TE50TLE |
50HP |
1989, 1990 |
| Evinrude Johnson |
TJ40EL |
40HP |
1989, 1990, 1991 |
| Evinrude Johnson |
TJ40EL |
40HP |
1992 |
| Evinrude Johnson |
TJ40TEL |
40HP |
1990 |
| Evinrude Johnson |
TJ50TLC |
50HP |
1989 |
| Evinrude Johnson |
TJ50TLE |
50HP |
1989, 1990 |
| Evinrude Johnson |
VE40EE |
40HP |
1990, 1991 |
| Evinrude Johnson |
VE40EE |
40HP |
1992 |
| Evinrude Johnson |
VE40EL |
40HP |
1990, 1991 |
| Evinrude Johnson |
VE40EL |
40HP |
1992 |
| Evinrude Johnson |
VE40TEL |
40HP |
1990, 1991 |
| Evinrude Johnson |
VE40TEL |
40HP |
1992 |
| Evinrude Johnson |
VE40TLE |
40HP |
1990, 1991 |
| Evinrude Johnson |
VE40TLE |
40HP |
1992 |
| Evinrude Johnson |
VE50BEE |
50HP |
1990, 1991 |
| Evinrude Johnson |
VE50BEE |
50HP |
1992 |
| Evinrude Johnson |
VE50BEL |
50HP |
1990, 1991 |
| Evinrude Johnson |
VE50BEL |
50HP |
1992 |
| Evinrude Johnson |
VE50TEL |
50HP |
1992 |
| Evinrude Johnson |
VE50TLE |
50HP |
1990, 1991 |
| Evinrude Johnson |
VE50TLE |
50HP |
1992 |
| Evinrude Johnson |
VJ40EE |
40HP |
1990, 1991 |
| Evinrude Johnson |
VJ40EE |
40HP |
1992 |
| Evinrude Johnson |
VJ40EL |
40HP |
1990, 1991 |
| Evinrude Johnson |
VJ40EL |
40HP |
1992 |
| Evinrude Johnson |
VJ40TEL |
40HP |
1990, 1991 |
| Evinrude Johnson |
VJ40TEL |
40HP |
1992 |
| Evinrude Johnson |
VJ40TLE |
40HP |
1990, 1991 |
| Evinrude Johnson |
VJ40TLE |
40HP |
1992 |
| Evinrude Johnson |
VJ50BEE |
50HP |
1990, 1991 |
| Evinrude Johnson |
VJ50BEE |
50HP |
1992 |
| Evinrude Johnson |
VJ50BEL |
50HP |
1990, 1991 |
| Evinrude Johnson |
VJ50BEL |
50HP |
1992 |
| Evinrude Johnson |
VJ50TEL |
50HP |
1992 |
| Evinrude Johnson |
VJ50TLE |
50HP |
1990, 1991 |
| Evinrude Johnson |
VJ50TLE |
50HP |
1992 |
