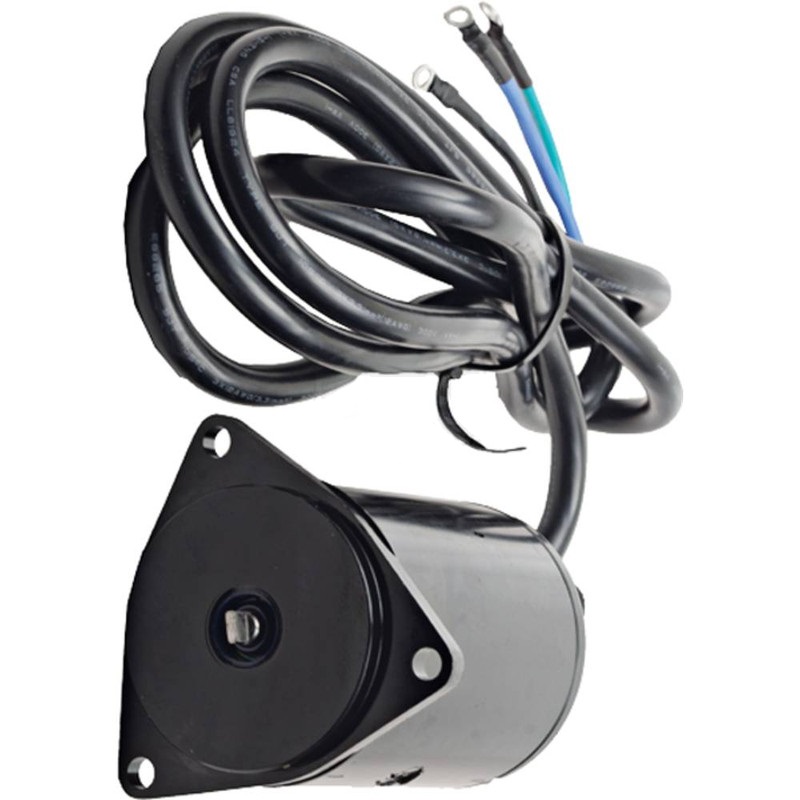

NEW Tilt/Trim Motor for EVINRUDE JOHNSON 70-235 HP Marine Outboard; 430-20005, 0-475, 40-476, EVC4001, EVC4002, 18-6761; LESTER 10805
$184.99
Specifications
| UNIT TYPE | Tilt Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| OD | 3.079″ |
| OD | 78.200 mm |
| SHAFT OD | 0.311″ |
| SHAFT OD | 7.900mm |
| LENGTH | 140.100 mm |
| LENGTH | 5.516″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| TERMINAL 4 SIZE | Wire |
| SHAFT | Tanged Shaft |
| WARRANTY | 1 Year |
| 3-Wire Connection |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0013 |
| EMP | 4-6761 |
| J&N ELECTRICAL PRODUCTS | 430-20005 |
| LESTER | 10805 |
| OMC OUTBOARD MARINE CORP | 0387277, 0582048, 0582155, 0584107, 387277, 582048, 582155, 584107 |
| PRESTOLITE | 40-475, 40-476, EVC4001, EVC4002 |
| SIERRA MARINE | 18-6761 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Evinrude Johnson | 100E | 100H | 1979 |
| Evinrude Johnson | 115E | 115H | 1978, 1979 |
| Evinrude Johnson | 140E | 140H | 1977, 1978, 1979 |
| Evinrude Johnson | 150E | 150H | 1978, 1979 |
| Evinrude Johnson | 175E | 175H | 1979 |
| Evinrude Johnson | 200E | 200H | 1976, 1977, 1978, 1979 |
| Evinrude Johnson | 235E | 235HP 2.7 | 1978, 1979 |
| Evinrude Johnson | 85E | 85H | 1978, 1979 |
| Evinrude Johnson | E100 | 100H | 1979 |
| Evinrude Johnson | E100ML | 100H | 1980 |
| Evinrude Johnson | E100TL | 100H | 1980 |
| Evinrude Johnson | E100TX | 100H | 1980 |
| Evinrude Johnson | E115 | 115H | 1978, 1979 |
| Evinrude Johnson | E115ML | 115H | 1980, 1981 |
| Evinrude Johnson | E115TL | 115H | 1980, 1981 |
| Evinrude Johnson | E115TX | 115H | 1980, 1981 |
| Evinrude Johnson | E140 | 140H | 1977, 1978, 1979 |
| Evinrude Johnson | E140ML | 140H | 1980, 1981 |
| Evinrude Johnson | E140TRL | 140H | 1980, 1981 |
| Evinrude Johnson | E140TRX | 140H | 1980, 1981 |
| Evinrude Johnson | E150 | 150H | 1978, 1979 |
| Evinrude Johnson | E150TRL | 150H | 1980, 1981 |
| Evinrude Johnson | E150TRX | 150H | 1980, 1981 |
| Evinrude Johnson | E175 | 175H | 1977, 1978, 1979 |
| Evinrude Johnson | E175TRL | 175H | 1980, 1981 |
| Evinrude Johnson | E175TRX | 175H | 1980, 1981 |
| Evinrude Johnson | E200 | 200H | 1976, 1977, 1978, 1979 |
| Evinrude Johnson | E200TRL | 200HP 2.5 | 1980, 1981 |
| Evinrude Johnson | E200TRX | 200HP 2.5 | 1980, 1981 |
| Evinrude Johnson | E235 | 235HP 2.7 | 1978, 1979 |
| Evinrude Johnson | E235TRL | 235HP 2.7 | 1980, 1981 |
| Evinrude Johnson | E235TRX | 235HP 2.7 | 1980, 1981 |
| Evinrude Johnson | E70 | 70H | 1978, 1979 |
| Evinrude Johnson | E70EL | 70H | 1980, 1981 |
| Evinrude Johnson | E70TL | 70H | 1981 |
| Evinrude Johnson | E75 | 75H | 1978, 1979 |
| Evinrude Johnson | E75ER | 75H | 1980, 1981 |
| Evinrude Johnson | E75ERL | 75H | 1980 |
| Evinrude Johnson | E75TRL | 75H | 1981 |
| Evinrude Johnson | E85 | 85H | 1978, 1979 |
| Evinrude Johnson | E85ML | 85H | 1980 |
| Evinrude Johnson | E85TL | 85H | 1980 |
| Evinrude Johnson | E85TX | 85H | 1980 |
| Evinrude Johnson | E90ML | 90H | 1981 |
| Evinrude Johnson | E90TL | 90H | 1981 |
| Evinrude Johnson | E90TX | 90H | 1981 |
| Evinrude Johnson | J100ML | 100H | 1980 |
| Evinrude Johnson | J100TRL | 100H | 1980 |
| Evinrude Johnson | J100TRX | 100H | 1980 |
| Evinrude Johnson | J115ML | 115H | 1980 |
| Evinrude Johnson | J115ML | 115H | 1981 |
| Evinrude Johnson | J115TL | 115H | 1980 |
| Evinrude Johnson | J115TL | 115H | 1981 |
| Evinrude Johnson | J115TX | 115H | 1980 |
| Evinrude Johnson | J115TX | 115H | 1981 |
| Evinrude Johnson | J140ML | 140H | 1980 |
| Evinrude Johnson | J140ML | 140H | 1981 |
| Evinrude Johnson | J140TL | 140H | 1980 |
| Evinrude Johnson | J140TL | 140H | 1981 |
| Evinrude Johnson | J140TX | 140H | 1980 |
| Evinrude Johnson | J140TX | 140H | 1981 |
| Evinrude Johnson | J150TL | 150H | 1980 |
| Evinrude Johnson | J150TL | 150H | 1981 |
| Evinrude Johnson | J150TX | 150H | 1980, 1981 |
| Evinrude Johnson | J175TL | 175H | 1980, 1981 |
| Evinrude Johnson | J200TL | 200HP 2.5 | 1980 |
| Evinrude Johnson | J200TL | 200HP 2.5 | 1981 |
| Evinrude Johnson | J200TX | 200HP 2.5 | 1980 |
| Evinrude Johnson | J200TX | 200HP 2.5 | 1981 |
| Evinrude Johnson | J235TL | 235HP 2.7 | 1980 |
| Evinrude Johnson | J235TL | 235HP 2.7 | 1981 |
| Evinrude Johnson | J235TX | 235HP 2.7 | 1980 |
| Evinrude Johnson | J235TX | 235HP 2.7 | 1981 |
| Evinrude Johnson | J70EL | 70H | 1980, 1981 |
| Evinrude Johnson | J70TL | 70H | 1981 |
| Evinrude Johnson | J75ER | 75H | 1980 |
| Evinrude Johnson | J75ER | 75H | 1981 |
| Evinrude Johnson | J75ERL | 75H | 1980 |
| Evinrude Johnson | J75TEL | 75H | 1981 |
| Evinrude Johnson | J75TRL | 75H | 1980, 1981 |
| Evinrude Johnson | J85ML | 85H | 1980 |
| Evinrude Johnson | J85TL | 85H | 1980 |
| Evinrude Johnson | J85TX | 85H | 1980 |
| Evinrude Johnson | J90ML | 90H | 1981 |
| Evinrude Johnson | J90TL | 90H | 1981 |
| Evinrude Johnson | J90TX | 90H | 1981 |
