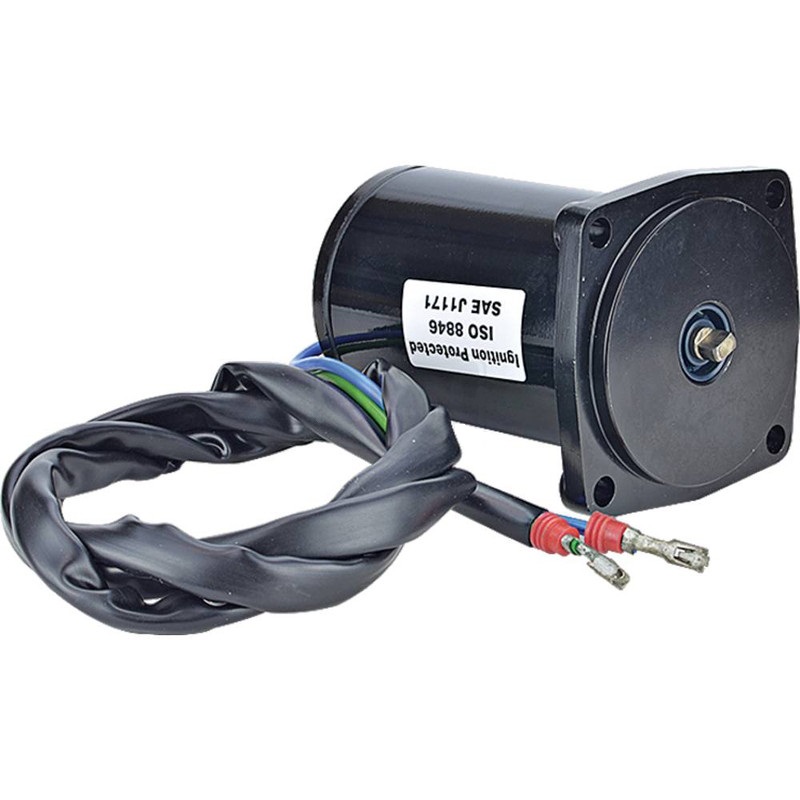

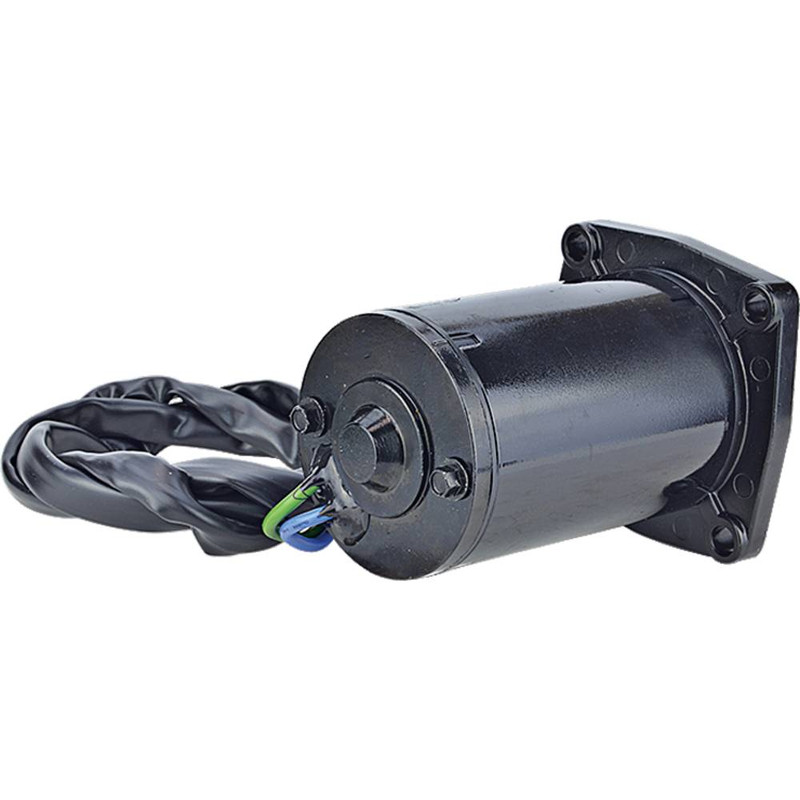

NEW Tilt/Trim Motor for EVINRUDE JOHNSON E25DGT, E50DSL, E60DSL & OTH Models; 430-22100, 5005822, 5005831, 5005875, 4-6815; LESTER 10867

$164.99

Email
Categories: ,

Specifications

UNIT TYPE Tilt/Trim Motor
CURRENT TYPE DC
VOLT 12
ROTATION DIRECTION Reversible
OD 2.520″
OD 64 mm
SHAFT OD 0.315″
SHAFT OD 8mm
LENGTH 120.500 mm
LENGTH 4.744″
TERMINAL 2 SIZE #12 Female WeatherPak
TERMINAL 3 SIZE #12 Female WeatherPak
SHAFT 4mm x 8mm Drive Tang
WARRANTY 1 Year
(4) 7.5mm Mounting Holes, 69.8mm Register & (2) 41″ Control Cables

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD TRM0086
EMP 4-6815
J&N ELECTRICAL PRODUCTS 430-22100
LESTER 10867
OMC OUTBOARD MARINE CORP 5005822, 5005831, 5005875
SEA-DOO 5005831

Applications

Part fit

MAKE MODEL ENGINE YEAR
Evinrude Johnson E25DGT 25H 2015, 2016
Evinrude Johnson E25DPG 25H 2015, 2016, 2017, 2018
Evinrude Johnson E25DPL 25H 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E25DPS 25H 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E25DTL 25H 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E25DTS 25H 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E30DGT 30H 2015, 2016, 2017, 2018
Evinrude Johnson E30DPG 30H 2015, 2016, 2017, 2018
Evinrude Johnson E30DPL 30H 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E30DPS 30H 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E30DTL 30H 2009, 2010, 2011, 2012
Evinrude Johnson E30DTS 30H 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E40DEL 40H 2004, 2005, 2006
Evinrude Johnson E40DGT 40H 2017, 2018
Evinrude Johnson E40DHL 40H 2012
Evinrude Johnson E40DHS 40H 2012
Evinrude Johnson E40DPG 40H 2015, 2016, 2017, 2018
Evinrude Johnson E40DPJ 40H 2016, 2017, 2018
Evinrude Johnson E40DPL 40H 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E40DSL 40H 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E40DTL 40H 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E50DGT 50H 2015, 2016, 2017, 2018
Evinrude Johnson E50DPG 50H 2015, 2016, 2017, 2018
Evinrude Johnson E50DPL 50H 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E50DSL 50H 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E50DTL 50H 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E60DGT 60H 2015, 2016, 2017, 2018
Evinrude Johnson E60DPG 60H 2015, 2016, 2017, 2018
Evinrude Johnson E60DPL 60H 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E60DSL 60H 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E60DTL 60H 2008, 2009, 2010, 2011, 2012, 2013, 2014
