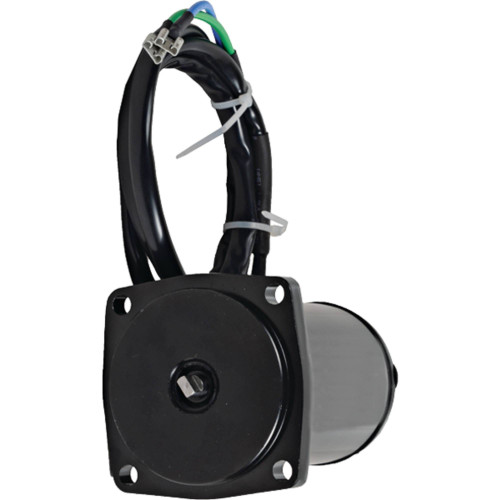

NEW Tilt/Trim Motor for EVINRUDE JOHNSON, HONDA & SUZUKI Outboard Engines; 430-22078, 36120ZV5-822, 5032670, 38100-87J10, 38100-87J11, 38100-87J12, 38100-87J20, 38100-87J21; LESTER 10861
$189.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| OD |
3.425″ |
| OD |
87 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
123 mm |
| LENGTH |
4.843″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
Slotted |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0085 |
| EMP |
4-6793 |
| HONDA |
36120-ZV5-822, 36120ZV5-822 |
| J&N ELECTRICAL PRODUCTS |
430-22078 |
| LESTER |
10861 |
| OMC OUTBOARD MARINE CORP |
5032670 |
| SIERRA MARINE |
18-6793 |
| SUZUKI |
38100-87J10, 38100-87J11, 38100-87J12, 38100-87J20, 38100-87J21 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Evinrude Johnson |
BJ40PL4 |
40H |
2004 |
| Evinrude Johnson |
BJ50PL4 |
50H |
2004 |
| Evinrude Johnson |
E40PL |
40H |
2001 |
| Evinrude Johnson |
E50PL |
50H |
2001 |
| Evinrude Johnson |
J40PL4 |
40H |
2002, 2003, 2004 |
| Evinrude Johnson |
J50PL4 |
50H |
2002, 2003, 2004 |
| Honda |
BF40 |
40H |
2002 |
| Honda |
BF40 |
40H |
2003 |
| Honda |
BF50 |
50H |
2002 |
| Honda |
BF50 |
50H |
2003 |
| Suzuki |
DF40QHL |
49.7ci – 40H |
2001, 2002 |
| Suzuki |
DF40TL |
49.7ci – 40H |
2001, 2002, 2003, 2004 |
| Suzuki |
DF40TL |
49.7ci – 40H |
2005, 2006, 2007, 2008, 2009, 2010 |
| Suzuki |
DF50QHL |
49.7ci – 50H |
2001, 2002 |
| Suzuki |
DF50TL |
49.7ci – 50H |
2001, 2002, 2003, 2004 |
| Suzuki |
DF50TL |
49.7ci – 50H |
2005, 2006, 2007, 2008, 2009, 2010 |
