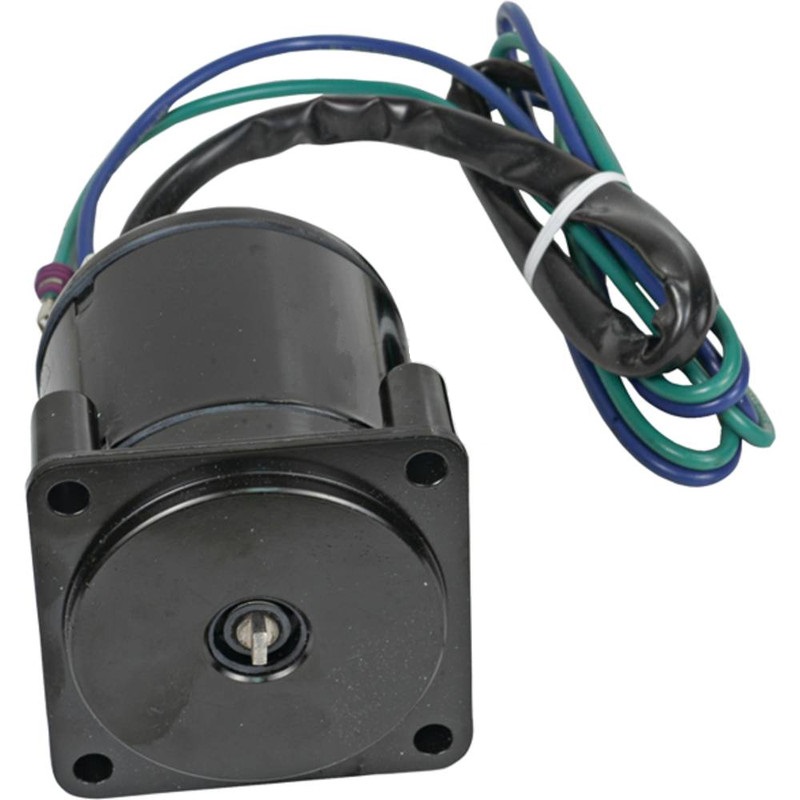

NEW Tilt/Trim Motor for EVINRUDE JOHNSON Outboard Engines; 430-22023, 0438786, 0439937, 438786, 439937, 5005254, 18-6281, 4-6281; LESTER 10844

$159.99

Email
Categories: ,

Specifications

UNIT TYPE Tilt/Trim Motor
CURRENT TYPE DC
ROTATION DIRECTION Reversible
VOLT 12
OD 2.976″
OD 75.600 mm
SHAFT OD 0.315″
SHAFT OD 8mm
LENGTH 104 mm
LENGTH 4.094″
TERMINAL 2 SIZE Wire
TERMINAL 3 SIZE Wire
SHAFT 2.5mm Drive Tang
WARRANTY 1 Year
2-Wire Configuration, Female Spade Terminals, (4) 7mm Unthreaded Mounting Holes

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD TRM0075
EMP 4-6281
J&N ELECTRICAL PRODUCTS 430-22023
LESTER 10844
OMC OUTBOARD MARINE CORP 0438786, 0439937, 438786, 439937, 5005254
SIERRA MARINE 18-6281

Applications

Part fit

MAKE MODEL ENGINE YEAR
Evinrude Johnson 150ML 150H 2003, 2004
Evinrude Johnson A115GHX 115H 2016, 2017, 2018
Evinrude Johnson A115SHX 115H 2016, 2017, 2018
Evinrude Johnson C150PL 150H 2017, 2018
Evinrude Johnson C150PLH 150H 2017, 2018
Evinrude Johnson C150PX 150H 2017, 2018
Evinrude Johnson C150PXC 150H 2017, 2018
Evinrude Johnson C150PXH 150H 2017, 2018
Evinrude Johnson C175PL 175H 2017, 2018
Evinrude Johnson C175PX 175H 2017, 2018
Evinrude Johnson C175PXC 175H 2017, 2018
Evinrude Johnson C200PL 200H 2017, 2018
Evinrude Johnson C200PX 200H 2017, 2018
Evinrude Johnson C200PXC 200H 2017, 2018
Evinrude Johnson DE150CX 150H 2012, 2013, 2014, 2015, 2016
Evinrude Johnson DE150PX 150H 2012, 2013, 2014, 2015, 2016
Evinrude Johnson DE200CX 200HP 2.6 2012, 2013, 2014, 2015, 2016
Evinrude Johnson DE200HX 200HP 3.3 2012, 2013, 2014, 2015
Evinrude Johnson DE200PX 200HP 2.6 2012, 2013, 2014, 2015, 2016
Evinrude Johnson DE200XC 200HP 3.3 2012, 2013, 2014, 2015
Evinrude Johnson DE225CX 225HP 3.3 2012, 2013, 2014, 2015
Evinrude Johnson DE225PX 225HP 3.3 2012, 2013, 2014, 2015
Evinrude Johnson DE250CX 250HP 3.3 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE250CZ 250HP 3.3 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE250PX 250HP 3.3 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE250PZ 250HP 3.3 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE300CX 300HP 3.4 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE300CZ 300HP 3.4 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE300PX 300HP 3.4 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson DE300PZ 300HP 3.4 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson E100FPL 100H 2004, 2005
Evinrude Johnson E100FSL 100H 2004, 2005
Evinrude Johnson E105DJL 105H 2016, 2017, 2018
Evinrude Johnson E115DBX 115H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E115DCX 115H 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E115DGX 115H 2015, 2016, 2017, 2018
Evinrude Johnson E115DHX 115H 2009, 2010, 2011, 2012
Evinrude Johnson E115DLX 115H 2008
Evinrude Johnson E115DPX 115H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E115FPL 115H 2006
Evinrude Johnson E115FPX 115H 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E115FPX 115H 2006
Evinrude Johnson E115FSL 115H 1998, 1999, 2000, 2001, 2003, 2004, 2005
Evinrude Johnson E115FSL 115H 2006
Evinrude Johnson E115FSX 115H 1998
Evinrude Johnson E115FTL 115H 1998
Evinrude Johnson E130DCX 130H 2009, 2010, 2011, 2012
Evinrude Johnson E130DPX 130H 2009, 2010, 2011, 2012
Evinrude Johnson E135DHL 135H 2013, 2014
Evinrude Johnson E135DHX 135H 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E135FCX 135H 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E135FCX 135H 2006
Evinrude Johnson E135FPL 135H 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E135FPL 135H 2006
Evinrude Johnson E135FPX 135H 2002, 2003, 2004, 2005
Evinrude Johnson E135FPX 135H 2006
Evinrude Johnson E135FSL 135H 2000, 2001, 2003, 2004, 2005
Evinrude Johnson E135FSL 135H 2006
Evinrude Johnson E135FSX 135H 2000, 2001
Evinrude Johnson E135HCX 135H 2013, 2014, 2015, 2016
Evinrude Johnson E135HGL 135H 2015, 2016, 2017, 2018
Evinrude Johnson E135HGX 135H 2015, 2016, 2017, 2018
Evinrude Johnson E135HSL 135H 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E150DBX 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E150DCX 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E150DGL 150H 2015, 2016, 2017, 2018
Evinrude Johnson E150DGX 150H 2015, 2016, 2017, 2018
Evinrude Johnson E150DHL 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E150DPL 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E150DPX 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E150DSL 150H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Evinrude Johnson E150FCX 150H 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E150FCX 150H 2006
Evinrude Johnson E150FHL 150H 2004, 2005
Evinrude Johnson E150FHL 150H 2006
Evinrude Johnson E150FPL 150H 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E150FPL 150H 2006
Evinrude Johnson E150FPX 150H 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E150FPX 150H 2006
Evinrude Johnson E150FSL 150H 1998, 1999, 2000, 2001, 2003, 2004, 2005
Evinrude Johnson E150FSL 150H 2006
Evinrude Johnson E150FSX 150H 1998
Evinrude Johnson E150GNL 150H 2015, 2016, 2017
Evinrude Johnson E150HGL 150H 2009, 2014, 2015, 2016, 2017
Evinrude Johnson E150HGX 150H 2009, 2014, 2015, 2016, 2017
Evinrude Johnson E150HSL 150H 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E150IC 150H 1997
Evinrude Johnson E150IL 150H 1997
Evinrude Johnson E150IL 150H 1998
Evinrude Johnson E150IX 150H 1997
Evinrude Johnson E150PL 150H 1997
Evinrude Johnson E150SNL 150H 2014, 2015, 2016, 2017
Evinrude Johnson E175DCX 175H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E175DGL 175H 2015, 2016
Evinrude Johnson E175DGX 175H 2015, 2016
Evinrude Johnson E175DMX 175H 2008
Evinrude Johnson E175DPL 175H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E175DPX 175H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E175DSL 175H 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E175FCX 175H 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E175FCX 175H 2006
Evinrude Johnson E175FPL 175H 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E175FPL 175H 2006
Evinrude Johnson E175FPX 175H 1999, 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E175FPX 175H 2006
Evinrude Johnson E175FSL 175H 1998, 1999, 2000, 2001, 2003, 2004, 2005
Evinrude Johnson E175FSL 175H 2006
Evinrude Johnson E175FSX 175H 1998
Evinrude Johnson E175FTL 175H 1998
Evinrude Johnson E175MFSX 175H 2005
Evinrude Johnson E200DCX 200HP 2.6 2005, 2007, 2008, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200DCX 200HP 3.3 2009
Evinrude Johnson E200DGL 200HP 2.6 2015, 2016
Evinrude Johnson E200DGX 200HP 2.6 2015, 2016
Evinrude Johnson E200DHL 200HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E200DHX 200HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200DPL 200HP 2.6 2005, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E200DPX 200HP 2.6 2005, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200DSL 200HP 2.6 2005, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200FCS 200HP 3.0 2000
Evinrude Johnson E200FCX 200HP 3.0 1999, 2000, 2001
Evinrude Johnson E200FCX 200HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E200FHL 200HP 3.3 2003, 2004, 2005
Evinrude Johnson E200FPL 200HP 3.0 1999, 2000, 2001
Evinrude Johnson E200FPL 200HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E200FPX 200HP 3.0 1999, 2000, 2001
Evinrude Johnson E200FPX 200HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E200FSL 200HP 3.0 1999, 2000, 2001
Evinrude Johnson E200FSL 200HP 3.3 2003, 2004, 2005
Evinrude Johnson E200HCX 200HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200HGL 200HP 3.3 2014, 2015, 2016, 2017
Evinrude Johnson E200HSL 200HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E200HVL 200HP 3.3 2008, 2009, 2010, 2011, 2012
Evinrude Johnson E225DCX 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E225DCZ 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
Evinrude Johnson E225DHL 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E225DHX 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E225DPL 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
Evinrude Johnson E225DPX 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E225DPZ 225HP 3.3 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
Evinrude Johnson E225FCX 225HP 3.0 1999, 2000, 2001
Evinrude Johnson E225FCX 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225FCZ 225HP 3.0 1999, 2000, 2001
Evinrude Johnson E225FCZ 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225FGL 225HP 3.0 2000
Evinrude Johnson E225FHL 225HP 3.0 2000, 2001
Evinrude Johnson E225FHL 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225FHX 225HP 3.3 2004, 2005
Evinrude Johnson E225FPL 225HP 3.0 1999, 2000, 2001
Evinrude Johnson E225FPL 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225FPX 225HP 3.0 1999, 2000, 2001
Evinrude Johnson E225FPX 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225FPZ 225HP 3.0 1999, 2000, 2001
Evinrude Johnson E225FPZ 225HP 3.3 2002, 2003, 2004, 2005
Evinrude Johnson E225HGL 225HP 3.3 2014, 2015, 2016, 2017
Evinrude Johnson E225HGX 225HP 3.3 2015
Evinrude Johnson E225HSL 225HP 3.3 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E250DCX 250HP 3.3 2005
Evinrude Johnson E250DCX 250HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E250DCZ 250HP 3.3 2005
Evinrude Johnson E250DCZ 250HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson E250DHL 250HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E250DHX 250HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014
Evinrude Johnson E250DPL 250HP 3.3 2005
Evinrude Johnson E250DPL 250HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012
Evinrude Johnson E250DPX 250HP 3.3 2005
Evinrude Johnson E250DPX 250HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Evinrude Johnson E250DPZ 250HP 3.3 2005
Evinrude Johnson E250DPZ 250HP 3.3 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson E250FCX 250HP 3.3 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E250FCZ 250HP 3.3 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E250FGL 250HP 3.3 2000
Evinrude Johnson E250FPL 250HP 3.3 2000, 2003, 2004, 2005
Evinrude Johnson E250FPX 250HP 3.3 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E250FPZ 250HP 3.3 2000, 2001, 2002, 2003, 2004, 2005
Evinrude Johnson E250HGL 250HP 3.4 2009, 2014, 2015, 2016
Evinrude Johnson E250HGX 250HP 3.4 2009, 2014, 2015, 2016
Evinrude Johnson E250HSL 250HP 3.4 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Evinrude Johnson E300DCX 300HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Evinrude Johnson E300DCZ 300HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson E300DGX 300HP 3.4 2014, 2015, 2016
Evinrude Johnson E300DPX 300HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Evinrude Johnson E300DPZ 300HP 3.4 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Evinrude Johnson E300DSL 300HP 3.4 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Evinrude Johnson E65JDPL 65H 2005
Evinrude Johnson E75DPL 75H 2004
Evinrude Johnson E75DPL 75H 2005
Evinrude Johnson E75FPL 75H 2000, 2001, 2002, 2003
Evinrude Johnson E75FV 75H 2001
Evinrude Johnson E90DPL 90H 2004
Evinrude Johnson E90DPL 90H 2005
Evinrude Johnson E90DPX 90H 2004
Evinrude Johnson E90DPX 90H 2005
Evinrude Johnson E90DSL 90H 2004
Evinrude Johnson E90DSL 90H 2005
Evinrude Johnson E90FPL 90H 1999, 2000, 2001, 2002, 2003
Evinrude Johnson E90FSL 90H 1998, 2003
Evinrude Johnson E90FTL 90H 1998
Evinrude Johnson E90FVL 90H 2001
Evinrude Johnson E90HGX 90H 2015, 2016, 2017, 2018
Evinrude Johnson E90HSX 90H 2015, 2016, 2017, 2018
Evinrude Johnson E90WDPL 90H 2005
Evinrude Johnson J105WPL 105H 2003
Evinrude Johnson J115FSL 115H 1998
Evinrude Johnson J115FSX 115H 1998
Evinrude Johnson J115FTL 115H 1998
Evinrude Johnson J115GL 115H 2003, 2004, 2005
Evinrude Johnson J115GL 115H 2006
Evinrude Johnson J115PL 115H 2002, 2003, 2004, 2005
Evinrude Johnson J115PL 115H 2006
Evinrude Johnson J115PX 115H 2002, 2003, 2004, 2005
Evinrude Johnson J115PX 115H 2006
Evinrude Johnson J115VL 115H 2002
Evinrude Johnson J115WPL 115H 2004, 2005
Evinrude Johnson J150CX 150H 2002, 2003, 2004, 2005
Evinrude Johnson J150CX 150H 2006
Evinrude Johnson J150FCX 150H 1998
Evinrude Johnson J150FSL 150H 1998
Evinrude Johnson J150FSX 150H 1998
Evinrude Johnson J150GL 150H 2003, 2004, 2005
Evinrude Johnson J150GL 150H 2006
Evinrude Johnson J150IC 150H 1997
Evinrude Johnson J150IL 150H 1997
Evinrude Johnson J150IL 150H 1998
Evinrude Johnson J150IX 150H 1997
Evinrude Johnson J150ML 150H 2005
Evinrude Johnson J150MX 150H 2003, 2004, 2005
Evinrude Johnson J150PL 150H 1997
Evinrude Johnson J150PL 150H 2002, 2003, 2004, 2005
Evinrude Johnson J150PL 150H 2006
Evinrude Johnson J150PX 150H 2002, 2003, 2004, 2005
Evinrude Johnson J150PX 150H 2006
Evinrude Johnson J150VL 150H 2002
Evinrude Johnson J175CX 175H 2002, 2003, 2004, 2005
Evinrude Johnson J175CX 175H 2006
Evinrude Johnson J175FCX 175H 1998
Evinrude Johnson J175FSL 175H 1998
Evinrude Johnson J175FSX 175H 1998
Evinrude Johnson J175FTL 175H 1998
Evinrude Johnson J175GL 175H 2003, 2004, 2005
Evinrude Johnson J175GL 175H 2006
Evinrude Johnson J175MX 175H 2003, 2004, 2005
Evinrude Johnson J175PL 175H 2002, 2003, 2004, 2005
Evinrude Johnson J175PL 175H 2006
Evinrude Johnson J175PX 175H 2002, 2003, 2004, 2005
Evinrude Johnson J175PX 175H 2006
Evinrude Johnson J175VL 175H 2002
Evinrude Johnson J90FSL 90H 1998
Evinrude Johnson J90FTL 90H 1998
Evinrude Johnson J90GL 90H 2003, 2004, 2005
Evinrude Johnson J90GL 90H 2006
Evinrude Johnson J90PL 90H 2002, 2003, 2004, 2005
Evinrude Johnson J90PL 90H 2006
Evinrude Johnson J90PX 90H 2004, 2005
Evinrude Johnson J90PX 90H 2006
Evinrude Johnson J90VL 90H 2002
Evinrude Johnson RE115FLS 115H 2000, 2001
Evinrude Johnson RE115FPL 115H 2000
Evinrude Johnson RE115FSS 115H 2000, 2001
Evinrude Johnson RE115FXS 115H 2000, 2001
Evinrude Johnson RE135FCS 135H 2000, 2001
Evinrude Johnson RE135FLS 135H 2000, 2001
Evinrude Johnson RE135FXS 135H 2000, 2001
Evinrude Johnson RE150FCS 150H 2000, 2001
Evinrude Johnson RE150FLS 150H 2000, 2001
Evinrude Johnson RE150FSS 150H 2000, 2001
Evinrude Johnson RE150FXS 150H 2000, 2001
Evinrude Johnson RE175FCS 175H 2000, 2001
Evinrude Johnson RE175FLS 175H 2000, 2001
Evinrude Johnson RE175FSS 175H 2000, 2001
Evinrude Johnson RE175FXS 175H 2000, 2001
Evinrude Johnson RE200FCS 200H 2001
Evinrude Johnson RE200FLS 200H 2000, 2001
Evinrude Johnson RE200FSS 200H 2000, 2001
Evinrude Johnson RE200FXS 200H 2000, 2001
Evinrude Johnson RE225FCS 225H 2000, 2001
Evinrude Johnson RE225FGS 225H 2000
Evinrude Johnson RE225FHS 225H 2000, 2001
Evinrude Johnson RE225FLS 225H 2000
Evinrude Johnson RE225FXS 225H 2000, 2001
Evinrude Johnson RE225FZS 225H 2000, 2001
Evinrude Johnson RE75FP 75H 2000, 2001
Evinrude Johnson RE90FP 90H 2000, 2001
