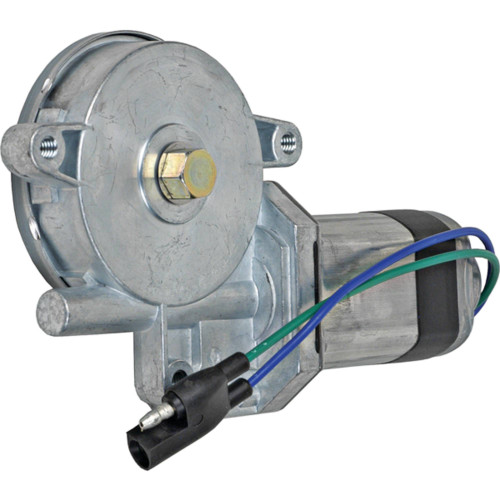

NEW Tilt/Trim Motor for KAWASAKI JT 750, JT 900 & JH 1100 Series; 430-22054, 4-6875, 21174-3703; LESTER 10853
$199.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| ROTATION DIRECTION |
Reversible |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
12mm Hex |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0074 |
| EMP |
4-6875 |
| J&N |
430-22054 |
| KAWASAKI |
21174-3703 |
| LESTER |
10853 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Kawasaki |
JH 1100 ZXi |
1071cc |
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Kawasaki |
JH 750 750 Zxi |
743cc |
1996, 1997 |
| Kawasaki |
JH 750 SS XI |
743cc |
1996, 1997 |
| Kawasaki |
JH 750 Zxi |
743cc |
1996, 1997 |
| Kawasaki |
JH 900 ZXi |
891cc |
1996, 1997 |
| Kawasaki |
JT 750 STS |
743cc |
1996, 1997 |
| Kawasaki |
JT 750 STX |
743cc |
1998 |
| Kawasaki |
JT 900 STX |
891cc |
1997, 1998 |
