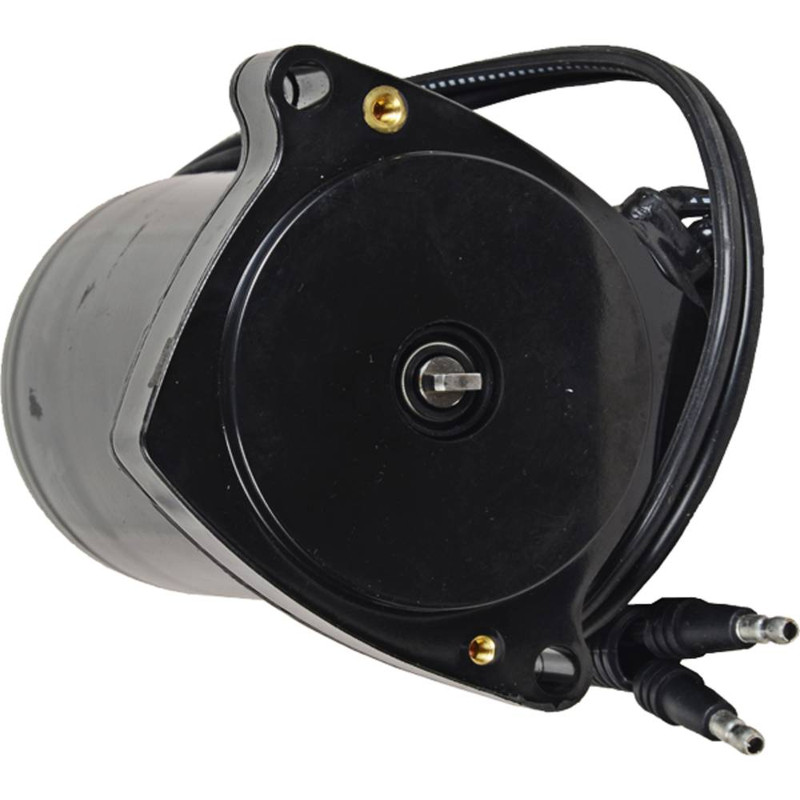

NEW Tilt/Trim Motor for MERCURY MARINE Outboard Engines; 430-22011, 828708, 828708T, 878265A1, 878265A4, 8M0031551, 18-6773, 4-6773; LESTER 10826
$169.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.953″ |
| OD |
75 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
124.700 mm |
| LENGTH |
4.909″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
Tanged Shaft |
| WARRANTY |
1 Year |
|
(2) 6.5mmID Mounting Holes, (2) 3-1/2 Foot Long Wire Harness With Bullet Connectors & 1/4″ Mounting Holes |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0009 |
| EMP |
4-6773 |
| J&N ELECTRICAL PRODUCTS |
430-22011 |
| LESTER |
10826 |
| MERCURY MARINE |
828708, 828708T, 878265A1, 878265A4, 8M0031551 |
| SIERRA MARINE |
18-6773 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Mercury Marine |
150XRG Mag III |
|
1995 |
| Mercury Marine |
All Models |
135 H |
All |
| Mercury Marine |
All Models |
150 H |
All |
| Mercury Marine |
All Models |
175 H |
All |
| Mercury Marine |
All Models |
200 H |
All |
| Mercury Marine |
All Models |
225 H |
All |
