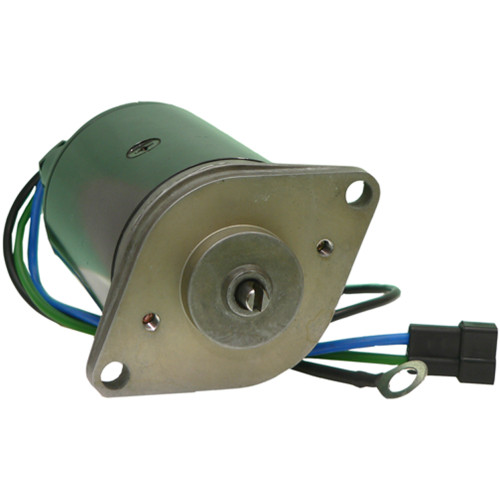

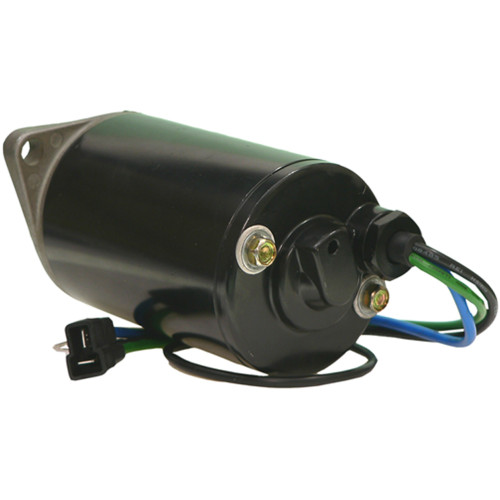

NEW Tilt/Trim Motor for OMC 120, 140, 185, 200 & OTH Models; 430-20004, 0982058, 0982706, 982058, 982706, 40-393, 40-416, EVD4001, EVD4002; LESTER 10803
$139.99
Specifications
| UNIT TYPE |
Tilt Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| ROTATION DIRECTION |
Reversible |
| OD |
2.909″ |
| OD |
73.900 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
154.900 mm |
| LENGTH |
6.098″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| TERMINAL 4 SIZE |
Wire |
| SHAFT |
Slotted |
| WARRANTY |
1 Year |
|
3-Wire Harness, 2 Spade Terminal Plug and 1 Ring Terminal |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0006 |
| EMP |
4-6755 |
| J&N |
430-20004 |
| LESTER |
10803 |
| OMC OUTBOARD MARINE CORP |
0982058, 0982706, 982058, 982706 |
| PRESTOLITE |
40-393, 40-416, EVD4001, EVD4002 |
| SIERRA MARINE |
18-6755 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| OMC |
120 |
120HP |
1979, 1980, 1981 |
| OMC |
140 |
140HP |
1979, 1980, 1981 |
| OMC |
185 |
185HP |
1979, 1980 |
| OMC |
2.5L |
4cyl 153ci 2.5L GM |
1982, 1983, 1984, 1985 |
| OMC |
200 |
200HP |
1979, 1980, 1981 |
| OMC |
230 |
230HP |
1979, 1980, 1981 |
| OMC |
260 |
260HP |
1979, 1980, 1981 |
| OMC |
3.0L |
4cyl 181ci 3.0L GM |
1982, 1983, 1984, 1985 |
| OMC |
3.8L |
6cyl 231ci 3.8L GM |
1981, 1982, 1983, 1984, 1985 |
| OMC |
4.3L |
6cyl 262ci 4.3L GM |
1985 |
| OMC |
5.0L |
8cyl 305ci 5.0L GM |
1982, 1983, 1984, 1985 |
| OMC |
5.7L |
8cyl 350ci 5.7L GM |
1982, 1983, 1984, 1985 |
| OMC |
8.2L |
8cyl 502ci 8.2L GM |
1984, 1985 |
