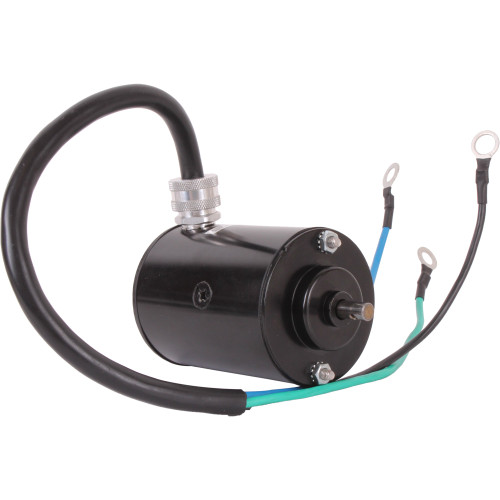

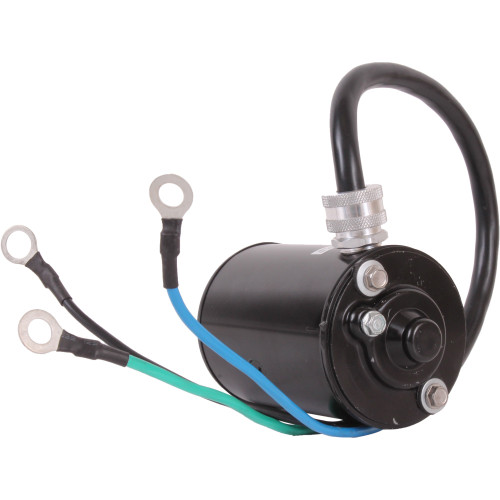

NEW Tilt/Trim Motor for OMC 2.5L, 3.0L & OTH Models; 430-20095, 0979768, 0981638, 0982069, 0982073, 0983318, 979768, 981638, 982069, 982073, 983318; LESTER 10809
$209.99
Specifications
| UNIT TYPE |
Tilt Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| ROTATION DIRECTION |
Reversible |
| OD |
2.807″ |
| OD |
71.300 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
138.600 mm |
| LENGTH |
5.457″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| TERMINAL 4 SIZE |
Wire |
| SHAFT |
3.2mmOD Roll Pin Hole |
| WARRANTY |
1 Year |
|
Includes 3 Wire Harness With 3 Ring Terminals |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
430-20003, TRM0017 |
| EMP |
4-6764 |
| J&N |
430-20003, 430-20095, 430-22095 |
| LESTER |
10809 |
| OMC OUTBOARD MARINE CORP |
0979768, 0981638, 0982069, 0982073, 0983318, 979768, 981638, 982069, 982073, 983318 |
| PRESTOLITE |
40-391, 40-468, ESQ4005, ESQ4008, ESQ4010, ESQ4017 |
| SIERRA MARINE |
18-6764 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| OMC |
120 |
120H |
1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
| OMC |
140 |
140H |
1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
| OMC |
165 |
165H |
1972, 1973, 1974, 1975 |
| OMC |
185 |
185H |
1978, 1979, 1980 |
| OMC |
2.5L |
4cyl 153ci 2.5L GM |
1982, 1983, 1984, 1985 |
| OMC |
200 |
200H |
1979, 1981 |
| OMC |
225 |
225H |
1978 |
| OMC |
230 |
230H |
1979, 1980, 1981 |
| OMC |
260 |
260H |
1979, 1980, 1981 |
| OMC |
3.0L |
4cyl 181ci 3.0L GM |
1982, 1983, 1984, 1985 |
