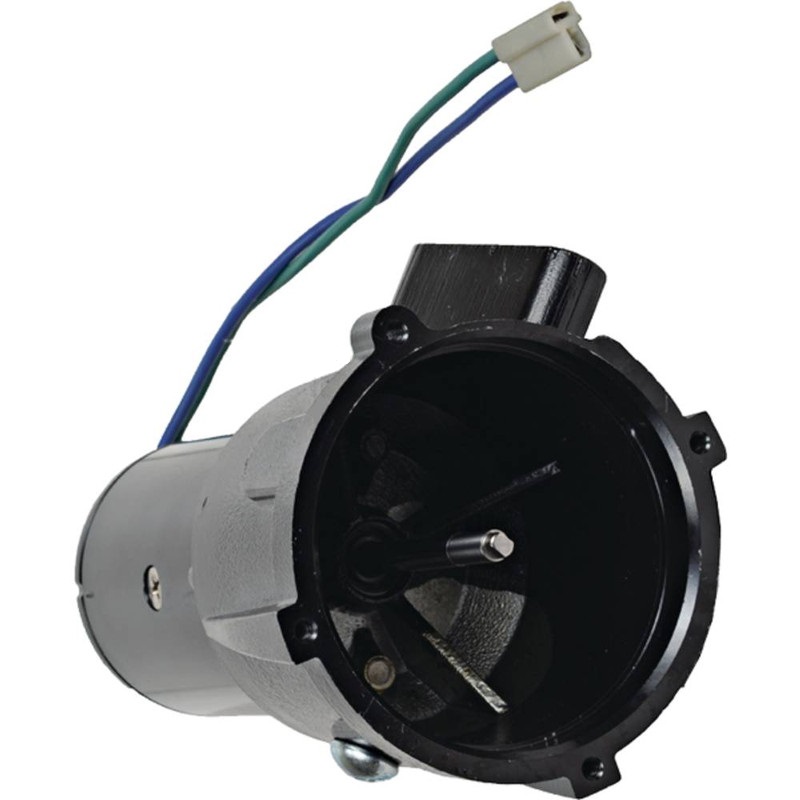

NEW Tilt/Trim Motor for OMC Sterndrive (inboard/outboard) Engines; 430-22091, 0982343, 0982957, 0983195, 982343, 982957, 983195, 40-438, ESQ4012; LESTER 10807
$194.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| OD |
3.705″ |
| OD |
94.100 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
208 mm |
| LENGTH |
8.189″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
4mm Tang, 75mm Length |
| WARRANTY |
1 Year |
|
Includes Reservoir |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0038 |
| DELCO |
RT05024 |
| EMP |
4-6257 |
| J&N ELECTRICAL PRODUCTS |
430-22091 |
| LESTER |
10807 |
| OMC OUTBOARD MARINE CORP |
0982343, 0982957, 0983195, 982343, 982957, 983195 |
| PRESTOLITE |
40-438, ESQ4012 |
| SIERRA MARINE |
18-6257 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| OMC |
3.8L |
6cyl 231ci 3.8L GM |
1981, 1982, 1983, 1984, 1985 |
| OMC |
4.3L |
6cyl 262ci 4.3L GM |
1985 |
| OMC |
5.0L |
8cyl 305ci 5.0L GM |
1982, 1983, 1984, 1985 |
| OMC |
5.7L |
8cyl 350ci 5.7L GM |
1982, 1983, 1984, 1985 |
