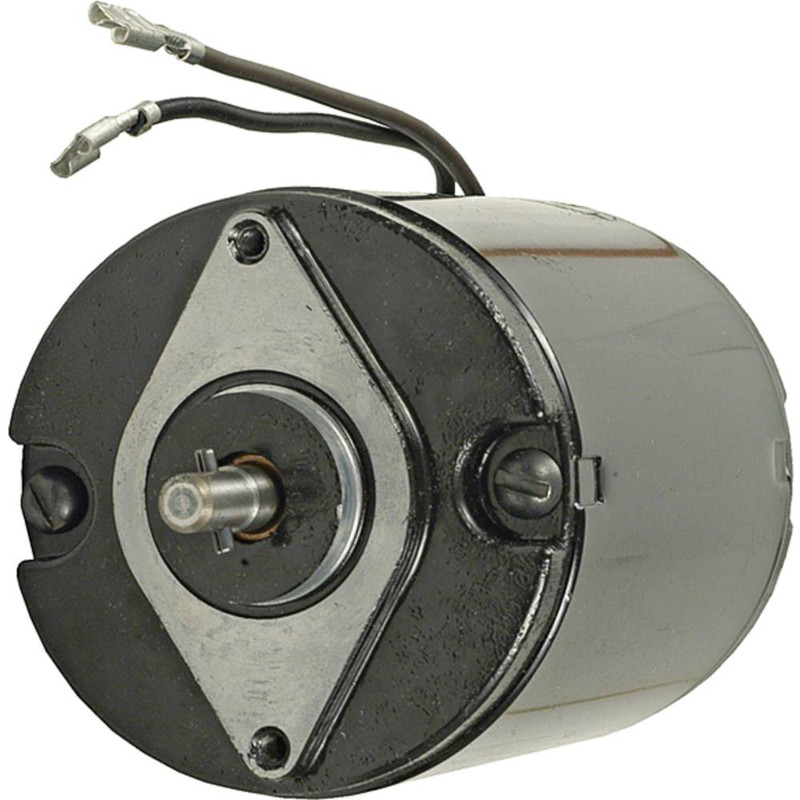

NEW Tilt/Trim Motor for VOLVO PENTA Various Models; 430-20006, 850834, 850834-3, 18-6758; LESTER 10818
$159.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.969″ |
| OD |
75.400 mm |
| SHAFT OD |
0.283″ |
| SHAFT OD |
7.200mm |
| LENGTH |
130.100 mm |
| LENGTH |
5.122″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
Includes Roll Pin |
| WARRANTY |
1 Year |
|
2-Wire Harness With Female Spade Terminals |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0020 |
| EMP |
4-6758 |
| J&N ELECTRICAL PRODUCTS |
430-20006 |
| LESTER |
10818 |
| SIERRA MARINE |
18-6758 |
| VOLVO |
850834, 850834-3 |
