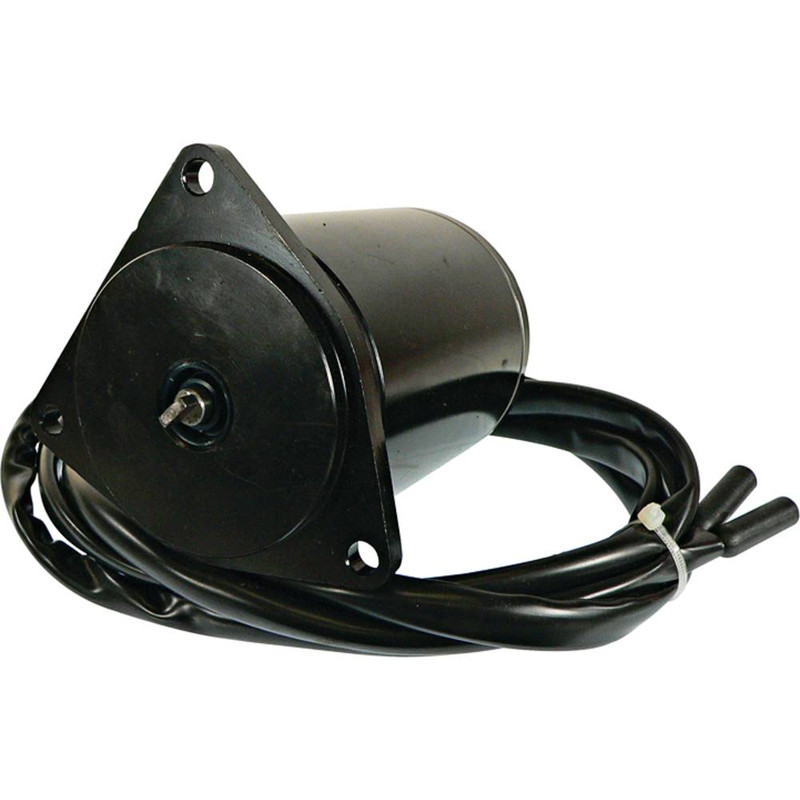

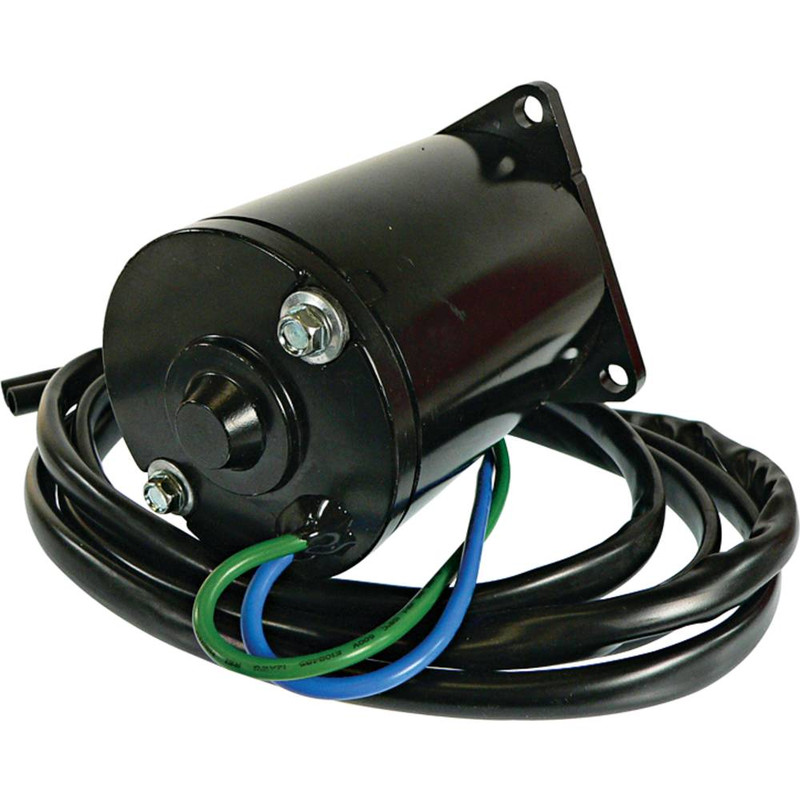

NEW Tilt/Trim Motor for YAMAHA 115ETL, 200ETX, V6 EXCEL X & OTH Outboard Engines; 430-22150, 4-2460XMP, 6G5-43880-00-00, 6G5-43880-01-00; LESTER 10825
$194.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| CRITICAL NOTE | Verify Registration OD, Shaft Tang Dimensions, Two-Wire Replacement For Three-Wire OE Unit |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 3.063″ |
| OD | 77.800 mm |
| SHAFT OD | 0.311″ |
| SHAFT OD | 7.900mm |
| LENGTH | 129.100 mm |
| LENGTH | 5.083″ |
| TERMINAL 2 SIZE | Butt Connector |
| TERMINAL 3 SIZE | Butt Connector |
| SHAFT | 2.5mm W x 6mm H Tang |
| WARRANTY | 1 Year |
| ADD’L INFO | 68.3mm Registration OD, Includes: Harness With 32V/50A Fuse & (2) 12V 20A/30A Relays, O-Ring, Shaft Adapter With 2.1mm W x 6mm H Tang |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0094 |
| EMP | 4-2460XMP |
| J&N ELECTRICAL PRODUCTS | 430-22150 |
| YAMAHA | 6G5-43880-00-00, 6G5-43880-01-00 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Yamaha | 115ETL | 115Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 115ETLJD | 115Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 115ETX | 115Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 115TJR | 115Hp | 1991 |
| Yamaha | 115TLR | 115Hp | 1991 |
| Yamaha | 115TXR | 115Hp | 1991 |
| Yamaha | 130ETL | 130Hp | 1988, 1989, 1990 |
| Yamaha | 130ETX | 130Hp | 1988, 1989, 1990 |
| Yamaha | 130TLR | 130Hp | 1991 |
| Yamaha | 130TXR | 130Hp | 1991 |
| Yamaha | 150ETL | 150Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 150ETX | 150Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 150TLR | 150Hp | 1991 |
| Yamaha | 150TXR | 150Hp | 1991 |
| Yamaha | 175ETL | 175Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 175ETX | 175Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 175TLR | 175Hp | 1991 |
| Yamaha | 175TXR | 175Hp | 1991 |
| Yamaha | 200ETL | 200Hp | 1987, 1988, 1989, 1990 |
| Yamaha | 200ETLJD | 200Hp | 1989, 1990 |
| Yamaha | 200ETX | 200Hp | 1984, 1987, 1989, 1990 |
| Yamaha | 200TJR | 200Hp | 1991 |
| Yamaha | 200TLR | 200Hp | 1991 |
| Yamaha | 200TXR | 200Hp | 1991 |
| Yamaha | 225ETL | 225Hp | 1990 |
| Yamaha | 225ETX | 225Hp | 1990 |
| Yamaha | 225TLR | 225Hp | 1991 |
| Yamaha | 225TXR | 225Hp | 1991 |
| Yamaha | C115TLR | 115Hp | 1991 |
| Yamaha | L130ETX | 130Hp | 1989, 1990 |
| Yamaha | L130TXR | 130Hp | 1991 |
| Yamaha | L150ETX | 150Hp | 1987, 1988, 1989, 1990 |
| Yamaha | L150TXR | 150Hp | 1991 |
| Yamaha | L200ETX | 200Hp | 1987, 1988, 1989, 1990 |
| Yamaha | L200TXR | 200Hp | 1991 |
| Yamaha | P150TLR | 150Hp | 1991 |
| Yamaha | P200TLR | 200Hp | 1991 |
| Yamaha | PROV150L | 150Hp | 1987, 1988, 1989, 1990 |
| Yamaha | V6 EXCEL L | 225Hp | 1987, 1988, 1989 |
| Yamaha | V6 EXCEL X | 225Hp | 1987, 1988, 1989 |
