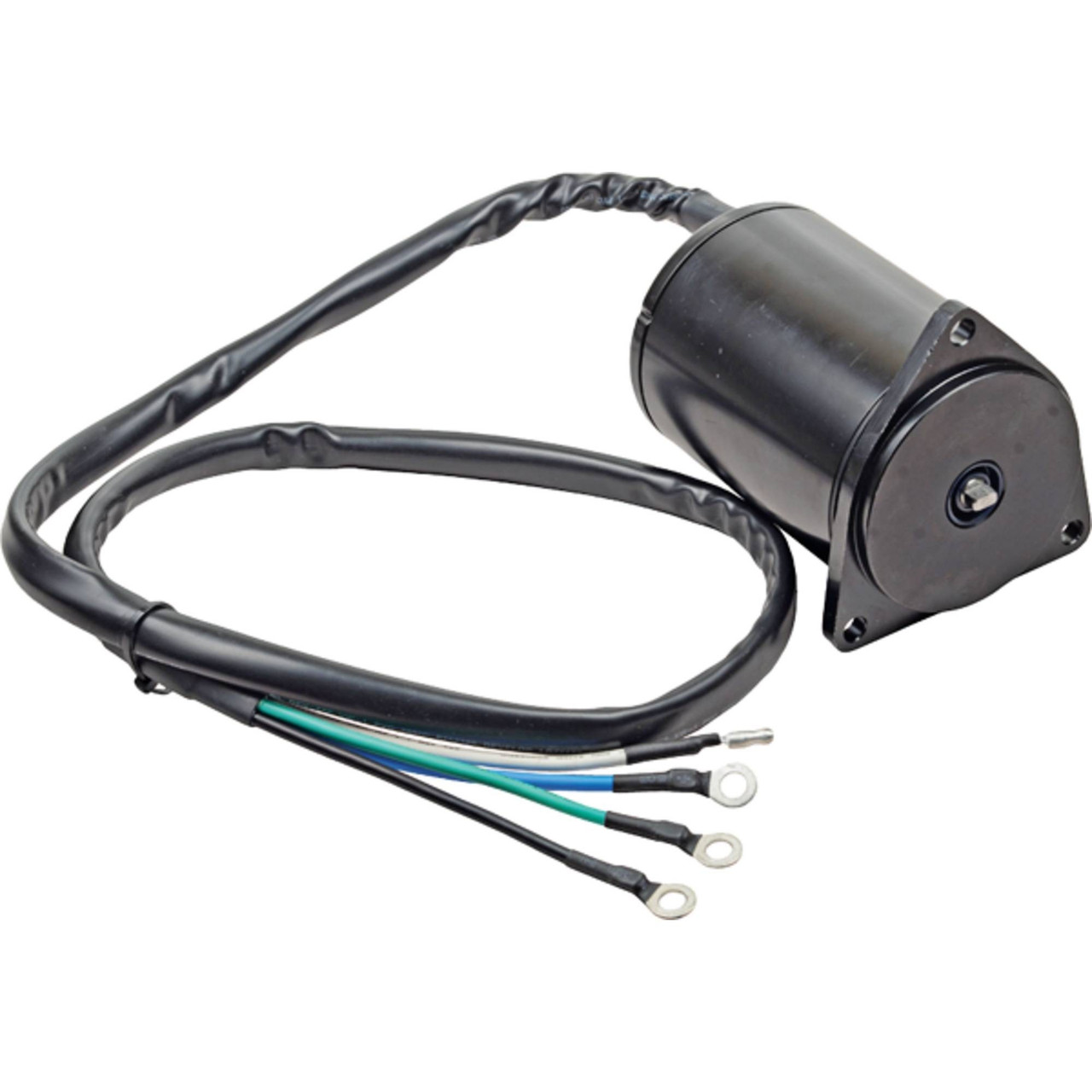

NEW Tilt/Trim Motor for YAMAHA 250ETX, 250TUR 225 – 250 HP Outboard Engines; 430-22080, 18-6782, 61A43880-01, 61A43880-02; LESTER 10831
$199.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| OD |
3.583″ |
| OD |
91 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
126.200 mm |
| LENGTH |
4.969″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| TERMINAL 4 SIZE |
Wire |
| TERMINAL 5 SIZE |
Wire |
| SHAFT |
Slotted |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0044 |
| EMP |
4-6782 |
| J&N ELECTRICAL PRODUCTS |
430-22080 |
| LESTER |
10831 |
| SIERRA MARINE |
18-6782 |
| YAMAHA |
61A43880-01, 61A43880-02 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
250ETX |
250H |
1990 |
| Yamaha |
250TUR |
250H |
1991, 1992, 1993, 1994, 1995 |
| Yamaha |
250TXR |
250H |
1991, 1992, 1993, 1994, 1995 |
| Yamaha |
L225TUR |
225H |
1995, 1996 |
| Yamaha |
L225TUR |
225H |
1997, 1998 |
| Yamaha |
L225TXR |
225H |
1995, 1996 |
| Yamaha |
L225TXR |
225H |
1997, 1998, 1999 |
| Yamaha |
L250ETX |
250H |
1990 |
| Yamaha |
L250TUR |
250H |
1992, 1993, 1994, 1995, 1996 |
| Yamaha |
L250TUR |
250H |
1997, 1998, 1999 |
| Yamaha |
L250TXR |
250H |
1991, 1992, 1993, 1994, 1995, 1996 |
| Yamaha |
L250TXR |
250H |
1997, 1998, 1999 |
| Yamaha |
LX225TXR |
225H |
2000, 2001, 2002 |
| Yamaha |
LX225TXR |
250H |
2003 |
| Yamaha |
LX250TUR |
250H |
2000, 2001, 2002 |
| Yamaha |
LX250TXR |
250H |
2000, 2001, 2002, 2003 |
| Yamaha |
S225TUR |
225H |
1996 |
| Yamaha |
S225TUR |
225H |
1997, 1998, 1999 |
| Yamaha |
S225TXR |
225H |
1996 |
| Yamaha |
S225TXR |
225H |
1997, 1998, 1999 |
| Yamaha |
S250TUR |
250H |
1996 |
| Yamaha |
S250TUR |
250H |
1997, 1998, 1999 |
| Yamaha |
S250TXR |
250H |
1996 |
| Yamaha |
S250TXR |
250H |
1997, 1998, 1999 |
| Yamaha |
SX225TUR |
225H |
2000, 2001, 2002, 2003 |
| Yamaha |
SX225TXR |
225H |
2000, 2001, 2002, 2003 |
| Yamaha |
SX250TUR |
250H |
2000, 2001, 2002, 2003 |
| Yamaha |
SX250TXR |
250H |
2000, 2001, 2002, 2003 |
