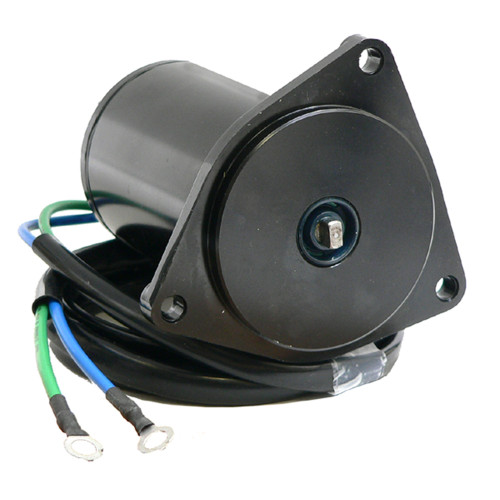

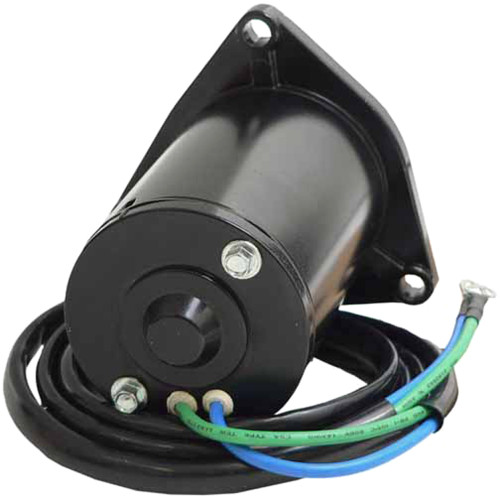

NEW Tilt/Trim Motor for YAMAHA 40 – 90 HP Outboard Engines; 430-22028, 4-6781, 18-6781, 6H1-43880-02; LESTER 10830

$149.99

Email
Categories: ,

Specifications

UNIT TYPE Tilt/Trim Motor
CURRENT TYPE DC
ROTATION DIRECTION Reversible
VOLT 12
OD 2.520″
OD 64 mm
SHAFT OD 0.315″
SHAFT OD 8mm
LENGTH 119 mm
LENGTH 4.685″
TERMINAL 2 SIZE Wire
TERMINAL 3 SIZE Wire
SHAFT 4mm Drive Tang
WARRANTY 1 Year
2-Wire Configuration, Ring Terminals, (3) 6mm Unthreaded Mounting Holes

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD TRM0025
EMP 4-6781
J&N ELECTRICAL PRODUCTS 430-22028
LESTER 10830
SIERRA MARINE 18-6781
YAMAHA 6H1-43880-02

Applications

Part fit

MAKE MODEL ENGINE YEAR
Yamaha 40EJR 40HP 1994
Yamaha 40ELR 40HP 1994
Yamaha 40ESR 40HP 1994
Yamaha 40MJH 40HP 1994
Yamaha 40MLH 40HP 1994
Yamaha 40MSH 40HP 1994
Yamaha 40PLR 40HP 1994
Yamaha 40TLR 40HP 1994
Yamaha 50TLH 50HP 1992, 1993, 1994
Yamaha 60TLR 60HP 2001, 2002, 2003, 2004, 2005, 2006
Yamaha 70TLR 70HP 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Yamaha 90TJR 90HP 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Yamaha 90TLR 90HP 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
Yamaha B90TLR 90HP 1998, 1999
Yamaha C55ELR 55HP 1994, 1995
Yamaha C55TLR 55HP 1994, 1995
Yamaha C60ELR 60HP 1996
Yamaha C60TLR 60HP 1996, 1997, 1998, 1999, 2000, 2001
Yamaha C70TLR 70HP 2000, 2001
Yamaha C75TLR 75HP 1994, 1995, 1996, 1997, 1998, 1999
Yamaha C80TLR 80HP 1997
Yamaha C85TLR 85HP 1992, 1993, 1994, 1995, 1996
Yamaha C90TLR 90HP 1997, 1998, 1999, 2000, 2001
Yamaha P50TLR 50HP 1993
Yamaha P60TLH 60HP 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
Yamaha P75TLH 75HP 1996, 1997, 1998, 1999
