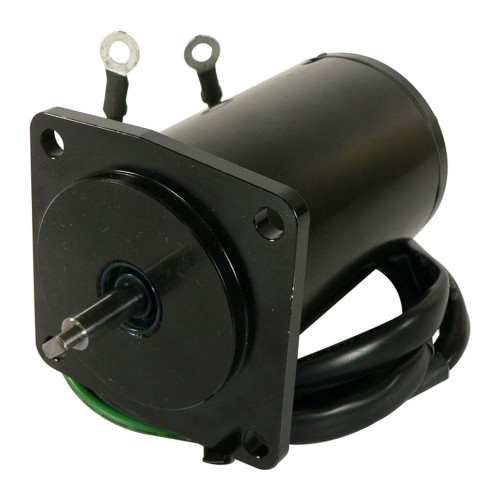

NEW Tilt/Trim Motor for YAMAHA 75 – 100 HP Outboard Engines; 430-22066, 4-6787, 18-6787, 67F43880-00-00; LESTER 10862
$229.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Reversible |
| VOLT |
12 |
| OD |
2.543″ |
| OD |
64.600 mm |
| SHAFT OD |
0.315″ |
| SHAFT OD |
8mm |
| LENGTH |
142.500 mm |
| LENGTH |
5.610″ |
| TERMINAL 2 SIZE |
Wire |
| TERMINAL 3 SIZE |
Wire |
| SHAFT |
4mm x 8mm Drive Tang |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
TRM0087 |
| EMP |
4-6787 |
| J&N ELECTRICAL PRODUCTS |
430-22066 |
| LESTER |
10862 |
| SIERRA MARINE |
18-6787 |
| YAMAHA |
67F43880-00-00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
F100 |
100H |
1999, 2000, 2001, 2002, 2003 |
| Yamaha |
F100TLR |
100H |
1999, 2000, 2001, 2002, 2003 |
| Yamaha |
F100TXR |
100H |
1999, 2000, 2001, 2002, 2003 |
| Yamaha |
F75 |
75H |
2003, 2004 |
| Yamaha |
F75TLR |
75H |
2003, 2004 |
| Yamaha |
F80 |
80H |
1999, 2000, 2001, 2002, 2003 |
| Yamaha |
F80TJR |
80H |
2002, 2003 |
| Yamaha |
F80TLR |
80H |
2000, 2001, 2002, 2003 |
| Yamaha |
F80TXR |
80H |
1999, 2000 |
| Yamaha |
F90 |
90H |
2003, 2004 |
| Yamaha |
F90TJR |
90H |
2003, 2004 |
| Yamaha |
F90TLR |
90H |
2003, 2004 |
