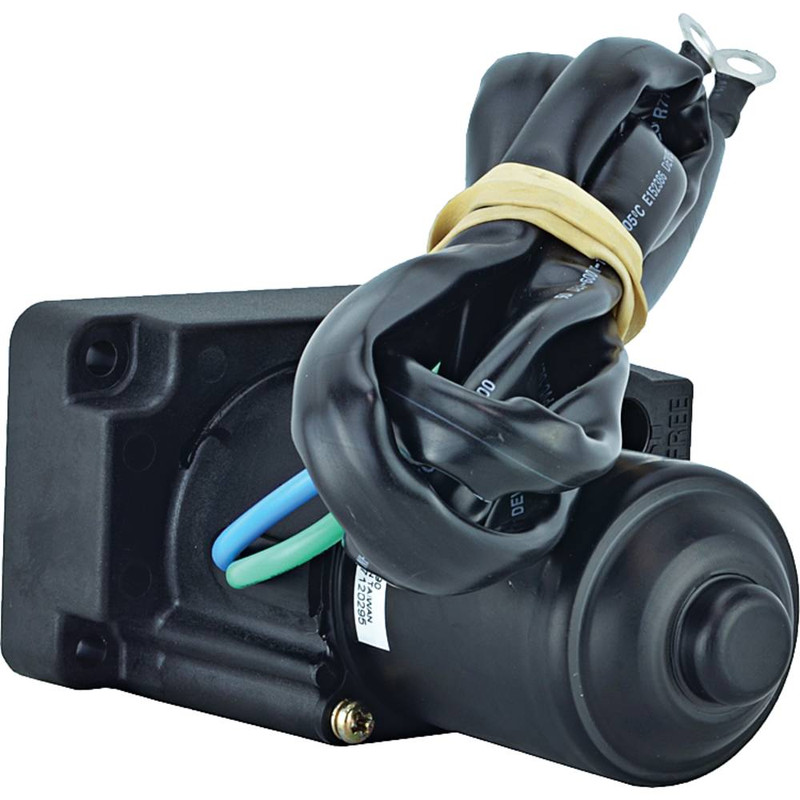

NEW Tilt/Trim Motor for YAMAHA F15CELH, F15CESH, F15CMLH &OTH Outboard Engines; 430-22155, TRM0110, 69A43880-00-00, 69A43880-01-00
$184.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| VOLT |
12 |
| ROTATION DIRECTION |
Reversible |
| OD |
1.862″ |
| OD |
47.300 mm |
| SHAFT OD |
0.339″ |
| SHAFT OD |
8.600mm |
| LENGTH |
134 mm |
| LENGTH |
5.276″ |
| TERMINAL 2 SIZE |
6.4mm |
| TERMINAL 3 SIZE |
6.4mm |
| SHAFT |
9T |
| CURRENT TYPE |
DC |
| WARRANTY |
1 Year |
|
42.5″ Harness and Shaft Protrudes From Housing |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
430-22155, TRM0110 |
| YAMAHA |
69A43880-00-00, 69A43880-01-00 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Yamaha |
F15CELH |
15HP |
2007, 2008 |
| Yamaha |
F15CESH |
15HP |
2007, 2008, 2011 |
| Yamaha |
F15CMLH |
15HP |
2007, 2008 |
| Yamaha |
F15CMSH |
15HP |
2007, 2008 |
| Yamaha |
F15CPLH |
15HP |
2007, 2008, 2009, 2010, 2011 |
| Yamaha |
F15LPHA |
15HP |
2012, 2013, 2014, 2015, 2016, 2017 |
| Yamaha |
F15PLH |
15HP |
2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha |
F15PLR |
15HP |
2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha |
F20LPA |
20HP |
2012, 2013, 2014, 2015, 2016, 2017 |
| Yamaha |
F20LPHA |
20HP |
2012, 2013, 2014, 2015, 2016, 2017 |
| Yamaha |
F20PLH |
20HP |
2007, 2008, 2009, 2010, 2011 |
| Yamaha |
F20PLR |
20HP |
2007, 2008, 2009, 2010, 2011 |
