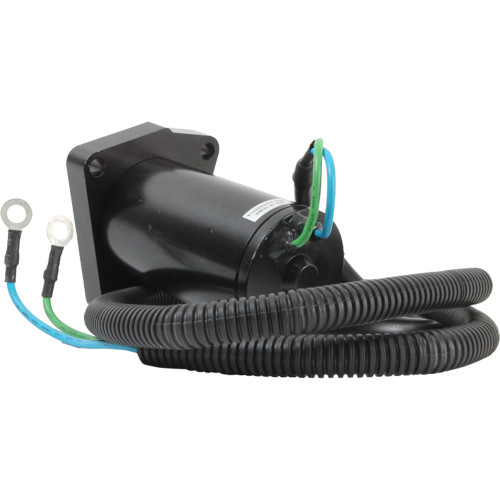

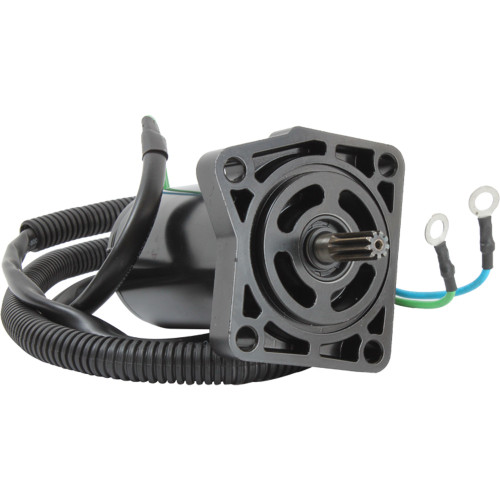

NEW Tilt/Trim Motor for YAMAHA F30LA, F40BMLH, T25LA & OTH Models; 430-22112, 67C-43880-00-00, 67C-43880-01-00
$299.99
Specifications
| UNIT TYPE | Tilt/Trim Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| ROTATION DIRECTION | Reversible |
| OD | 2.047″ |
| OD | 52 mm |
| SHAFT OD | 0.346″ |
| SHAFT OD | 8.800mm |
| LENGTH | 133 mm |
| LENGTH | 5.236″ |
| TERMINAL 2 SIZE | Wire |
| TERMINAL 3 SIZE | Wire |
| SHAFT | 9 Spline |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | TRM0100 |
| J&N ELECTRICAL PRODUCTS | 430-22112 |
| YAMAHA | 67C-43880-00-00, 67C-43880-01-00 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| amaha | F30LA | 30H | 2014, 2015, 2016 |
| Yamaha | F30TLR | 30H | 2001, 2002, 2003, 2004, 2005, 2006 |
| Yamaha | F40BEJR | 40H | 2008 |
| Yamaha | F40BMJH | 40H | 2008 |
| Yamaha | F40BMLH | 40H | 2008 |
| Yamaha | F40BTLR | 40H | 2008 |
| Yamaha | F40EJR | 40H | 2003, 2004, 2005, 2006, 2007 |
| Yamaha | F40ESR | 40H | 2000 |
| Yamaha | F40ESR | 40H | 2001, 2002, 2003, 2004 |
| Yamaha | F40LA | 40H | 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 |
| Yamaha | F40MJH | 40H | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha | F40MLH | 40H | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha | F40MSH | 40H | 2001, 2002, 2003, 2004, 2005, 2006 |
| Yamaha | F40TLR | 40H | 2000 |
| Yamaha | F40TLR | 40H | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Yamaha | T25LA | 25H | 2010, 2011, 2012, 2013, 2014, 2015, 2016 |
| Yamaha | T25TLR | 25H | 2001, 2002, 2003, 2004, 2005, 2006 |
