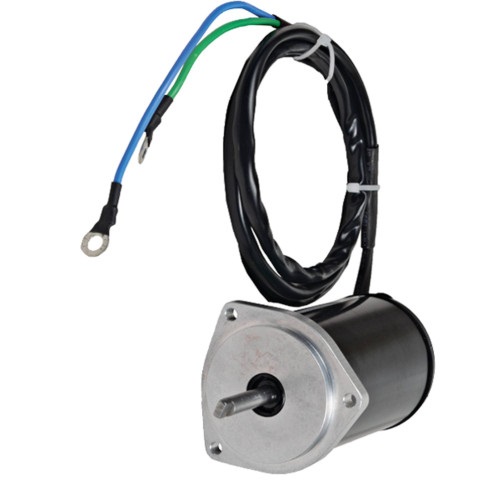

NEW Tilt/Trim Motor for YAMAHA Outboard Engines; 430-22090, 4-6811, 62Y43880-02, 69W43880-09, CS3-43880-00; LESTER 10834
$159.99
Specifications
| UNIT TYPE |
Tilt/Trim Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| OD | 2.504″ |
| OD | 63.600 mm |
| SHAFT OD | 0.315″ |
| SHAFT OD | 8mm |
| LENGTH | 152.500 mm |
| LENGTH | 6.004″ |
| TERMINAL 2 SIZE | Eyelet |
| TERMINAL 3 SIZE | Eyelet |
| SHAFT | 35.5mm L, 4mm W x 5mm L Tang |
| WARRANTY | 1 Year |
| (3) 5.5mm ID Unthreaded Mounting Holes, Mounting Ears 8mm Thick |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 430-22094, TRM0071 |
| EMP | 4-6811 |
| J&N ELECTRICAL PRODUCTS | 430-22048, 430-22090, 430-22094 |
| LESTER | 10834 |
| YAMAHA | 62Y43880-02, 69W43880-09, CS3-43880-00 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Yamaha | 40EJR | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40ELR | 40H | 1995, 1996, 1997, 1998 |
| Yamaha | 40ESR | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40MJH | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40MJH | 40H | 2000 |
| Yamaha | 40MJH | 40H | 2001 |
| Yamaha | 40MLH | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40MLH | 40H | 2000 |
| Yamaha | 40MLH | 40H | 2001 |
| Yamaha | 40MSH | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40TLH | 40H | 1996, 1997 |
| Yamaha | 40TLR | 40H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 40TLR | 40H | 2000 |
| Yamaha | 40TLR | 40H | 2001, 2002 |
| Yamaha | 40TLR | 40H | 2003, 2004, 2005, 2006 |
| Yamaha | 50EJR | 50H | 1995, 1996, 1997, 1998, 1999 |
| Yamaha | 50EJR | 50H | 2000 |
| Yamaha | 50EJR | 50H | 2001 |
| Yamaha | 50ELR | 50H | 1995, 1997, 1998 |
| Yamaha | 50TLH | 50H | 1995, 1996, 1997 |
| Yamaha | 50TLR | 50H | 1996, 1997 |
| Yamaha | 50TLR | 50H | 2001, 2002 |
| Yamaha | 50TLR | 50H | 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 |
| Yamaha | C40TLR | 40H | 1997, 1998, 1999 |
| Yamaha | C40TLR | 40H | 2000 |
| Yamaha | C40TLR | 40H | 2001 |
| Yamaha | C40TLR | 40H | 2002 |
| Yamaha | C40TLR | 40H | 2003 |
| Yamaha | C50TLR | 50H | 1998, 1999, 2000 |
| Yamaha | C50TLR | 50H | 2001 |
| Yamaha | F40TLR | 40H | 1999 |
| Yamaha | F50TJR | 50H | 2002, 2003 |
| Yamaha | F50TLH | 50H | 1996, 1997, 1998 |
| Yamaha | F50TLR | 50H | 1996, 1997, 1998, 1999 |
| Yamaha | F50TLR | 50H | 2000 |
| Yamaha | F50TLR | 50H | 2001, 2002 |
| Yamaha | F50TLR | 50H | 2003, 2004 |
| Yamaha | F60TJR | 50H | 2002 |
| Yamaha | F60TJR | 60H | 2003, 2004 |
| Yamaha | F60TLR | 60H | 2002, 2003, 2004 |
| Yamaha | F70LA | 70H | 2010, 2011 |
| Yamaha | F70LA | 70H | 2012, 2013, 2014, 2015, 2016 |
| Yamaha | P40TLH | 40H | 1998 |
| Yamaha | P40TLR | 40H | 1998 |
| Yamaha | P50TLR | 50H | 1995, 1996 |
| Yamaha | T50TLR | 50H | 1996, 1997, 1998 |
| Yamaha | T50TLR | 50H | 2000 |
| Yamaha | T50TLR | 50H | 2001, 2002 |
| Yamaha | T50TLR | 50H | 2003, 2004 |
| Yamaha | T60TLR | 60H | 2003, 2004 |
