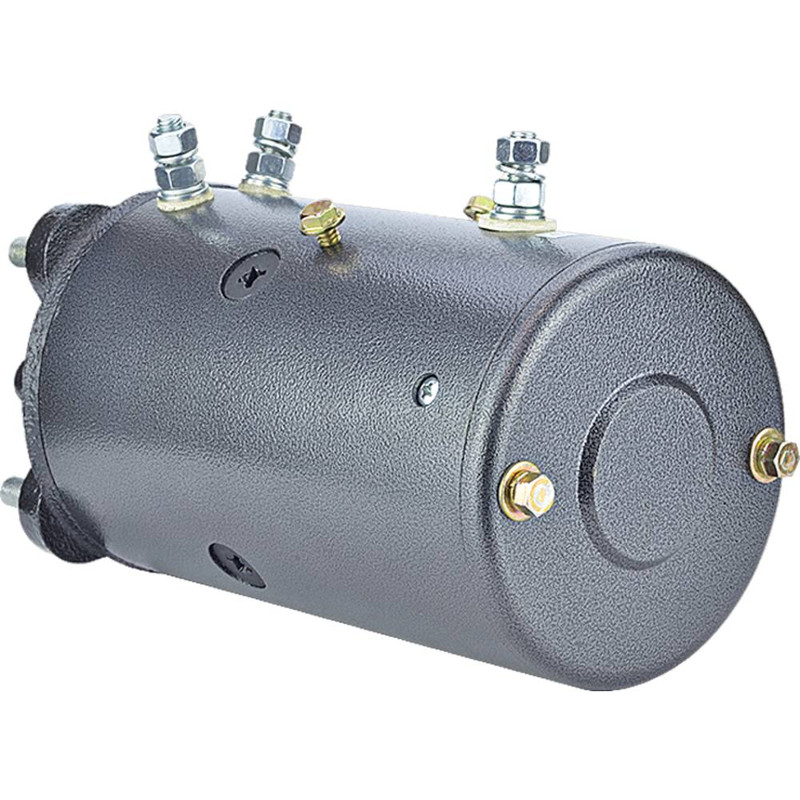

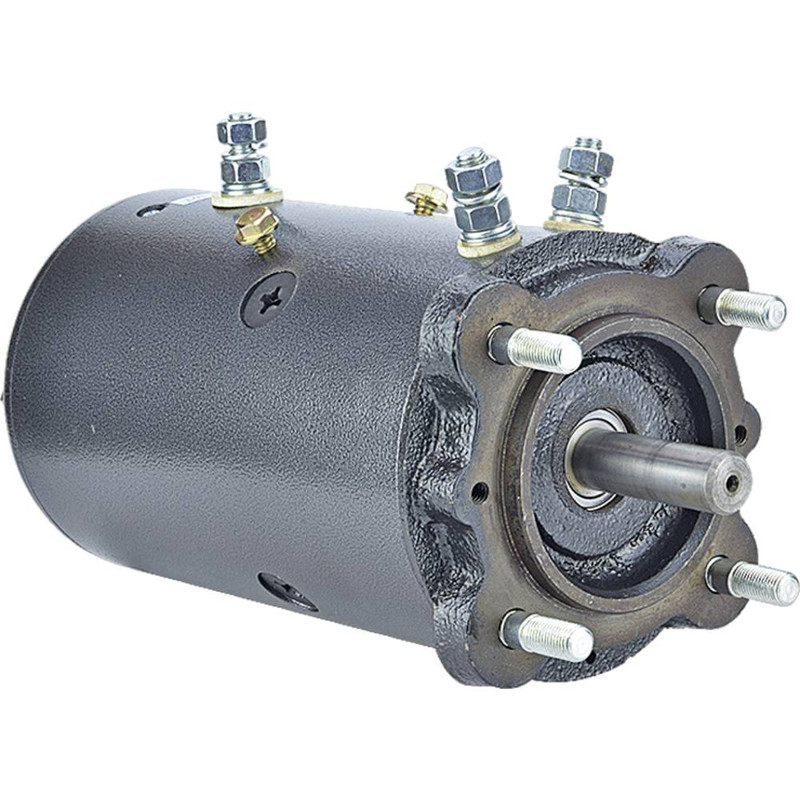

NEW Winch Motor; 430-22132, LRW0018, W-7627
$199.99
Specifications
| UNIT | Winch Motor |
| CURRENT TYPE | DC |
| ROTATION DIRECTION | Reversible |
| POWER | 3.600 kw |
| HP | 4.828 |
| OD | 114.500 mm |
| OD | 4.508″ |
| SHAFT OD | 0.622″ |
| SHAFT OD | 15.800mm |
| LENGTH | 248 mm |
| LENGTH | 9.764″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Accepts Woodruff Key |
| WARRANTY | 1 Year |
| (4) 3/8-24 Threaded Studs At Drive End |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0018 |
| J & N | 430-22132 |
| WESTERN MOTORS | W-7627 |
