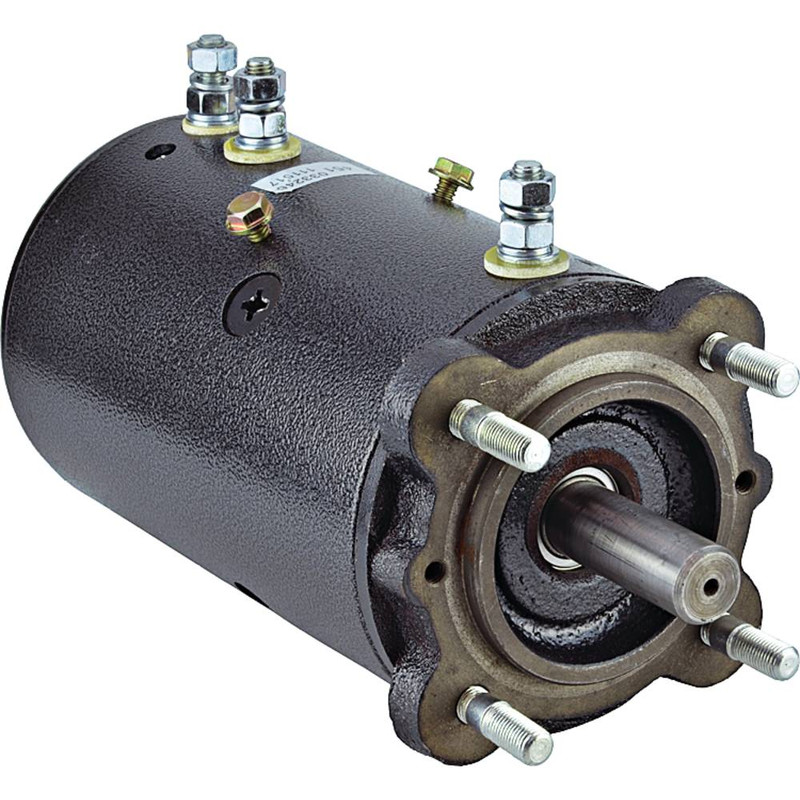

NEW Winch Motor for LIFTMORE & RAMSEY Applications; 430-20097, MUR6202, MUR6302, W-9144, W-8933, W-9143, W-6900, W-9133; LESTER 5687HD
$199.99
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| CRITICAL NOTE | Aftermarket Units May Differ In Configuration And Length From The OEM Units; Please Review The Specifications To Assure Proper Fitment. |
| ROTATION DIRECTION | Reversible |
| VOLT | 12 |
| POWER | 3.580 kw |
| HP | 4.801 |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 250 mm |
| LENGTH | 9.843″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| Double Ball Bearing, Mounting Plate with (4) 3/8-24 Threaded Mounting Holes |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0015 |
| J & N | 430-20000, 430-20032, 430-20036, 430-20092, 430-20097 |
| LESTER | 5687HD |
| PRESTOLITE | MUR6202, MUR6302, MBJ-4201, MBJ-4202, MBJ-4204, MBJ-4207, MBJ-4209, MBJ-4402, MBJ-4403, MBJ-4405, MBJ-4407, MBJ-4409, MBJ-4410, MBJ-4411, MBJ-4412, MBJ-4415, MBJ-6201 |
| OTH. PART NUMBERS | 458108, 458001, P5-534, M-3300 30516, 540-001, 645041, 79017, 46-2287, 46-4187 |
| WESTERN MOTORS | W-9144, W-8933, W-9143, W-6900, W-9133 |
