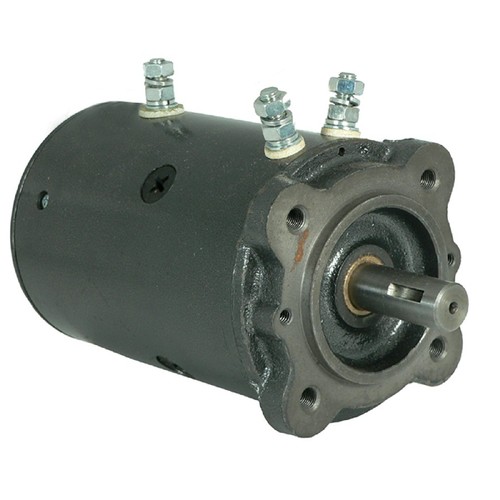

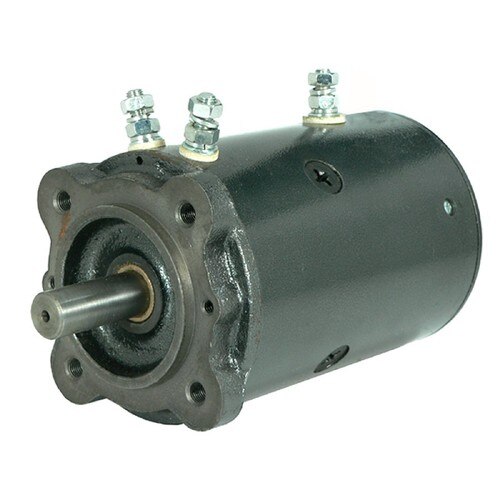

NEW Winch Motor for PIERCE WINCH, VIME WINCH & RAMSEY WINCH Applications; 430-20013, 458002, 458005, 46-2106, 46-2289, 46-3523, 46-4210, MMD4001, MMD4401, MMD6102, MUX6302; LESTER 10730
$189.99
Specifications
| UNIT TYPE | Winch Motor |
| CRITICAL NOTE | Aftermarket Units may differ in Configuration And Length from the OEM units; Please review The Specifications to assure proper fitment |
| CURRENT TYPE | DC |
| VOLT | 24 |
| POWER | 2.600 kw |
| HP | 3.487 |
| ROTATION DIRECTION | Reversible |
| OD | 114.300 mm |
| OD | 4.500″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 236.500 mm |
| LENGTH | 9.311″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Keyway |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LPL0025 |
| ARROWHEAD (OEM) | PLMUX6302 |
| J & N | 430-20013 |
| LESTER | 10730 |
| BARSANCO | 540-012 |
| DIXIE | S-5081 |
| DIXIE NEW | 405-10201 |
| EMS | 10730N |
| MINNPAR | 67-2145 |
| PRESTOLITE | 46-2289 |
| PRESTOLITE | MMD4401 |
| PRESTOLITE | MUX6302 |
| PRESTOLITE | MMD4001 |
| PRESTOLITE | 46-3523 |
| RAMSEY WINCH | 458002 |
| RAMSEY WINCH | 458005 |
| RCP | 26227A |
| REFERENCE NUMBER | M-3300-24V |
| REFERENCE NUMBER | PS534-24V |
| WESTERN MOTORS | W-8956 |
| WILSON | 94-06-1821 |
| WILSON HD | 94-06-1821 |
| WOOD AUTO | TLM2006 |
