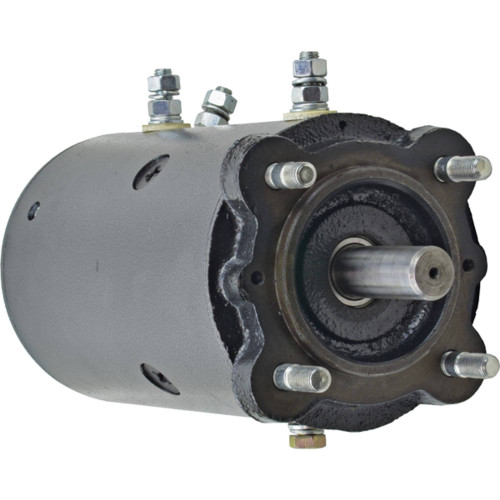

NEW Winch Motor for RAMSEY & PIERCE WINCH Applications; LRW0017, 430-20069, W-7643, 458108, 458001, P5-534, M-3300
$199.99
Specifications
| UNIT TYPE | Winch Motor |
| CRITICAL NOTE | Aftermarket units may differ in Configurationand Length from the OEM units. Please review the specifications to assure proper fitment. |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 4.470 kw |
| HP | 5.994 |
| ROTATION DIRECTION | Reversible |
| OD | 115 mm |
| OD | 4.528″ |
| SHAFT OD | 0.736″ |
| SHAFT OD | 18.700mm |
| LENGTH | 248 mm |
| LENGTH | 9.764″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | Double Ball Bearing, Mounting Plate Includes (4) 3/8-24 Threaded Studs |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0017 |
| J&N | 430-20069 |
| REFERENCE NUMBERS | 458108, 458001, P5-534, M-3300, 30516, 540-001, 645041, 79017 |
| WESTERN MOTOR MFG. | W-7643, W-8933, W-9133, W-6900, W7643, W-9144 |
