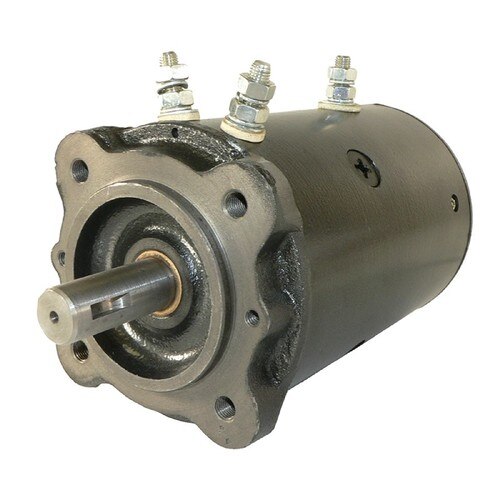

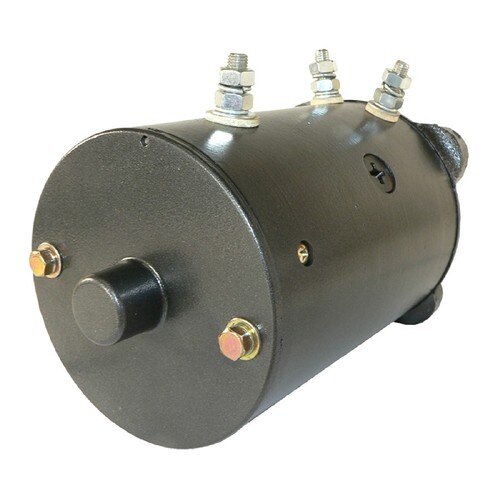

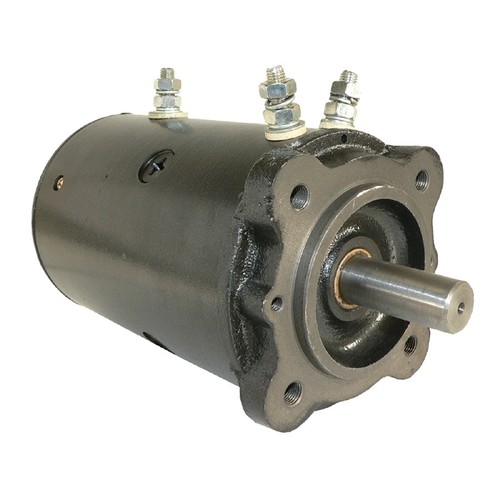

NEW Winch Motor for RAMSEY, TULSA, LIFTMORE & PIERCE SALES Applications; 430-20000, 20049, 458001, 458094, M3300; LESTER 5686, 5687
$179.99
Specifications
| UNIT TYPE | Winch Motor |
| CRITICAL NOTE | Aftermarket Units may differ In Configuration And Length from the OEM Units. Please review the Specifications to assure Proper Fitment. |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Reversible |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 236.500 mm |
| LENGTH | 9.311″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | Mounting Plate Includes: (4) 3/8-24 Threaded Mounting Holes This Motor has (2) & (1) Terminal Configuration; the Prestolite Motor has Inline Terminal Configuration |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0001 |
| J & N | 430-20000, 430-20032, 430-20036, 430-20092, 430-20097 |
| LESTER | 5686, 5687 |
| EMS | W-8933 |
| MINNPAR | 67-2163 |
| OTHER OEMS | T200-2 |
| PRESTOLITE | 46-103, 46-2062, 46-2097, 46-2099, 46-2282, 46-2283, 46-2285, 46-2287, 46-2287RM, 46-2391, 46-2401, 46-2426, 46-2636, 46-339, 46-4157, MBJ4201, MBJ4202, MBJ4204, MBJ4207, MBJ4209, MBJ4402, MBJ4403, MBJ4405, MBJ4407, MBJ4410, MBJ4411, MBJ4412, MBJ4415, MBJ6201, MBJ6302, MMD4402 |
| RAMSEY WINCH | 20049, 458001, 458094 |
| WAI | 82-6868-3 |
| WAI | 5687N-DB |
| WAI (OLD) | 5687N |
| WAI (OLD) | 82-6868-3 |
| WESTERN MOTORS | W-8933 |
| WESTERN PLOW | M3300 |
Applications
Part fit
| MAKE | MODEL | YEAR |
| LIFTMORE | Various Models | 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984 |
| RAMSEY | Various Models | |
