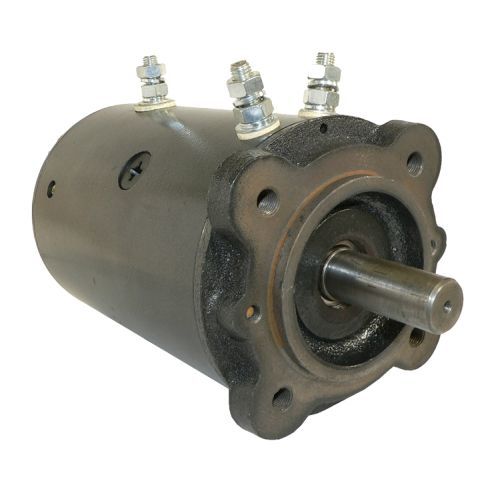

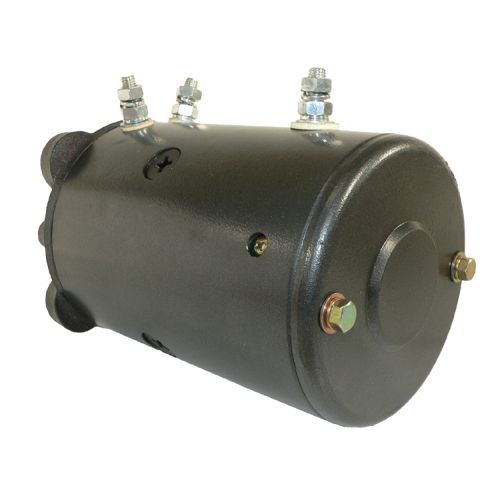

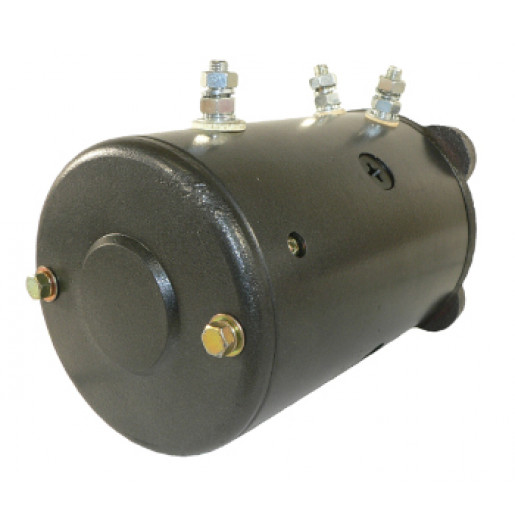

NEW Winch Motor for RAMSEY, TULSA, LIFTMORE & PIERCE SALES Applications; 430-20032, MBJ6302, W-9143; LESTER 5687-DBB
$194.99
Specifications
| UNIT TYPE | Winch Motor |
| CRITICAL NOTE | Aftermarket Units may differ In Configuration And Length from the OEM Units. Please review the Specifications to assure Proper Fitment. |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| CONDITION | New |
| ROTATION DIRECTION | Reversible |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 236.500 mm |
| LENGTH | 9.311″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | Double Ball Bearing, Mounting Plate with (4) 3/8-24 Threaded Mounting Holes, This motor has (2) & (1) Terminal Configuration; Prestolite Version has Inline Terminal Configuration |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0003 |
| J & N | 430-20000, 430-20032, 430-20036, 430-20092, 430-20097 |
| LESTER | 5687-DBB |
| EMS | 5687-DBBN |
| MINNPAR | 67-2165 |
| PRESTOLITE | MBJ6302 |
| WAI | 82-6868-1 |
| WAI | 5687N-DB |
| WAI (OLD) | 82-6868-1 |
| WESTERN MOTORS | W-9143 |
