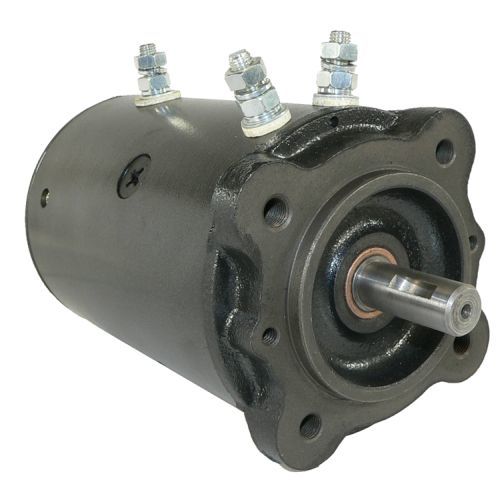

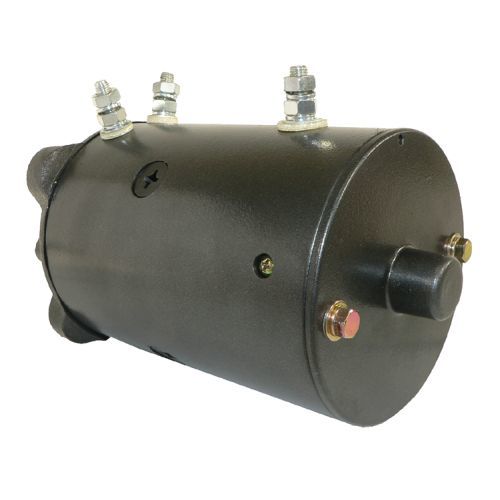

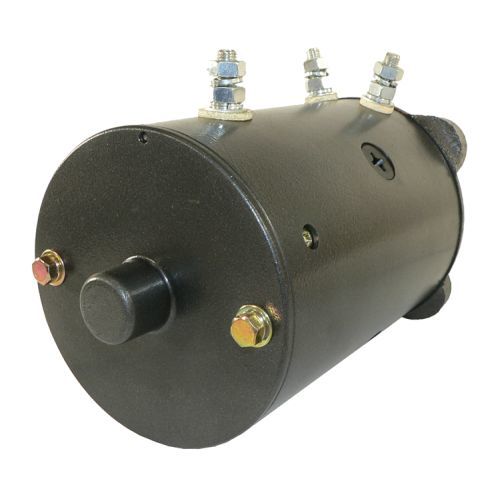

NEW Winch Motor for RUGER EQUIPMENT, REDWOOD RELIANCE & RELIANCE TRAILER Applications; 430-20030, 16-510, 16-700, 46-2097, 46-2286, MBJ4208, MBJ4406; LESTER 10754
$199.99
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| CRITICAL NOTE | Aftermarket Units may Differ In Configuration & Length from the OEM units; Please Review The Specifications to assure proper fitment. |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Reversible |
| OD | 114.900 mm |
| OD | 4.524″ |
| SHAFT OD | 0.622″ |
| SHAFT OD | 15.800mm |
| LENGTH | 236.500 mm |
| LENGTH | 9.311″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | Mounting Plate Includes (4) 3/8-24 Threaded Mounting Holes, J&N Motor has 2 and 1 Terminal Configuration
USED ON: RUGER EQUIPMENT, CRANES, ETC. |
