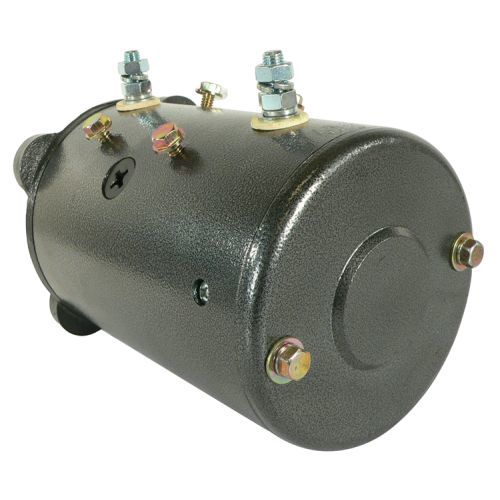

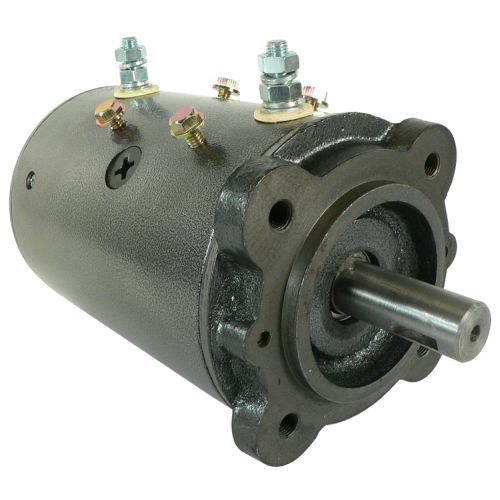

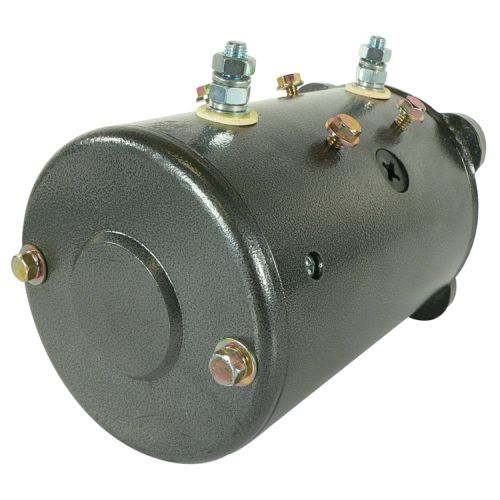

NEW Winch Motor for SKYHOOK, DOUGLAS MOTORS, WILSON TRAILERS Applications; 430-20020, 46-436, MDE4001, W-8925; LESTER 6026, 6026-DBB
$194.99
SLOWER AND SOFT RESPONSE
FOR USE WITH SIGN AND BOOM ARM TRUCKS
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Reversible |
| OD | 114.800 mm |
| OD | 4.520″ |
| SHAFT OD | 0.748″ |
| SHAFT OD | 19mm |
| LENGTH | 222.100 mm |
| LENGTH | 8.744″ |
| TERMINAL 2 SIZE | 5/16/2024 |
| TERMINAL 3 SIZE | 5/16/2024 |
| SHAFT | Includes Keyway |
| WARRANTY | 1 Year |
| ADD’L INFO | Double Bearing Unit Set Up For Multiple Solenoid Positions
USED ON: SKYHOOK, DOUGLAS MOTORS |
