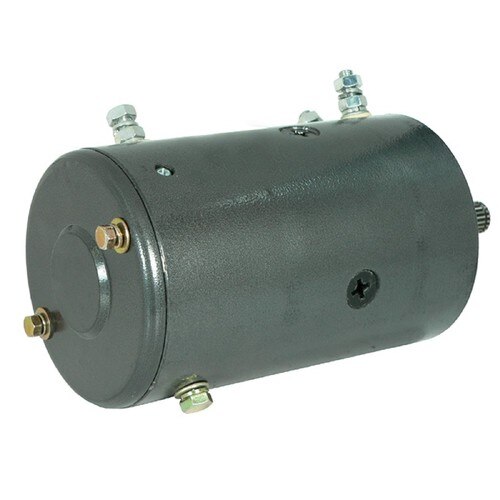

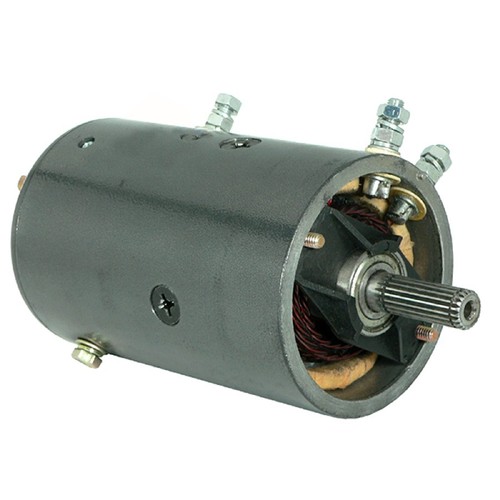

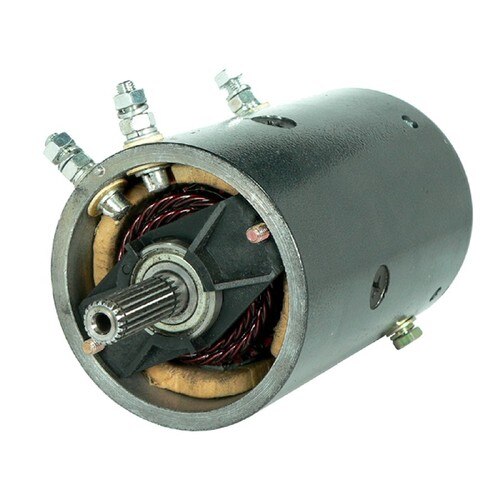

NEW Winch Motor for WARN INDUSTRIES, SMITH INDUSTRIES & SUPERWINCH Applications; 430-22144, 26651, 39972, 39983, MRJ2506; LESTER 10783
$199.99
Specifications
| UNIT TYPE | Winch Motor |
| CURRENT TYPE | DC |
| VOLT | 24 |
| ROTATION DIRECTION | Reversible |
| OD | 171.400 mm |
| OD | 6.748″ |
| SHAFT OD | 0.654″ |
| SHAFT OD | 16.600mm |
| LENGTH | 237 mm |
| LENGTH | 9.331″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| TERMINAL 4 SIZE | 5/16-24 |
| NUMBER OF FIELDS | 4 |
| WARRANTY | 1 Year |
| ADD’L INFO | 20 Spline Shaft, Double Ball Bearing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LRW0014 |
| J & N | 430-22144 |
| LEECE NEVILLE | MRJ2506 |
| LESTER | 10783 |
| EMS | 160-937AN |
| PRESTOLITE | MRJ2506 |
| WAI | 10783N |
| WARN WINCH | 26651 |
| WARN WINCH | 39972 |
| WARN WINCH | 39983 |
