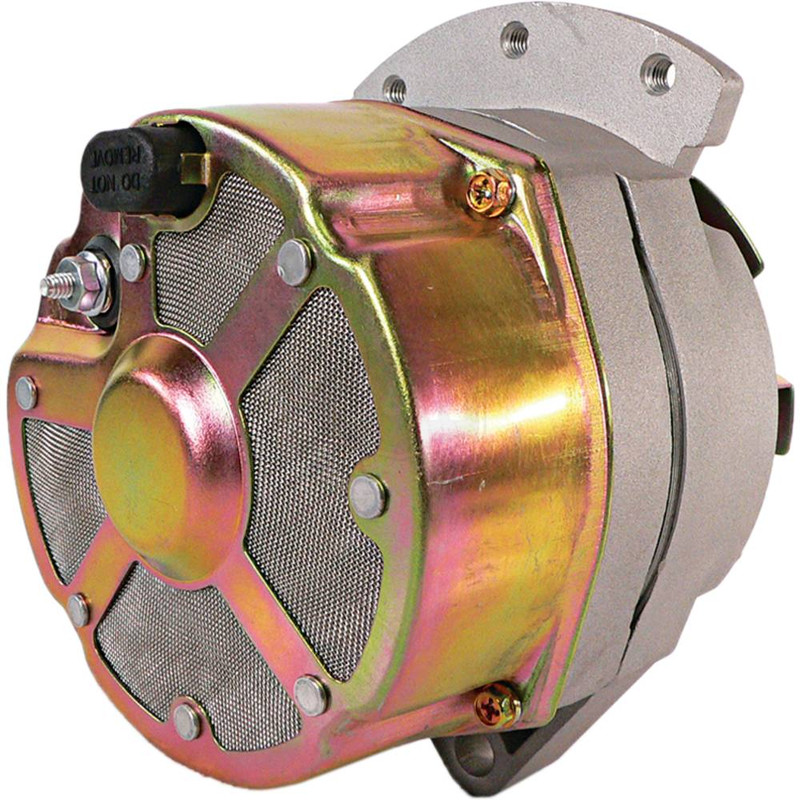

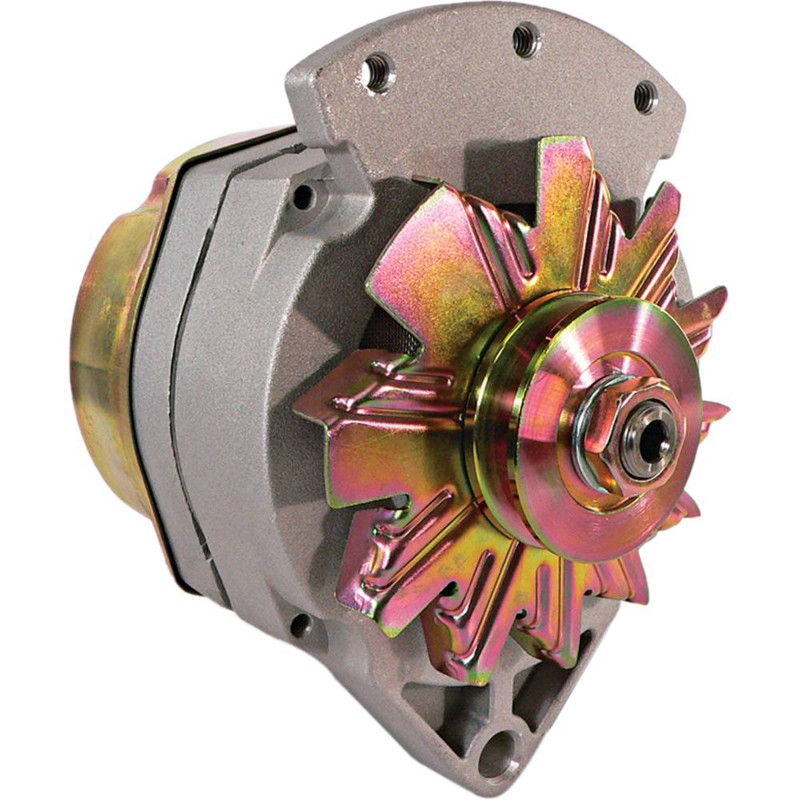

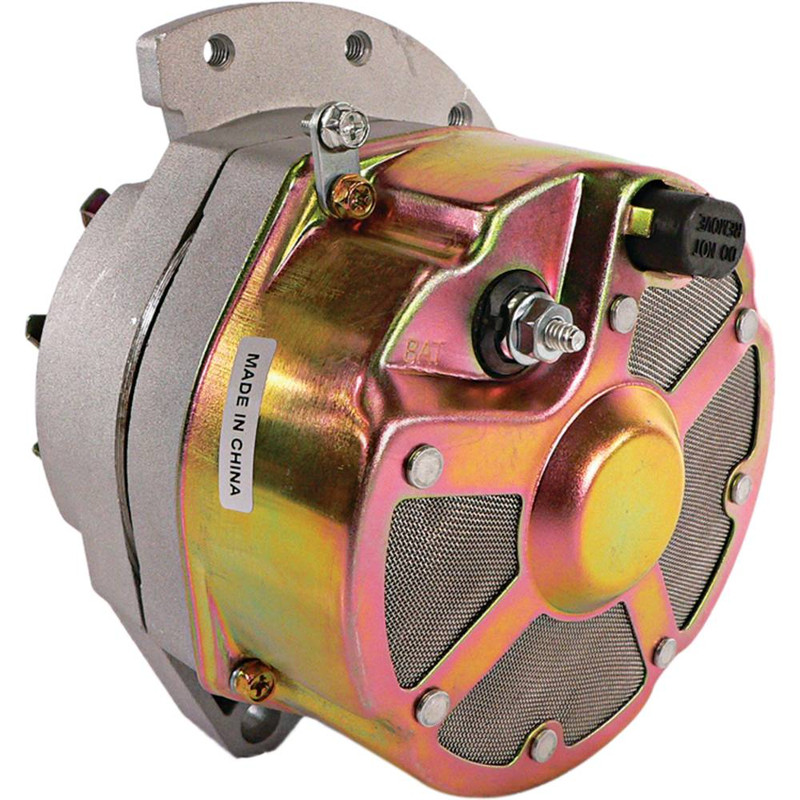

NEW 1-Wire 10SI Type Alternator for Motorola & Prestolite Applications; 400-20011, 70-01-8904, 70-01-8905; LESTER 8904, 8905
$178.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Delco 10SI |
| NOTES | 1-Wire, Universal Replacement for Motorola & Prestolite Alternators, Spark Arrestor Screens for Marine Applications, Adaptable to Applications Requiring 2″ & 3″ Mounting Feet |
| VOLT | 12 |
| AMPS | 94 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | (3) x 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.433″ |
| MOUNTING EAR THICKNESS | 11mm |
| MOUNTING EAR 2 THICKNESS | 1.031″ |
| MOUNTING EAR 2 THICKNESS | 26.200mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 12-24 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.382″ |
| PULLEY OUTER DIAMETER | 60.500mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ADR0396, ADR0397 |
| EMP | 4-1055XMP |
| J&N | 400-20004, 400-20011 |
| LESTER | 8904, 8905 |
| WILSON | 70-01-8904, 70-01-8905 |
