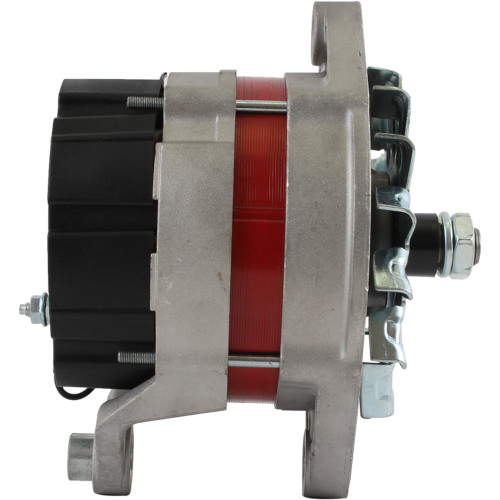

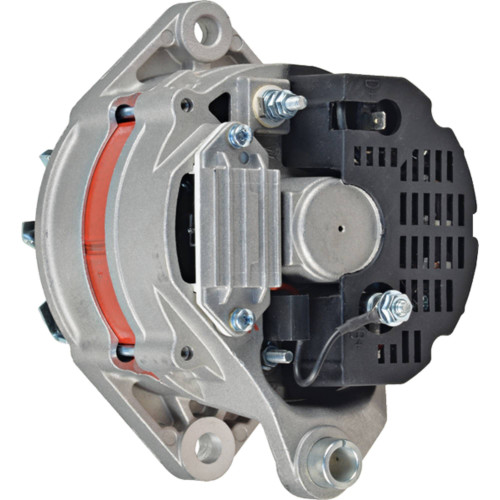

NEW Alternator for AGCO, CASE IH & NEW HOLLAND Applications; 400-29012, 72269301, 72272430, 72275034, 72277319, 500322671, 500322762, 99461495; LESTER 12281, 12581, 12583, 20750
$159.99
Includes Fan
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 12 |
| AMPS | 65 |
| MOUNT HOLE ID 1 | 10.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| AGCO | 72269301, 72272430, 72275034, 72277319 |
| ARROWHEAD | IA0463, MG515 |
| ATLANTIC QUALITY PARTS | 1100-0527 |
| DELCO | 19025046, DRA0970, DRA3284, DRA3288, DRA4640, DRA6230 |
| FIAT | 4808503, 4808504, 4808506, 4841776, 7552382 |
| FORD/NEW HOLLAND | 500322671, 500322762, 500322763, 500322764, 84522025, 99478834, R013240 |
| IVECO | 99461495 |
| J&N ELECTRICAL PRODUCTS | 400-41005 |
| LESTER | 12281, 12581, 12583, 20750 |
| LETRIKA/ISKRA | 11.201.242, 11.201.462, 11.201.463, AAK3562, AAK3563, AAK4102, IA 0463 |
| LUCAS ELECTRIC | LRA00751, LRA01568, LRA01915, LRA02580 |
| MAGNETON | 63321424, 63321502 |
| MAHLE | 11.201.242, 11.201.462, AAK3563, AAK4102, IA0463, MG515 |
| MARELLI | 063320037010, 063321040010, 063321079010, 063321428010, 63320013, 63320020, 63320023, 63320100, 63320124, 63320126, 63321042, 63321180, 63321428, 63321458, MAN283, MAN770, MAN795 |
| SAME | 294393200, 29439320010, 294393700, 294394000, 294394200, 294395500, 294395700, 46384533 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Agco | 4650 4WD | 3-190 Same Diesel | |
| Agco | 4650 | 3-190 Same Diesel | |
| Agco | 4660 | 3-190 Same Diesel | |
| Agco | 5650 | 3-183 Same Diesel | |
| Agco | 5660 | 3-183 Same Diesel | |
| Agco | 5670 | 4-244 Same Diesel | |
| Agco | 5680 | 4-244 Same Diesel | |
| Agco | 6045 | 1000.3WT Diesel | |
| Agco | 6065 | 1000.4WT Diesel | |
| Agco | 6085 | 1000.4WT Diesel | |
| Agco | 6670 | 4-244 Same Diesel | |
| Agco | 6680 | 4-244 Same Diesel | |
| Agco | 6690 | 4-244 Same Diesel | |
| Agco | 7600 | 5-317 Same Diesel | |
| Agco | 7630 | 6-380 Same Diesel | |
| Agco | 7650 | 6-380 Same Diesel | |
| Agco | 8630 | 6-366 Same Diesel | |
| Agco | GT45 4WD | SDF 3-183 Diesel | |
| Agco | GT45 | SDF 3-183 Diesel | |
| Agco | GT45A 4WD | SDF 3-183 Diesel | |
| Agco | GT45A | SDF 3-183 Diesel | |
| Agco | GT55 4WD | SDF 3-183 Diesel | |
| Agco | GT55 | SDF 3-183 Diesel | |
| Agco | GT55A 4WD | SDF 3-183 Diesel | |
| Agco | GT55A | SDF 3-183 Diesel | |
| Agco | GT65 4WD | SDF 4-244 Diesel | |
| Agco | GT65 | SDF 4-244 Diesel | |
| Agco | GT65A 4WD | SDF 4-244 Diesel | |
| Agco | GT65A | SDF 4-244 Diesel | |
| Agco | GT75 4WD | SDF 4-244 Diesel | |
| Agco | GT75 | SDF 4-244 Diesel | |
| Agco | GT75A 4WD | SDF 4-244 Diesel | |
| Agco | GT75A | SDF 4-244 Diesel | |
| Case/International Harvester | 2120 | 3-183 Diesel | 1990, 1991, 1992 |
| Case/International Harvester | 2130 | 3-183 Diesel | 1990, 1991, 1992 |
| Case/International Harvester | 2140 | 4-244 Diesel | 1990, 1991, 1992 |
| Case/International Harvester | 2150 | 4-244 Diesel | 1990, 1991, 1992 |
| Case/International Harvester | JX100U | Iveco 4-239 Diesel | |
| Case/International Harvester | JX1070N | 3-179 Diesel | 2004, 2005, 2006, 2007, 2008 |
| Case/International Harvester | JX1070N | Iveco 3-179 Diesel | 2004, 2005, 2006, 2007, 2008 |
| Case/International Harvester | JX1075N | 3-179 Diesel | 2004, 2005, 2006, 2007, 2008 |
| Case/International Harvester | JX1075N | Iveco 3-179 Diesel | 2004, 2005, 2006, 2007, 2008 |
| Case/International Harvester | JX1095N | 3-179 Diesel | 2005, 2006, 2007, 2008 |
| Case/International Harvester | JX1095N | 2005, 2006, 2007, 2008 | |
| Case/International Harvester | JX55 | 3-165 Diesel | 2002, 2003, 2004, 2005, 2006 |
| Case/International Harvester | JX55 | Iveco 3-165 Diesel | 2002, 2003, 2004, 2005, 2006 |
| Case/International Harvester | JX60 | 3-179 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX60 | Iveco 3-179 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX65 | 3-179 Diesel | 2002 |
| Case/International Harvester | JX65 | Iveco 3-179 Diesel | |
| Case/International Harvester | JX70 | 3-179 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX70 | Iveco 3-179 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX70U | ||
| Case/International Harvester | JX80 | 4-239 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX80 | Iveco 4-239 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX80U | Iveco 4-239 Diesel | |
| Case/International Harvester | JX85 | 4-239 Diesel | 2002, 2003, 2004, 2005, 2006 |
| Case/International Harvester | JX85 | Iveco 4-239 Diesel | 2002, 2003, 2004, 2005, 2006 |
| Case/International Harvester | JX90 | 4-239 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX90 | Iveco 4-239 Diesel | 2006, 2007, 2008 |
| Case/International Harvester | JX90U | Iveco 4-239 Diesel | 2002, 2003, 2004, 2005, 2006 |
| Case/International Harvester | JX95 | 4-239 Diesel | 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| Case/International Harvester | JX95 | Iveco 4-239 Diesel | 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| New Holland | 3830 | 3-165 Ford Diesel | 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| New Holland | 4030 | 179ci – 3cyl Fiat Diesel | 1992, 1993, 1994, 1995, 1996 |
| New Holland | 4230 | 220ci -4cyl Fiat Diesel | 1992, 1993, 1994, 1995, 1996 |
| New Holland | 4330V | 6-220 Ford Diesel | 1996, 1997, 1998, 1999, 2000 |
| New Holland | 4430N | 4-238 Ford Diesel | 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
| New Holland | 4430V | 4-220 Ford Diesel | 1997, 1998 |
| New Holland | 4635 | 179ci – 3cyl Fiat Diesel | 1996, 1997, 1998, 1999 |
| New Holland | 4835 | 220ci – 4cyl Fiat Diesel | 1995, 1996, 1997, 1998 |
| New Holland | LB75 | ||
| New Holland | TD55D | 55HP Diesel | |
| New Holland | TD60D | 60HP Diesel | |
| New Holland | TD70D | 2.9L 3cyl 51HP Diesel | |
| New Holland | TD75D | 3.9L 4cyl 72HP Diesel | |
| New Holland | TD80D | 3.9L 4cyl 72HP Diesel | |
| New Holland | TD90D | 3.9L 4cyl 90HP Diesel | |
| New Holland | TK76 | 3.6L 71HP NH Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TK85 | 3.9L 80HP NH Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TK85M | 3.9L 80HP NH Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TL100 | 3.9L 4cyl 100HP Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TL70 | 3.6L 4cyl 70HP Diesel | 1999, 2000, 2001 |
| New Holland | TL80 | 3.9L 4cyl 80HP Diesel | 1999, 2000, 2001, 2002, 2003 |
| New Holland | TL90 | 3.9L 4cyl 90HP Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TN55 | 2.9L NH 50HP Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TN55D S | 2.9L NH 50HP Diesel | 1999, 2000, 2001, 2002, 2003, 2004 |
| New Holland | TN60A DA SA | 2.9L NH 57HP Diesel | |
| New Holland | TN60VA | 2.9L NH 57HP Diesel | |
| New Holland | TN65V | 2.9L NH 65HP Diesel | 2000, 2001, 2002, 2003, 2004 |
| New Holland | TN70 | 2.9L NH 67HP Diesel | 1999, 2000, 2001, 2002, 2003 |
| New Holland | TN70F | 2.9L NH 67HP Diesel | 2001, 2002, 2003, 2004 |
| New Holland | TN70VA | 2.9L NH 67HP Diesel | |
| New Holland | TN75 | 2.9L NH 75HP Diesel | 2000, 2001, 2002, 2003 |
| New Holland | TN75F | 2.9L NH 75HP Diesel | 1997, 1998, 1999, 2000, 2001 |
| New Holland | TN75V | 2.9L NH 75HP Diesel | 2000, 2001, 2002, 2003, 2004 |
| New Holland | TN75VA | 2.9L NH 75HP Diesel | |
| New Holland | TN80F | 2.9L NH 80HP Diesel | 2001, 2002, 2003, 2004 |
| New Holland | TN90F | 3.9L NH 88HP Diesel | 1997, 1998, 1999, 2000, 2001 |
| New Holland | TN95F | 3.9L NH 95HP Diesel | 2001, 2002, 2003, 2004 |
| New Holland | TN95VA | 3.9L NH 95HP Diesel |
