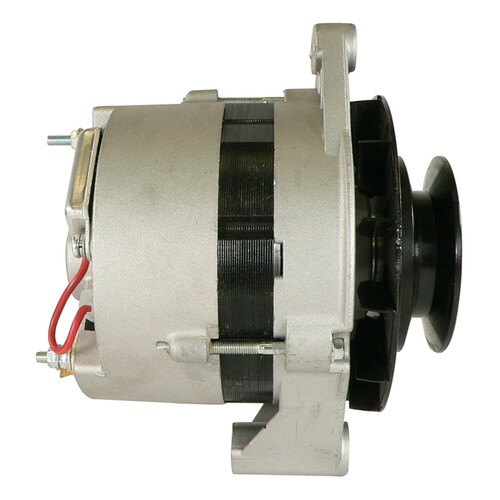

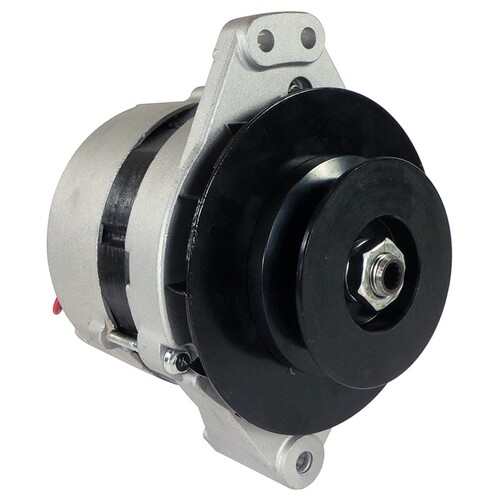

NEW Alternator for ATLAS COPCO XAS90, INGERSOLL RAND 185, JOHN DEERE 240 & 250 Series, 8875 Applications; 400-42000, RE500502, RE57960, RE57961, 443-113-515-765, 443-113-515-768; LESTER 12140

$179.99

Email
Categories: , , ,

Specifications

Unit Type Alternator
VOLT 12
AMPS 55
REGULATOR CLOCK 2:00
ROTATION DIRECTION Clockwise
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
MOUNT HOLE ID 1 8.300mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 8.300mm
MOUNT HOLE 3 TYPE Unthreaded
POLARITY Negative
NUMBER OF GROOVES 1
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 3.343″/ 84.900mm



Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD 400-42011, AMP0001
ATLANTIC QUALITY PARTS 1400-0543
J&N 400-42000, 400-42008, 400-42011
JANNCO 400-42000R
JOHN DEER RE500502, RE57960, RE57961
MAGNETON 443-113-515-765, 443-113-515-768, 443-113-516-760, 443-113-516-761, 443-113-516-762, 443-113-516-763, 443-113-516-764, 443-113-516-765, 443-115-516-762, 443-116-516-763, 9-515-511, 9-516-762, 9-516-763, 9516765, 9-516-765

Applications

MAKE MODEL ENGINE YEAR</td>
Atlas Copco XAS90 4039 Diesel , Diese 1997
Atlas Copco XAS90 4039 J.Deer
Ingersoll Rand 185 John Deere Engine 1996, 1997
Ingersoll Rand 185 1996, 1997
John Deere 2.9L Code 3106, 12, 1
John Deere 2.9L Code 3117, 21, 2
John Deere 2.9L Engine Code 3106 12 1
John Deere 2.9L Engine Code 3117 21 2
John Deere 240 Series II JD 3029D 53HP Engin
John Deere 240 Series II JD 3029D 53HP Engin
John Deere 240 46HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 240 46HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 240 46HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 240 JD 3029D 46HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 240 JD 3029D 46HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 250 Series II JD 3029T 64.4HP Engin
John Deere 250 Series II JD 3029T 64.4HP Engin
John Deere 250 61HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 250 61HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 250 61HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 250 JD 3029T 61HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 250 JD 3029T 61HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 260 Series II JD 3029T 72.4HP Engin
John Deere 260 Series II JD 3029T 72.4HP Engin
John Deere 260 69HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 260 69HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 260 69HP 3029 1999, 2000, 2001, 2002, 2003, 2004
John Deere 260 JD 3029T 69HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 260 JD 3029T 69HP Engin 1999, 2000, 2001, 2002, 2003, 2004
John Deere 4400 Telescopic Al
John Deere 4400 Telescopic
John Deere 4500 Telescopic Al
John Deere 4500 Telescopic
John Deere 8875 61HP Diesel Turbocharged , Diese 1994, 1995, 1996, 1997, 1998
John Deere 8875 JD 61HP Turbo Ds 1994, 1995, 1996, 1997, 1998
John Deere CD3029DF 310
John Deere CD3029DF 311
John Deere CD3029DF Genset – Code 310
John Deere CD3029DF Genset – Code 311
John Deere CD4039DF / TF Genset – Code 310
John Deere CD4039DF 310
John Deere CD4039TF 310
John Deere CD4045TF 310
John Deere CD4045TF Genset – Code 310
John Deere CD6059TF 310
John Deere CD6059TF Genset – Code 310
John Deere CD6068TF 310
John Deere CD6068TF Genset – Code 310
