New VALEO Alternator for AUDI & VOLKSWAGEN Applications; VLS-439312, 2542237, 2542237D, 2542949, 2579147, 437317, 439312, 542237, 542949, SG12B015 SP, SG12B015, SG12B090; LESTER 13853, 13947
December 21, 2019
NEW Alternator for AUDI & VOLKSWAGEN Applications; 400-40028, 2542233, 2542233A, 437178, 439265, SG12B011, 078-903-016H; LESTER 13932
December 21, 2019

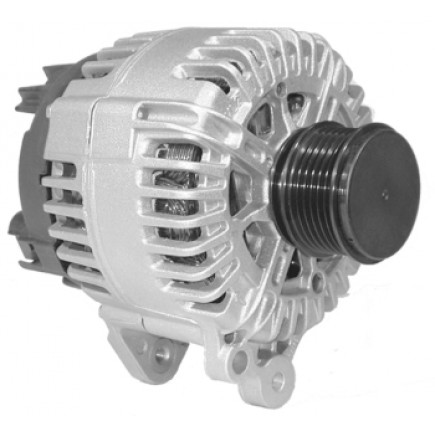

NEW Alternator for AUDI & VOLKSWAGEN Applications; 400-40109, 2542695, 2542898, 2543282, 437454, 437526, 439489, 439534, TG14C011, TG14C015, TG14C01606F-903-023C, 06F-903-023H, 06F-903-023HX; LESTER 11149
$269.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 140 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 8.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | M8x1.25 |
| MOUNT HOLE 4 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.543″ |
| MOUNTING EAR THICKNESS | 13.800mm |
| MOUNTING EAR 2 THICKNESS | 0.787″ |
| MOUNTING EAR 2 THICKNESS | 20mm |
| MOUNTING EAR 3 THICKNESS | 0.543″ |
| MOUNTING EAR 3 THICKNESS | 13.800mm |
| MOUNTING EAR 4 THICKNESS | 0.787″ |
| MOUNTING EAR 4 THICKNESS | 20mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | FR |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 2.205″ |
| GROOVE OD | 56mm |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.402″ |
| PULLEY OUTER DIAMETER | 61mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AVA0099, IA1164, MG64, V439489 |
| BOSCH | AL0834X |
| J&N ELECTRICAL PRODUCTS | 400-40109 |
| LESTER | 11149 |
| LETRIKA/ISKRA | IA 1164 |
| LUCAS ELECTRIC | LRA02291 |
| MAHLE | MG64 |
| VALEO | 2542695, 2542898, 2543282, 437454, 437526, 439489, 439534, TG14C011, TG14C015, TG14C016 |
| VOLKSWAGEN | 06F-903-023C, 06F-903-023H, 06F-903-023HX |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2006 - 2008 | AUDI | A3 | 2.0L |
| 2009 | AUDI | A3 QUATTRO | 2.0L |
| 2009 | AUDI | TT | 2.0L |
| 2010 - 2012 | AUDI | A3 | 2.0L |
| 2010 | AUDI | A3 | 2.0L DS |
| 2010 | AUDI | TT QUATTRO | 2.0L |
