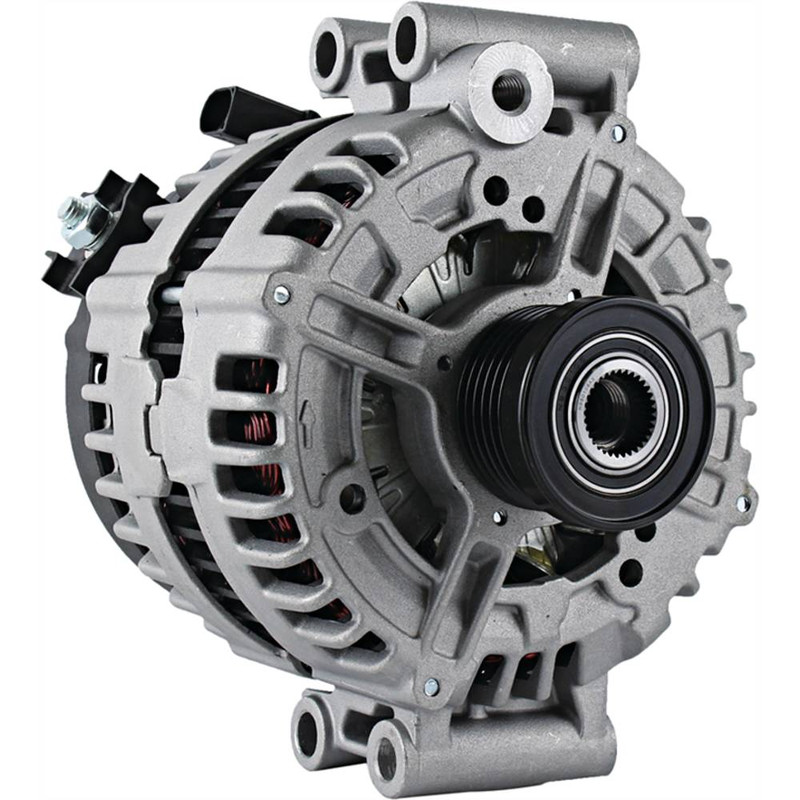

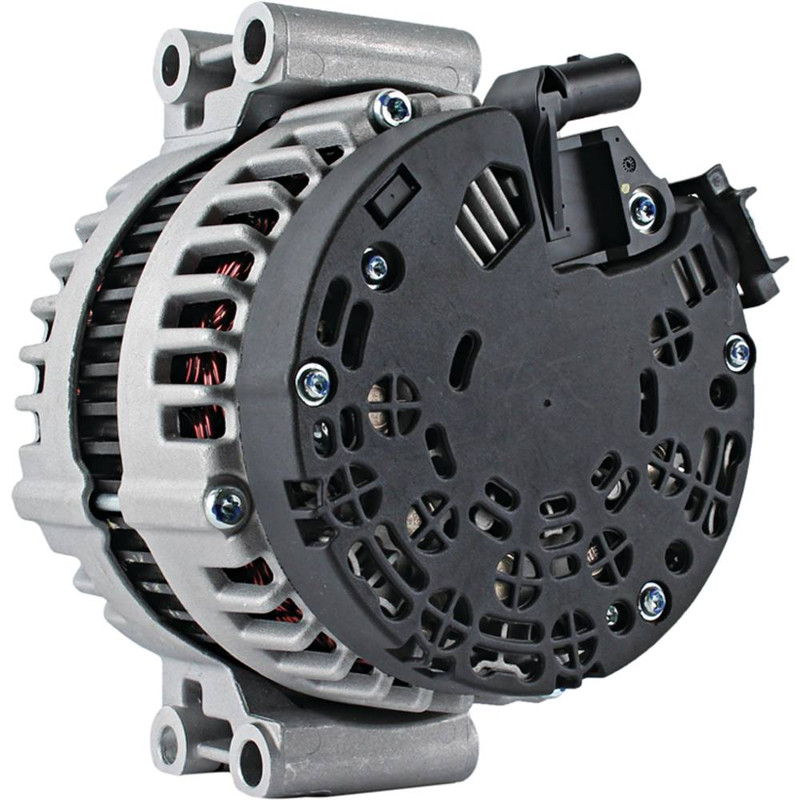

NEW Alternator for BMW 128i, 323i, 328i, 330i, 528i, X3 & X5; 400-24214, 12-31-7-550-968, 12-31-7-551-256, 12-31-7-555-926, 7550967, 7551256; LESTER 11301

$359.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 180
REGULATOR CLOCK 1:00
ROTATION DIRECTION Clockwise
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE ID 2 10.500mm
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 9.500mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNT HOLE ID 4 11mm
MOUNT HOLE 4 TYPE Unthreaded
MOUNTING EAR THICKNESS 2.472″
MOUNTING EAR THICKNESS 62.800mm
MOUNTING EAR 2 THICKNESS 2.472″
MOUNTING EAR 2 THICKNESS 62.800mm
MOUNTING EAR 3 THICKNESS 2.472″
MOUNTING EAR 3 THICKNESS 62.800mm
MOUNTING EAR 4 THICKNESS 2.472″
MOUNTING EAR 4 THICKNESS 62.800mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
POLARITY Negative
NUMBER OF GROOVES 6
PULLEY TYPE Clutch
PULLEY OUTER DIAMETER 2.177″
PULLEY OUTER DIAMETER 55.300mm
WARRANTY 1 Year
Two Pin Plug

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD ABO0391, VBO0391
BMW 12-31-7-550-968, 12-31-7-551-256, 12-31-7-555-926
BOSCH 0121715012, 0-121-715-012, 0121715112, 0-121-715-112, 0986048820, 0986048827, AL0841N, AL0841X
J&N ELECTRICAL PRODUCTS 400-24214, 400-24287
LESTER 11301
LUCAS ELECTRIC LRA02970, LRA2970
STEYR 7550967, 7551256

Applications

Part fit

MAKE MODEL ENGINE YEAR
BMW 128i 3.0L N5 2008, 2009, 2010
BMW 128i 3.0L N5 2011, 2012, 2013
BMW 128i 3.0L N52 2008, 2009, 2010
BMW 128i 3.0L N52 2011, 2012, 2013
BMW 128i 2996cc, 3.0L L6 2008, 2009, 2010, 2011, 2012
BMW 128i 2996cc, 3.0L L6 2008, 2009, 2010, 2011, 2012, 2013
BMW 128i 2996cc, 3.0L L6 2013
BMW 323i 2.5L N52 2007
BMW 323i 2.5L N52 2008, 2009
BMW 323i 2494cc, 2.5L/152CI L6 2007
BMW 323i 2494cc, 2.5L/152CI L6 2007, 2008, 2009
BMW 323i 2497cc, 2.5L L6 2007
BMW 323i 2497cc, 2.5L L6 2007, 2008, 2009
BMW 328i 3.0L N5 2007, 2008, 2009, 2010
BMW 328i 3.0L N5 2011, 2012, 2013
BMW 328i 3.0L N52 2007, 2008, 2009, 2010
BMW 328i 3.0L N52 2011, 2012, 2013
BMW 328i 2996cc, 3.0L L6 2007, 2008, 2009, 2010, 2011, 2012
BMW 328i 2996cc, 3.0L L6 2007, 2008, 2009, 2010, 2011, 2012, 2013
BMW 328i 2996cc, 3.0L L6 2013
BMW 328i xDrive 3.0L N5 2009, 2010
BMW 328i xDrive 3.0L N5 2011, 2012, 2013
BMW 328i xDrive 3.0L N52 2009, 2010
BMW 328i xDrive 3.0L N52 2011, 2012, 2013
BMW 328i xDrive 2996cc, 3.0L L6 2009, 2010, 2011, 2012
BMW 328i xDrive 2996cc, 3.0L L6 2009, 2010, 2011, 2012, 2013
BMW 328i xDrive 2996cc, 3.0L L6 2013
BMW 328Xi 3.0L N5 2007, 2008
BMW 328Xi 3.0L N52 2007, 2008
BMW 328xi 2996cc, 3.0L L6 2007, 2008
BMW 330i 2996cc, 3.0L L6 2001, 2002, 2003, 2004, 2005, 2006
BMW 330xi 2996cc, 3.0L L6 2006
BMW 528i 3.0L N52 2008
BMW 528i 3.0L N52 2009, 2010
BMW 528i 2996cc, 3.0L L6 2008, 2009, 2010
BMW 528i xDrive 3.0L N52 2009, 2010
BMW 528i xDrive 2996cc, 3.0L L6 2009, 2010
BMW 528Xi 3.0L N52 2008
BMW 528xi 2996cc, 3.0L L6 2008
BMW X3 2979cc, 3.0L L6 2007, 2008, 2009, 2010
BMW X3 2996cc, 3.0L L6 N52 2007, 2008, 2009, 2010
BMW X3 2996cc, 3.0L L6 N52B30A 2009, 2010
BMW X3 2996cc, 3.0L L6 2007, 2008, 2009, 2010
BMW X3 3.0si 3.0L N5 2007, 2008
BMW X3 xDrive30i 3.0L N5 2009, 2010
BMW X5 2979cc, 3.0L L6 2007, 2008, 2009
BMW X5 2979cc, 3.0L L6 2007, 2008, 2009, 2010
BMW X5 2979cc, 3.0L L6 2010
BMW X5 2996cc, 3.0L L6 N52B30A 2007, 2008, 2009, 2010
BMW X5 2996cc, 3.0L L6 2007, 2008
BMW X5 2996cc, 3.0L L6 , GAS 2009, 2010
BMW X5 3.0is 3.0L N5 2007, 2008
BMW X5 xDrive30i 3.0L N5 2009, 2010
