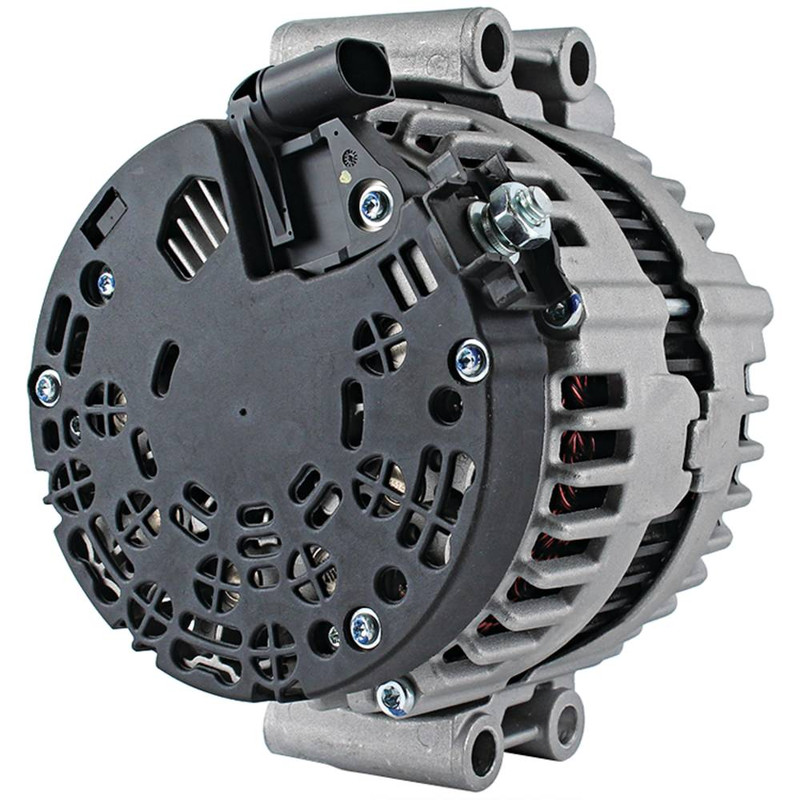

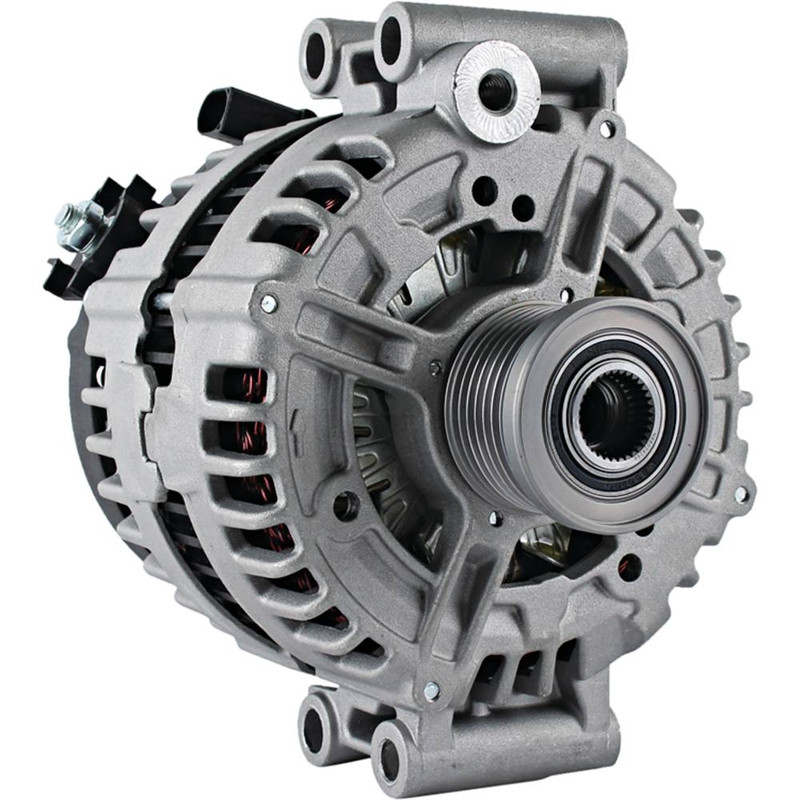

NEW Alternator for BMW 128i,135i, 335i, 535i & Models; 400-24216, 12-31-7-557-789, 12-31-7-558-219, 12-31-7-558-220, 7557789, 7558219; LESTER 11302
$349.99
Specifications
| REGULATOR CLOCK |
9:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE 1 TYPE |
Slotted |
| MOUNT HOLE ID 2 |
10.500mm |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
9mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNT HOLE ID 4 |
10.500mm |
| MOUNT HOLE 4 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
2.480″ |
| MOUNTING EAR THICKNESS |
63mm |
| MOUNTING EAR 2 THICKNESS |
2.480″ |
| MOUNTING EAR 2 THICKNESS |
63mm |
| MOUNTING EAR 3 THICKNESS |
2.480″ |
| MOUNTING EAR 3 THICKNESS |
63mm |
| MOUNTING EAR 4 THICKNESS |
2.480″ |
| MOUNTING EAR 4 THICKNESS |
63mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
COM |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
Dummy |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
7 |
| PULLEY TYPE |
Clutch |
| PULLEY OUTER DIAMETER |
2.197″ |
| PULLEY OUTER DIAMETER |
55.800mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ABO0394, VBO0394 |
| BMW |
12-31-7-557-789, 12-31-7-558-219, 12-31-7-558-220, 7557789, 7558219 |
| BOSCH |
0121715016, 0-121-715-016, 0121715116, 0-121-715-116, 0986048830, 4883, AL0850X |
| J&N ELECTRICAL PRODUCTS |
400-24216, 400-24301 |
| LESTER |
11302 |
| LUCAS ELECTRIC |
LRA03107, LRA3107 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| BMW |
1 Series M |
2979cc, 3.0L L6 |
2011 |
| BMW |
128i |
2996cc, 3.0L L6 N54B30 |
2010 |
| BMW |
135i |
3.0L N5 |
2008, 2009, 2010 |
| BMW |
135i |
2979cc, 3.0L L6 |
2008, 2009, 2010 |
| BMW |
135i |
2996cc, 3.0L L6 N54B30 |
2008, 2009 |
| BMW |
135i Convertible |
2979cc, 3.0L L6 |
2009, 2010 |
| BMW |
135i Coupe |
2979cc, 3.0L L6 |
2009, 2010 |
| BMW |
335i |
3.0L N5 |
2007, 2008, 2009, 2010, 2011 |
| BMW |
335i |
2979cc, 3.0L L6 N54B30 |
2010 |
| BMW |
335i |
2979cc, 3.0L L6 N54B30A |
2007, 2008, 2009, 2010 |
| BMW |
335i |
2979cc, 3.0L L6 |
2007, 2008, 2009, 2010 |
| BMW |
335i xDrive |
3.0L N5 |
2009, 2010, 2011 |
| BMW |
335i xDrive |
2979cc, 3.0L L6 |
2009, 2010 |
| BMW |
335iS |
3.0L N54 |
2011, 2012, 2013 |
| BMW |
335is |
2979cc, 3.0L L6 |
2011, 2012, 2013 |
| BMW |
335Xi |
3.0L N5 |
2007, 2008 |
| BMW |
335xi |
2979cc, 3.0L L6 |
2007, 2008 |
| BMW |
535i |
3.0L N5 |
2008 |
| BMW |
535i |
3.0L N5 |
2009, 2010 |
| BMW |
535i |
2979cc, 3.0L L6 |
2008, 2009, 2010 |
| BMW |
535i |
2979cc, 3.0L L6 |
2010 |
| BMW |
535i xDrive |
3.0L N5 |
2009, 2010 |
| BMW |
535i xDrive |
2979cc, 3.0L L6 |
2009, 2010 |
| BMW |
535Xi |
3.0L N5 |
2008 |
| BMW |
535xi |
2979cc, 3.0L L6 |
2008 |
| BMW |
M1 |
3.0L N54 |
2011, 2012 |
