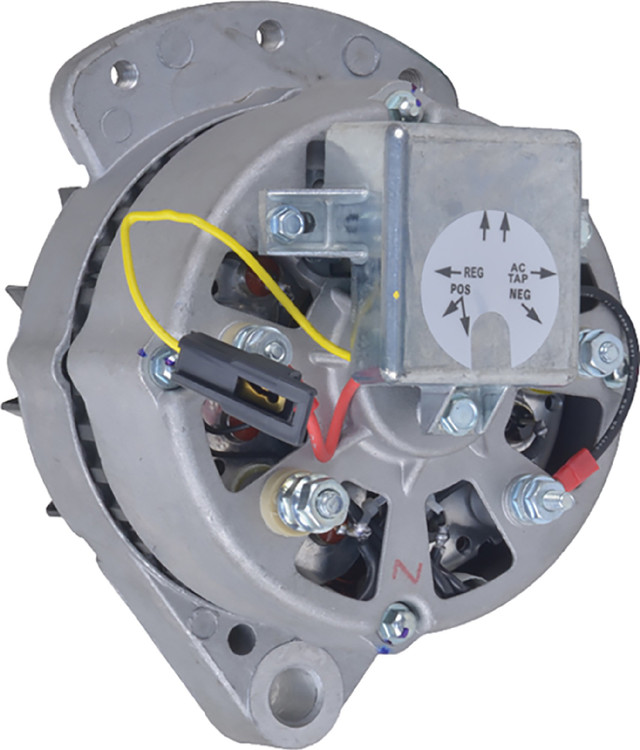

NEW Alternator for Carrier Transicold, Ford/New Holland and OTH Applications; 400-16058, 30-00306, 30-00351, 30-00398
Original price was: $265.20.$244.99Current price is: $244.99. $276.84
LESTER: 7380, 8056, 8611
Specifications
| Specification | Value |
|---|---|
| Family | Leece Neville 8AL/8AR |
| Volt | 12 |
| Amps | 37 |
| Regulator Clock | 12:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 5/16-18 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mounting Ear Thickness | 0.441″ / 11.200mm |
| Mounting Ear 2 Thickness | 1.079″ / 27.400mm |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | 1/4-20 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | 10-24 |
| Terminal ID 4 | AC |
| Terminal 4 Size | 10-24 |
| Terminal ID 5 | B- |
| Terminal 5 Size | 10-24 |
| Polarity | Negative |
| Shaft Pulley OD | 0.630″ / 16mm |
| Shaft | 5/8-18 |
